PP melt blown middle layer filter melt-blown cloth making machine

PP melt blown middle layer filter melt-blown cloth making machine

$40000.00

1-2 Set/Sets
$35000.00

3-4 Set/Sets
$32000.00

≥5 Set/Sets

Port:: shanghai seaport

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	15 Set/Sets per Quarter
Payment Type:	L/C,T/T
Port:	shanghai seaport

Product Description

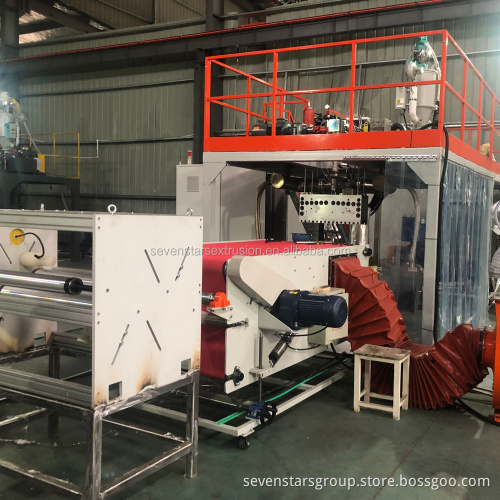

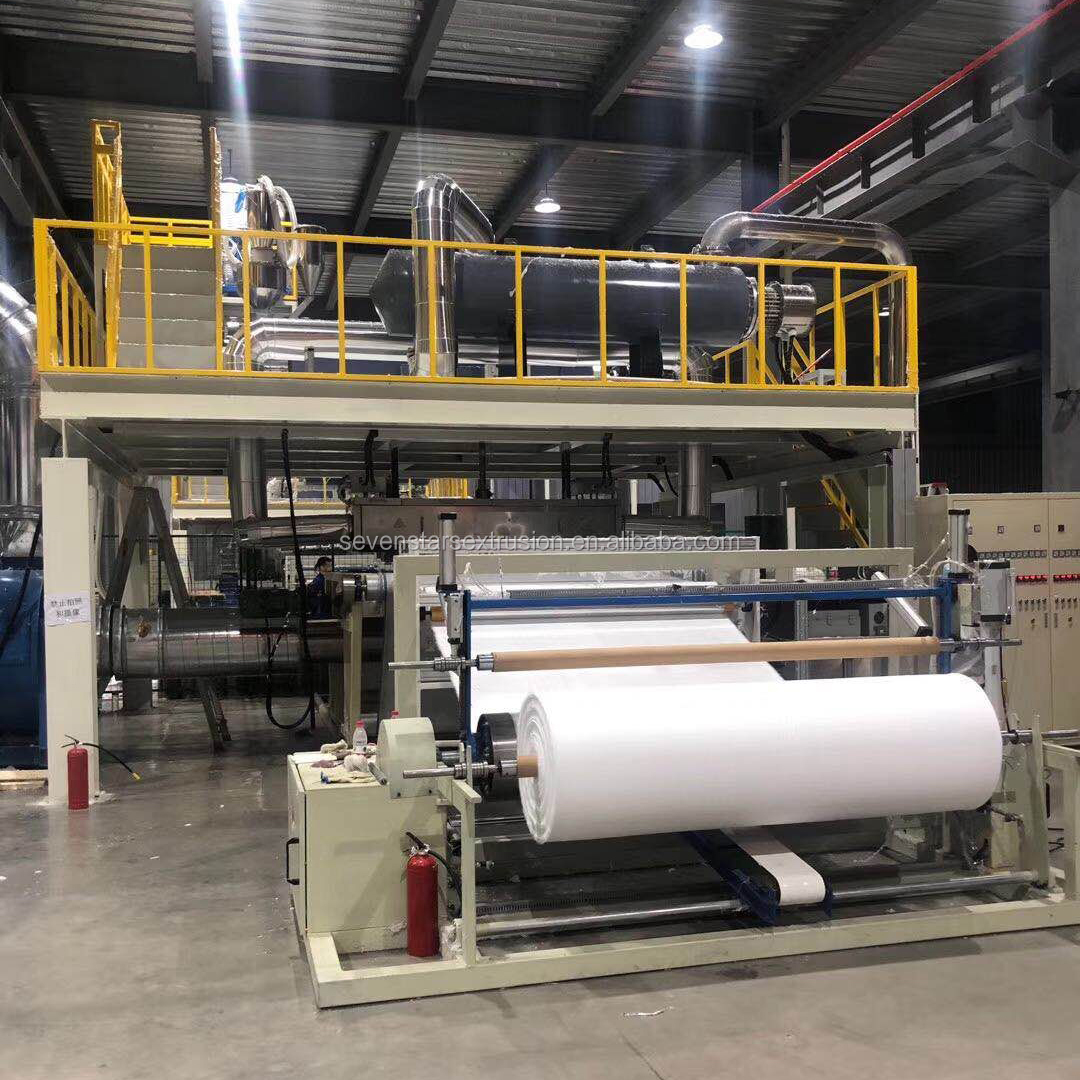

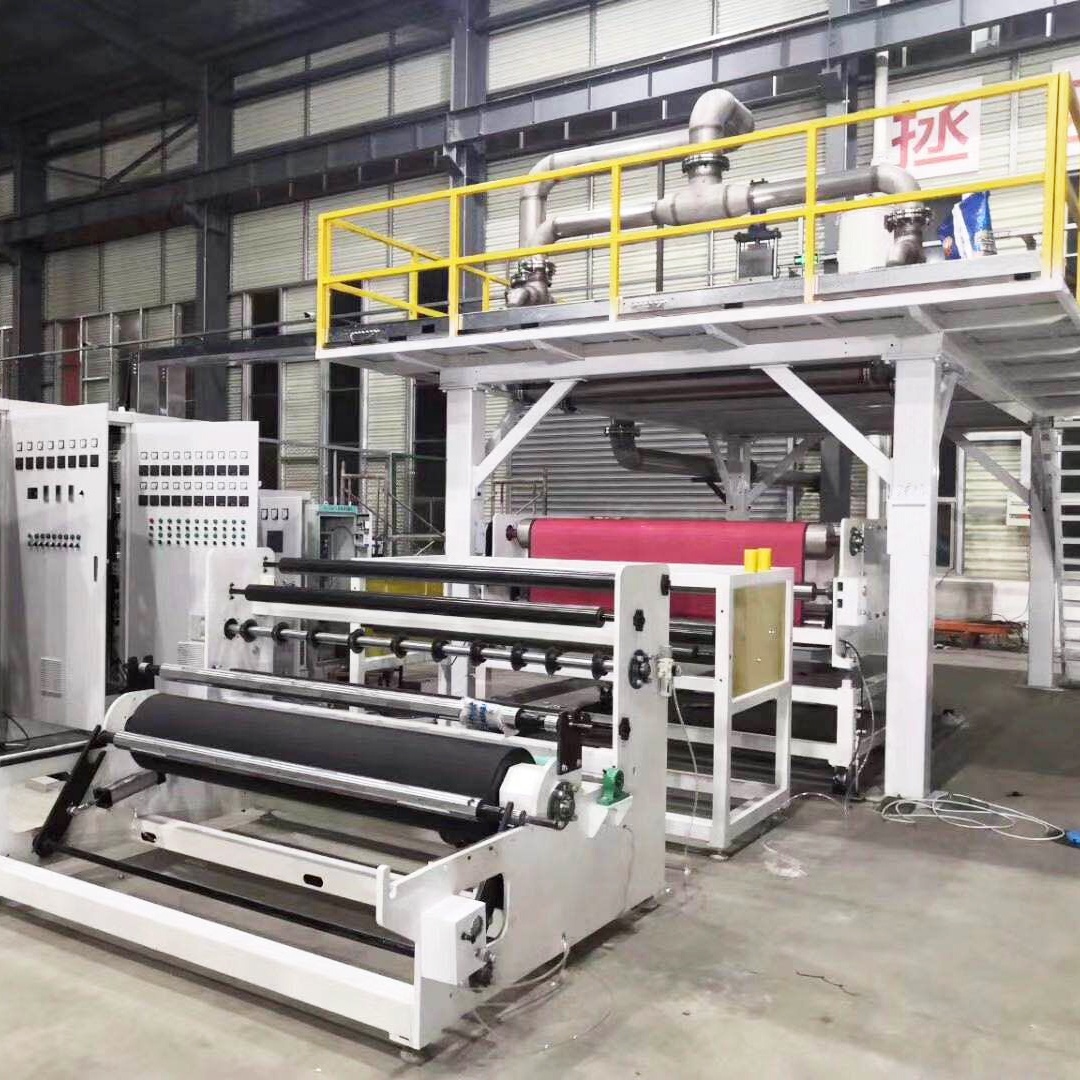

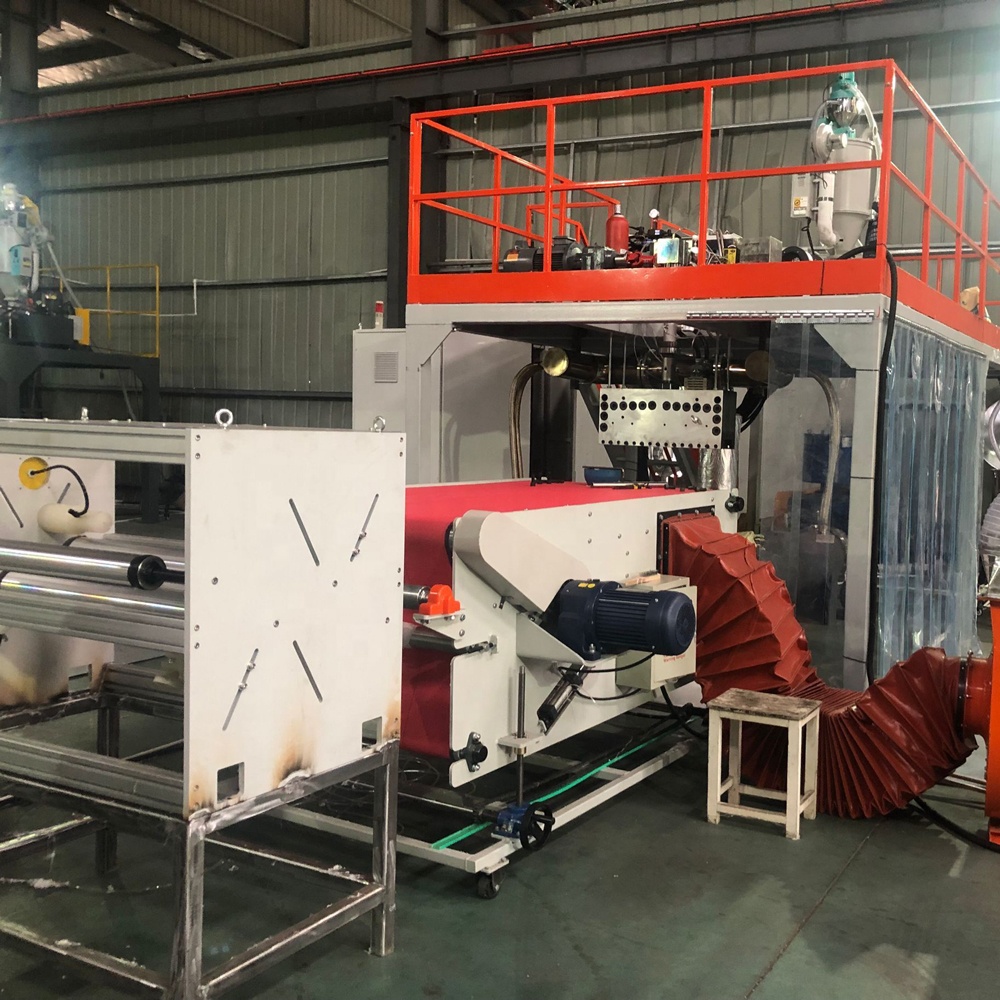

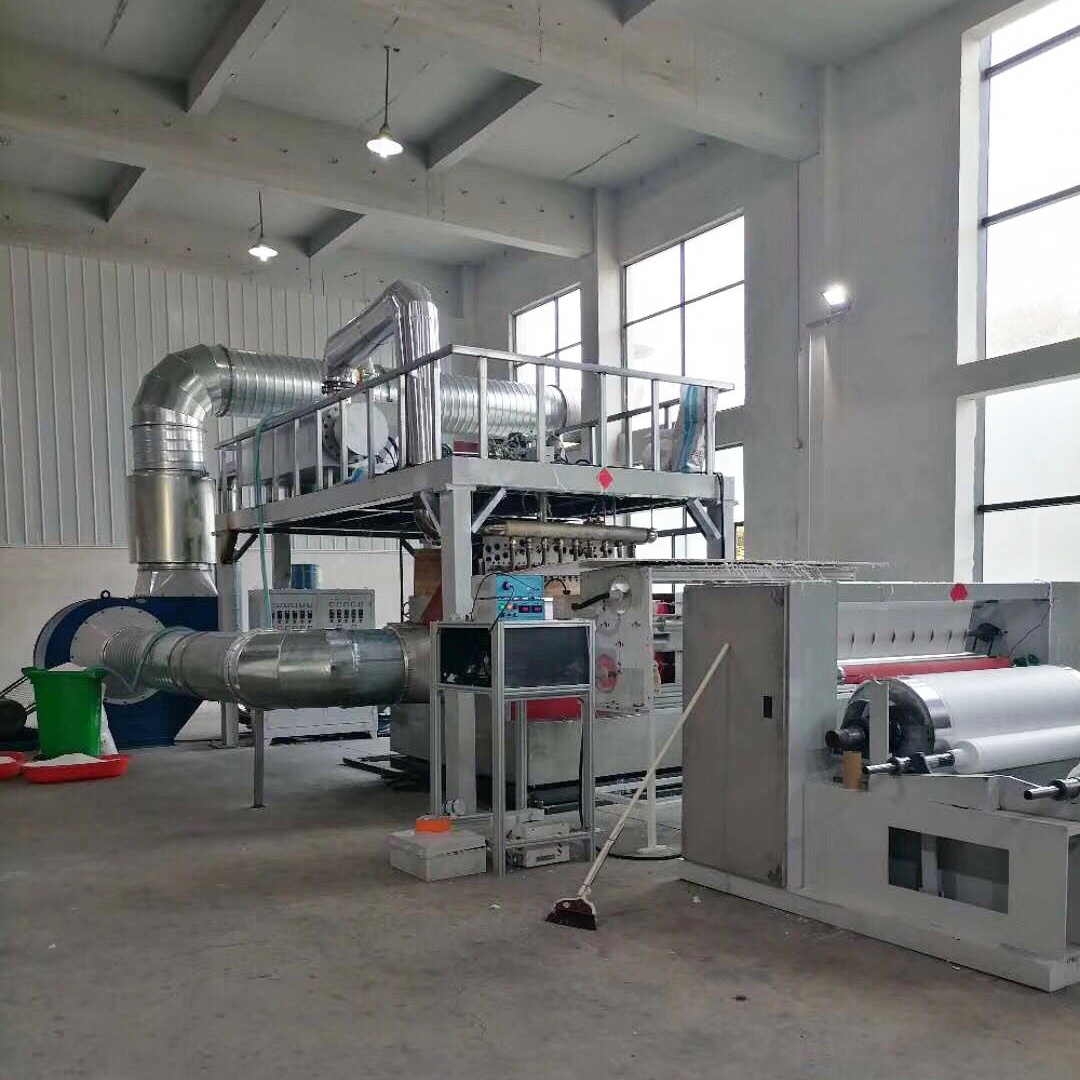

PP melt blown middle layer filter melt-blown cloth making machine

Working principle:
The polypropylene raw material is put into the extruder, after melting between the screw and the barrel, it is transported to the melt pump and the filter, after filtering, it is quantitatively sent to the spinneret assembly. At this time, the hot air flow on both sides of the spinneret hole blows out the melt material at a speed close to the speed of sound, so that it is quickly
thinned, and in the falling process, it is cooled and solidified by the traction air flow on both sides.

Process of meltblown nonwoven production line:
Polymer preparation --- Melt extrusion --- Metering pump --- Meltblown die head assembly --- Solution thin-flow drawing --- Fiber cooling --- Auxiliary network --- Electrostatic electret --- Reinforced finished product

Melt-blown cloth is produced by melt-blown process. The equipment mainly includes: screw extruder, melt pump, screen changer, melt-blown device, winding device, air system (hot air blower and heater), etc. The function of the screw extruder is to melt the slice material; the role of the melt pump is to accurately measure, control the output and the fineness of the fiber, and continuously and evenly transfer the melt to the spinneret. The function of the screen changer is to filter out impurities in the melt so as not to block the spinneret holes. The function of the winding device is to pack the melt blown cloth into rolls. The function of the air system (hot air blower and heater) is to provide the temperature and pressure of the hot air used in the drawing of the spinning air stream.

Specification

Model of PP melt blown middle layer filter melt-blown cloth making machine

Model	L/D	Output	Speed of Screw Rotationl	Whole line power	Fabric Width
SJ-50	30-33	200-250kg/day	20-120r/min	80-100kw	500mm
SJ-65	30-33	300-350kg/day	20-120r/min	90-130kw	600mm
SJ-75	30-33	600-750kg/day	20-120r/min	250-300kw	800mm
SJ-90	30-33	900-1100kg/day	20-120r/min	300-350kw	1200mm
SJ-105	30-33	1000-1300kg/day	20-120r/min	400-430kw	1200/1600mm
SJ-120	30-33	1200-1500kg/day	20-120r/min	430-450kw	1600mm

Recommend Products

Packing & Delivery

seaworthy packing or air fleight

Company Profile

Zhangjiagang Sevenstars Machinery Co., Ltd. is a group company. We devote ourselves to the development, research and production of plastic machines and liquid food and beverage packing and filling machines. For plastic machines, our main products include: big-mouth PVC pipe extrusion production lines, PE big-mouth for gas, water supply extrusion production lines, PET bottle recycling line PE/PP film recycling line PVC/WPC foam board extrusion line PVC/WPC profile extrusion line PP hollow sheet extrusion line HDPE/LDPE pipe extrusion line PPR PIPE extrusion line plastic extruders, high speed mixers and various plastic auxiliary machines. Please feel free to contact us for further details. We are looking forward to forming a profitable business relationship with your company in the near future. We welcome you to visit our company at any time.

FAQ

Why choose us?
1. Low cost
* All the machine ,we make it ourself to reduce the cost of our customer.

2. Genuine product with excellent quality
* We choose our material very strict.
* All the material come to our factory must pass the quality test
* Substandard goods are returned to the supplier.

3. Engineers available to serve oversea

4. Quick delivery
* The company provide just in time delivery with its streamlined supply chain.

5. Cost saving
* Se take strong attention to every detail in the manufacturing process.
* The quality control in our factory is very strict.
* All defective semi-manufactures must be treated again or reject.
* All the machine must be checked out ,then delivered to our customer.
* All about that pushing up the price,but get good quality machine.
* What we want to do is give our customer a good quality product with stable working and long lived.
