SJSZ80/156 1220mm PVC Marble Board Extrusion Line

SJSZ80/156 1220mm PVC Marble Board Extrusion Line

$85000.00

1-1 Set/Sets
$80000.00

≥2 Set/Sets

Port:: Shanghai port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	2 Set/Sets per Month
Payment Type:	L/C,D/P,D/A,T/T,MoneyGram
Port:	Shanghai port

Product Description

SJSZ80/156 1220mm PVC Marble Board Extrusion Line

General description

1、Product size: Width 1220mm/thickness: 3-10mm
2、Main Material：100% PVC powder, 200-300% CaCO3 with additives
3、Extruder: SJSZ 80/156 conical double screw extruder
4、Output: around 6-7ton/day
5、Cooling water temperature: <15℃,Air pressure: > 0.6Mpa

6、Power supply: 3Phase/380V/50HZ (or customized)

Products:PVC Marble Board Extrusion Line,Plastic Imitating Marble Sheet Making Machine,1220mm Floor Board Machinery.

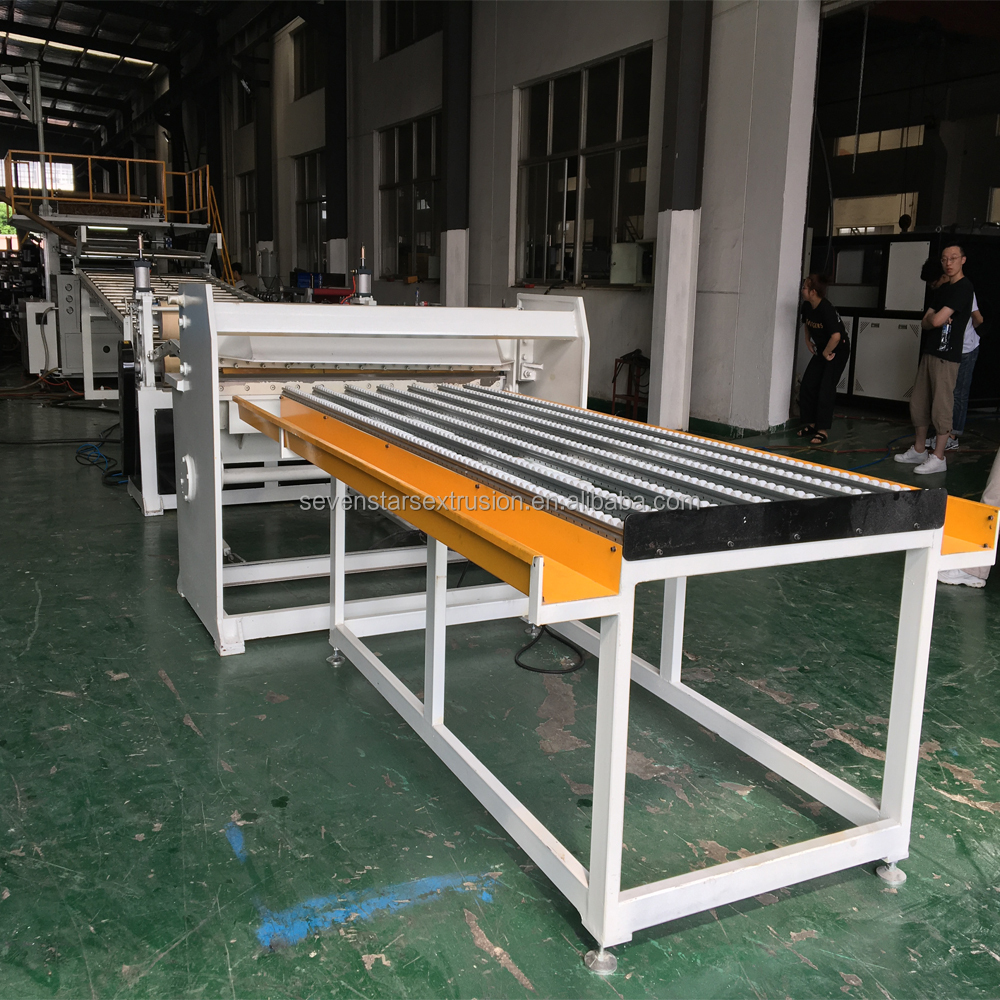

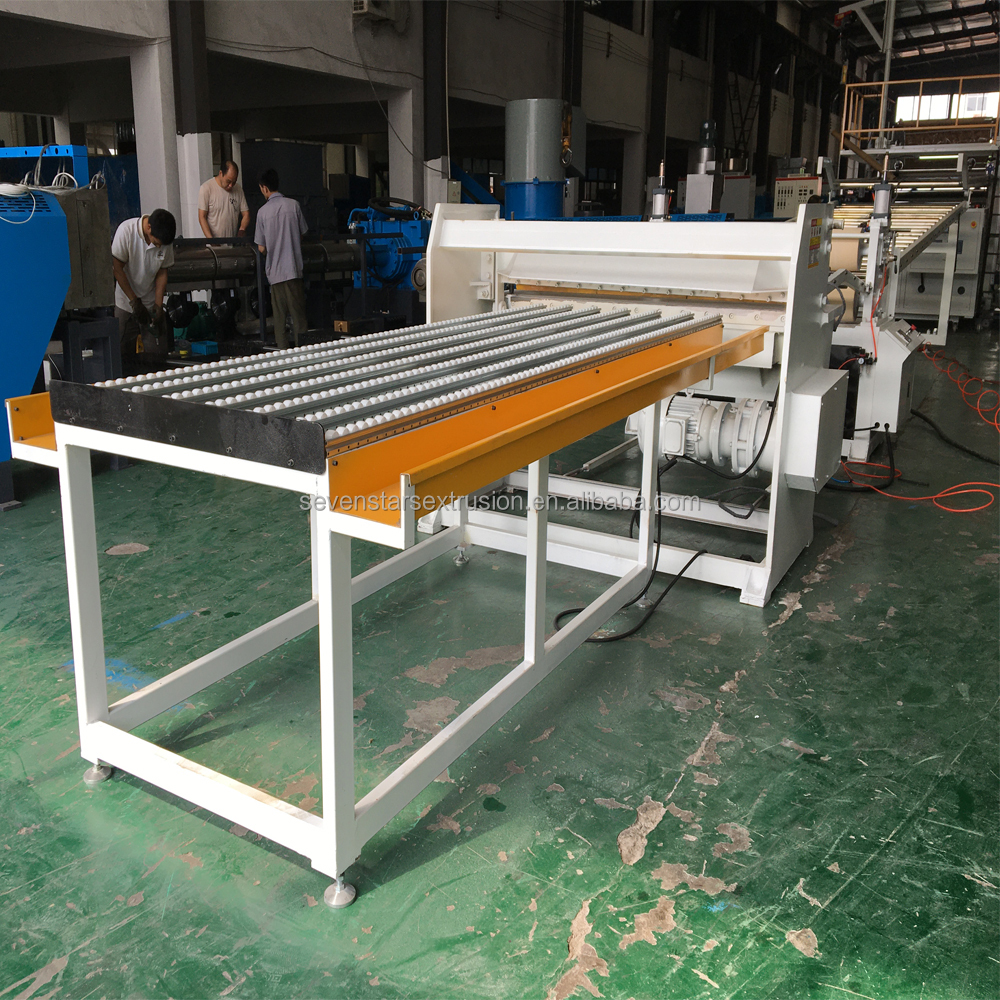

Details Images

Product Paramenters

No.	Name	Qty
1	Automatic loader	1 set
2	SJSZ80/156 conical twin screw extruder	1 set
3	Mould	1 set
4	Mould temperature controller	1 set

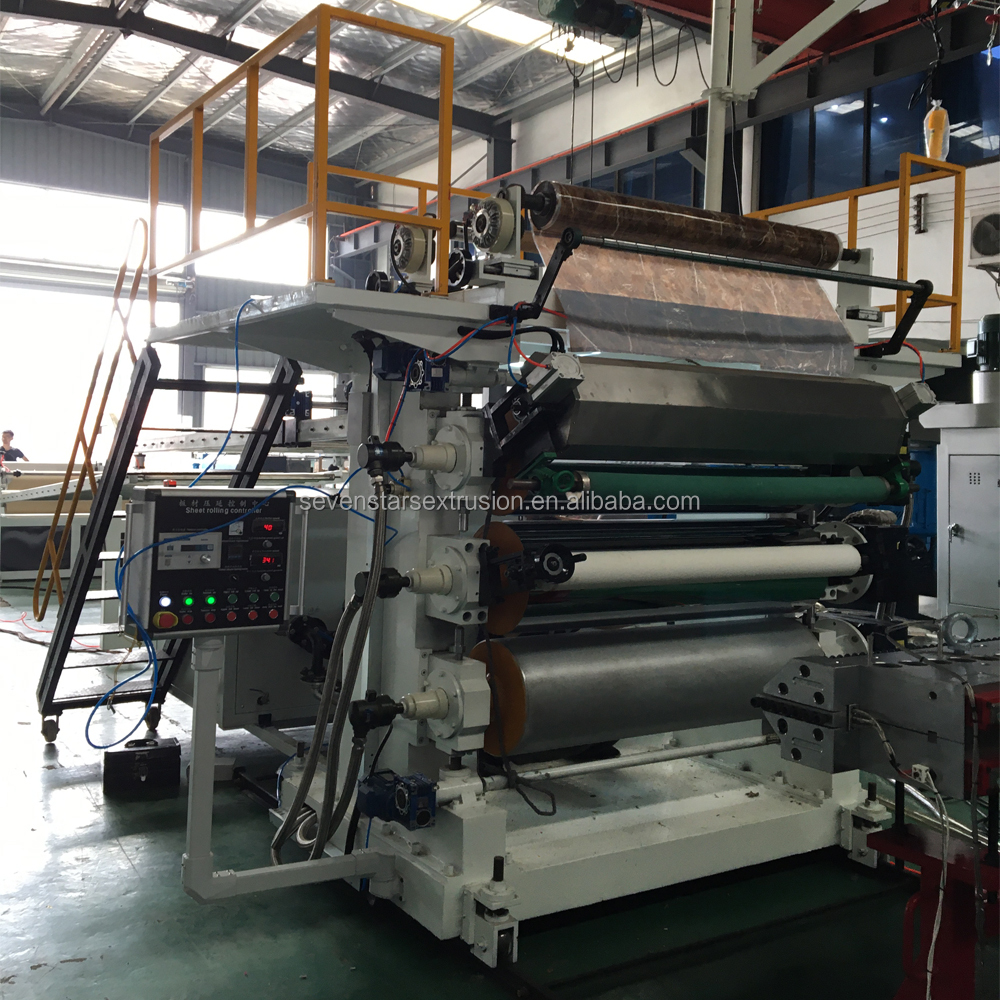

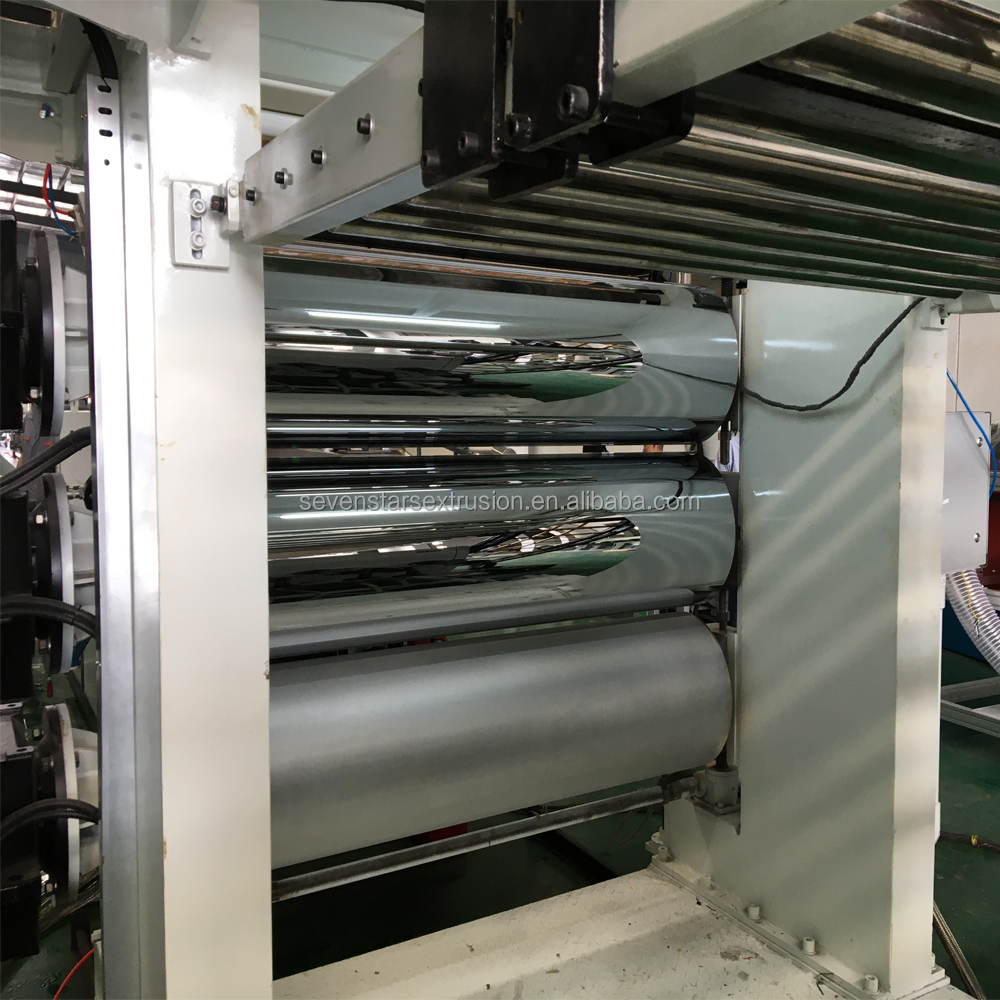

5	Three roller calendar with lamination system	1 set
6	Cooling bracket	1 set

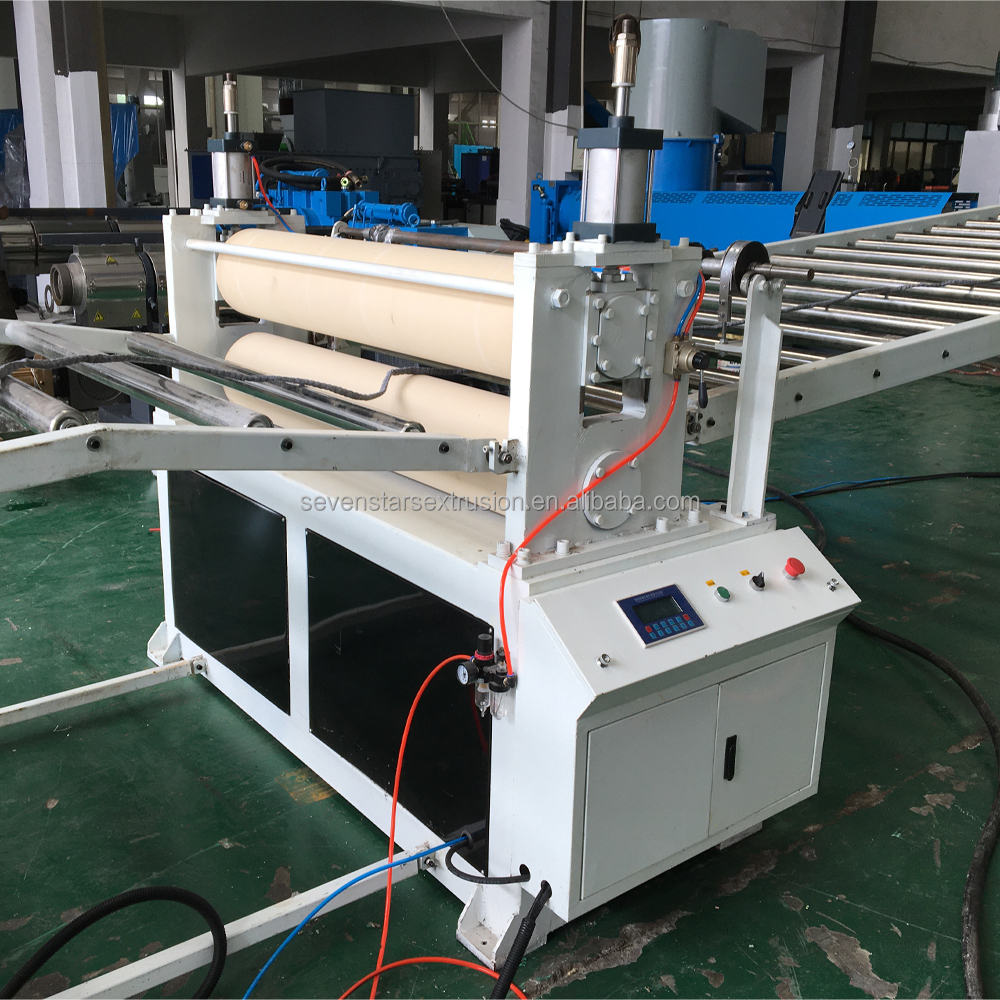

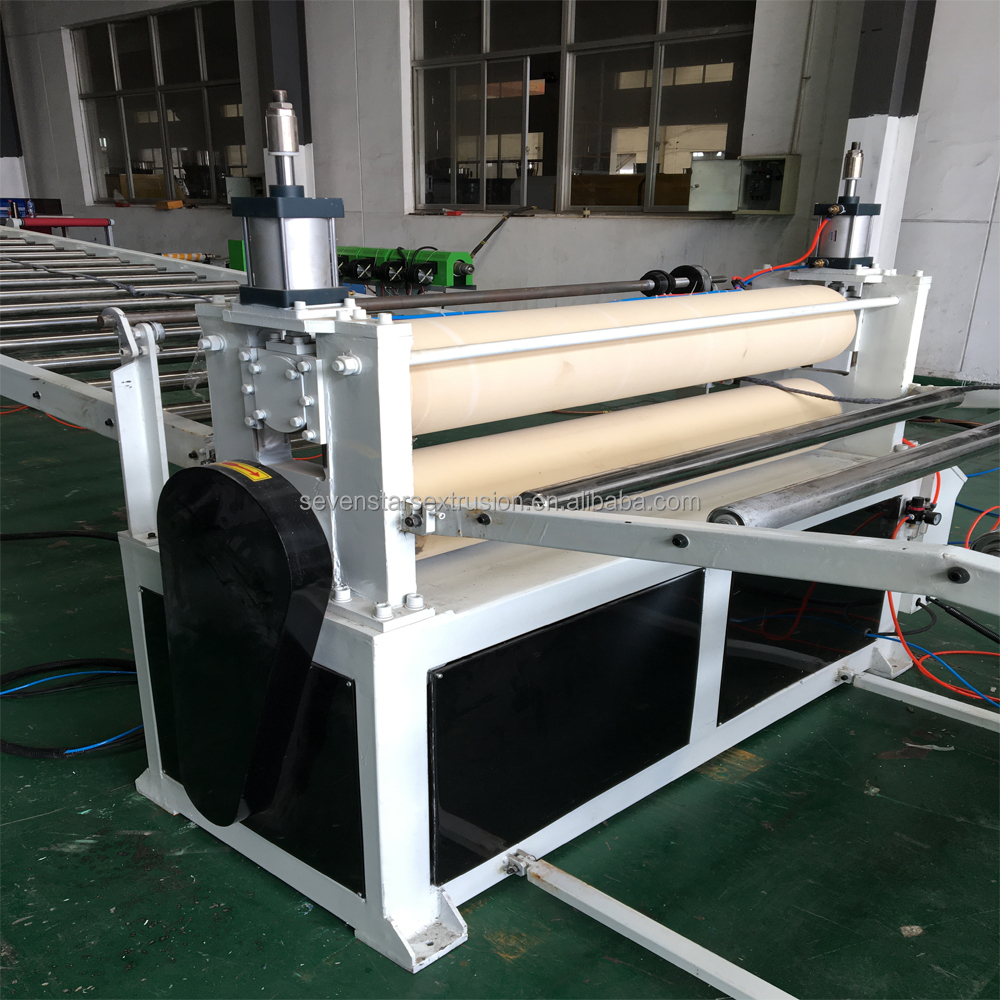

7	Haul off device and edge-cut unit	1 set

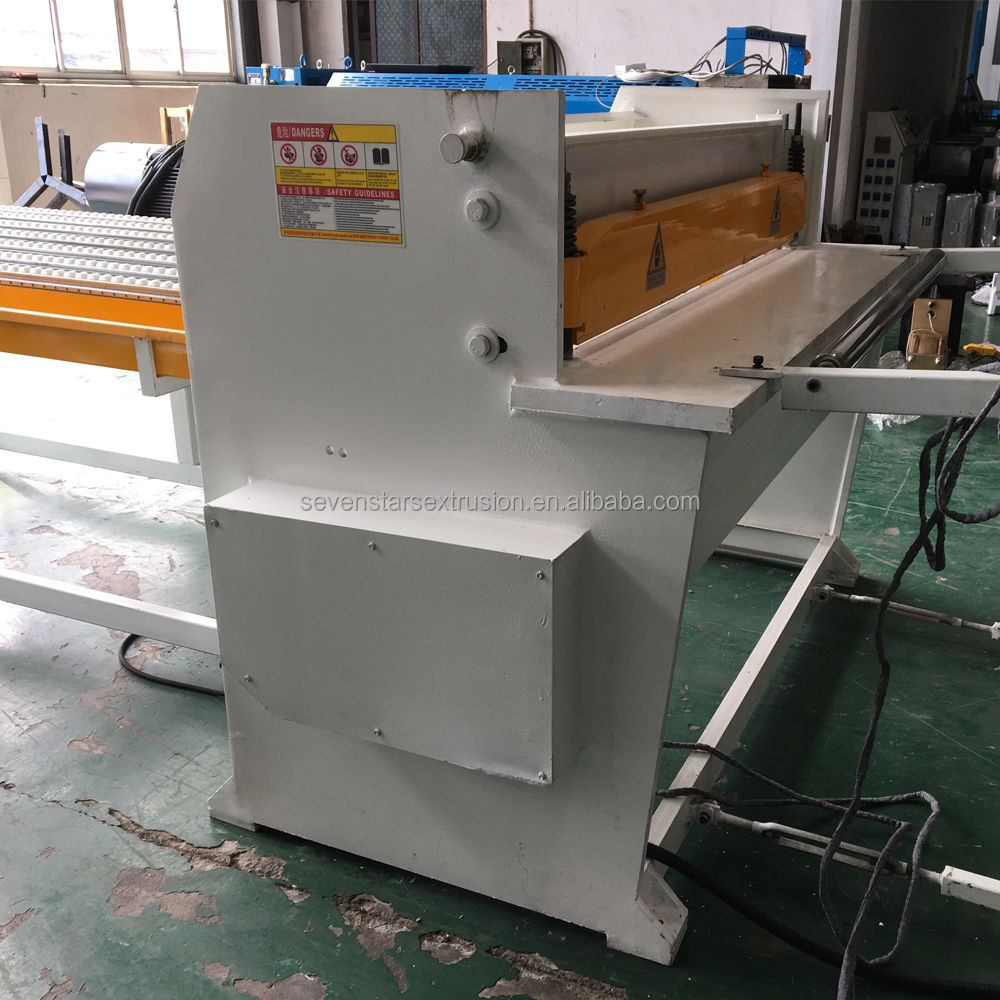

8	Cross cutting machine	1 set
9	Stacker	1 set
10	Temperature controller for three roller calendar	1 set
