Wooden PVC Sheet Wall Panel Making Machine Line

Wooden PVC Sheet Wall Panel Making Machine Line

$22800.00 - $36800.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Port:: Shanghai seaport

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T
Port:	Shanghai seaport

Product Description

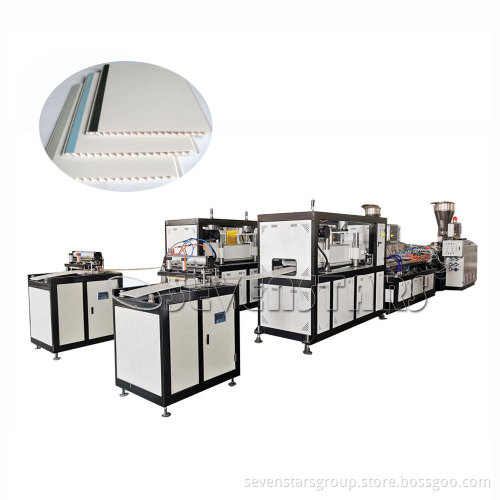

Wooden PVC Sheet Wall Panel Making Machine Line

Products:PVC Sheet Wall Panel,Sheet Wall Panel Making Machine,Steel Roof Panel Making Machine

Production flow of pvc ceilling panel production line:

Material batching mixing→extruding→molding→vacuum calibrating and cooling→hauling→cutting→final PVC ceiling

Surface treating ways:
- hot stamp printing
- two color printing
- lamination

Advantages of pvc profile extrusion:
1.100% Water proof, Moisture proof
2.Wall Panel are 100% Damp proof
3.No splitting, cracking, warping or rotting.
4.No painting or varnishing
5.Wall Panel are Light in weight
6.Consistency in quality
7.Easy to install Time and labor saving
8.High durability
9.Wall Panels are Wide range color
10.High aesthetic appeal
11.Reusable

PVC ceiling panel extrusion production line used to produce PVC ceiling wall panel with different size, such as 200mm, 250m,300mm, 400mm, 600mm and so on.

The main machines needed for pvc profile extrusion:
-PVC mixer
-PVC panel extrusion line (Including autoloader, conical twin screw extruder, mould, vacuum calibration chamber, hauling machine, auto cutter- stacker)
- hot stamp printer or two color printing line or lamation
- PVC pipe crusher& PVC miller
- Air compressor
- Water chiller (optional)

Detailed photo

Double conical screw extruder

Extrusion mold

Forming mold

Calibration plate

Haul off machine

Cutting machine

Stacker 1

Automatic stacker

Hot stamping & lamination two in one machine

PVC ceiling printer

Specification

Popular Model	YF-300	YF-600
Extruder	SJZZ51/105 or SJSZ55/110	SJSZ65/132
Suitable size of panel	160mm,200mm,250mm,300mm	250mm,300mm,400mm,600mm
Max capacity(kg/h)	About 100	About 200
Production line speed	3.5-8m/min
