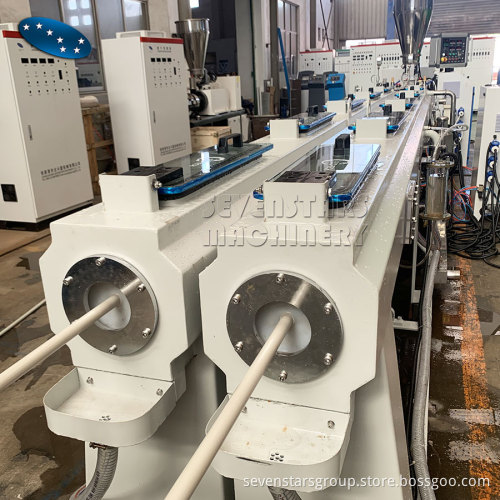

PVC double pipe extrusion machine

$55000.00 - $75000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: SHANGHAI, NINGBO, TIANJIN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	50SETS/YEAR
Supply Ability:	80SETS/YEAR
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
HS Code:	84772090
Transportation:	Ocean,Land,Air
Port:	SHANGHAI,NINGBO,TIANJIN

Product Description

We are Zhangjiagang Sevenstars Machinery Co.,ltd, we mainly produce plastic recycling machine and Plastic Granulator and plastic extruder, PVC double pipe extrusion machine is one kind of Plastic Pipe Making Machine, it is beglon to Plastic Extruder industry.

Machine Description:

PVC double pipe extrusion machine is developed with the West Europe advanced technology by our company, the main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder, the machine is equipped with double-tube single-control stainless steel spraying calibration tank, it avoids waste condition when one tube is adjusted and the other one is affected, The auto single-control double drawing machine and cutting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double-tube extruding.

Technical Specifications:

Diameter scope (mm)	16-50 Dual	16-63 Dual	50-160	110-250	160-315	315-630	560-800
Conical extruder	SJSZ51/105	SJSZ65/132	SJSZ65/132	SJSZ80/156	SJSZ80/156	SJSZ92/188	SJSZ105/216
Extruder powder (KW)	18.5 AC	37 AC	37 AC	55 AC	55 AC	110 DC	160 DC
Max. capacity (KG)	120	250	250	350	350	800	1100
Max. Lineal speed (m/min)	10	15	8	3.5	3	1.2	1.3
