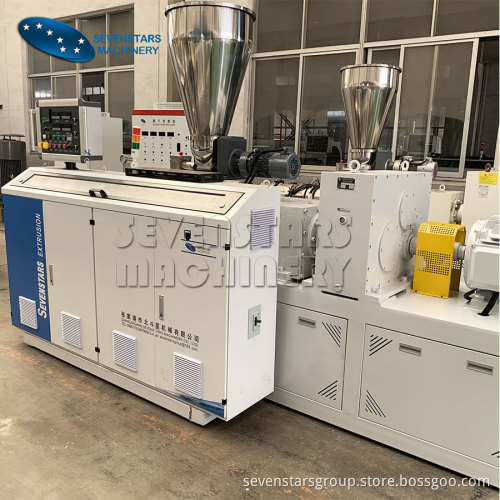

PVC three-layers pipe extrusion machine

$45000.00 - $75000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: SHANGHAI, NINGBO, TIANJIN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	1100KG/H
Supply Ability:	60SETS/YEAR
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
HS Code:	84772090
Transportation:	Ocean,Land,Air
Port:	SHANGHAI,NINGBO,TIANJIN

Product Description

PVC three-layers pipe extrusion machine is for PVC Pipe Making Machine, it is one kind of Plastic Pipe Making Machine, and it is for Plastic Extruder industry. it mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness; except plastic extruder, We also have plastic recycling machine and Plastic Granulator and some other Plastic Auxiliary Machinery.

The PVC machine production line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off, cutter and stacker etc

Specifications:

Diameter scope (mm)	16-50 Dual	16-63 Dual	50-160	110-250	160-315	315-630	560-800
Conical extruder	SJSZ51/105	SJSZ65/132	SJSZ65/132	SJSZ80/156	SJSZ80/156	SJSZ92/188	SJSZ105/216
Extruder powder (KW)	18.5 AC	37 AC	37 AC	55 AC	55 AC	110 DC	160 DC
Max. capacity (KG)	120	250	250	350	350	800	1100
Max. Lineal speed (m/min)	10	15	8	3.5	3	1.2	1.3
