High Quality PVC Ceiling Profile Making Extrusion Machine

$23000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: shanghai seaport

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	15 Set/Sets per Month
Payment Type:	L/C,T/T
Transportation:	Ocean
Port:	shanghai seaport

Product Description

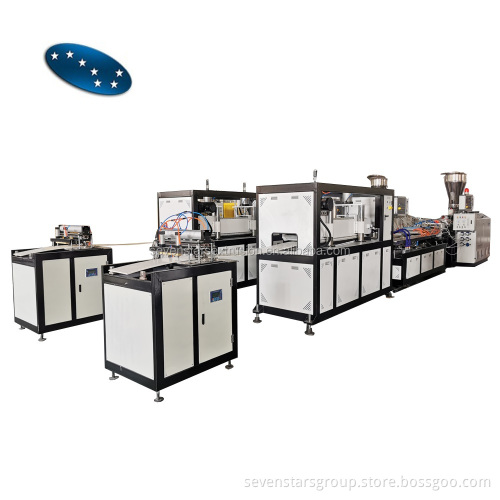

High Quality PVC Ceiling Profile Making Extrusion Machine

Products:PVC Ceiling Profile Extrusion Line,Stretch Ceiling PVC Profile Making Machine,PVC Ceiling Machine Line

Products Description

PVC ceiling wall panel production extrusion machine

Complete pvc ceiling wall panel making machine / production line with online lamination line is used to produce PVC celing panel or PVC wall panel with width normally from 200mm to 300mm with different section shape and height. The surface of PVC ceiling panel can be treated by double by hot stamping printing, or by lamination, which can make marble, wooden design on surface of product.

Production line including:
1.Auto loader for raw material ---1set
2.Extruder---1set
3.Die mould---1set
4.Vacuum cooling table---1set
5.Hot stamping and laminating machine--1set
6.Haul off machine---1set
7.Cutter---1set
8.Stacker---1set
9.Auxilary equitment (mixer, crusher, pulverizer, color printer.etc )

Details Images

conical twin screw extruder

Mold

Vacuum cooling table

Hot stamping and laminating machine

Haul off machine

Cutting machine

Final Product

Product Paramenters

Model	48/113	55/110	65/132	80/156
Applicable product width	160-200mm	200-300mm	400-600mm	500-800mm
Extruder model	SJSZ48/118	SJSZ55/110	SJSZ65/132	SJSZ80/156
Capacity (kg/hour)	50-150kg/h	60-180kg/h	120-300kg/h	180-400kg/h
Main motor power(KW)	15	30	37	55
