Corrugated Zinc Coated Roof Sheet Making Machine

Corrugated Zinc Coated Roof Sheet Making Machine

$19000.00 - $29000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	5 Set/Sets per Month
Payment Type:	L/C,D/P,T/T
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

PVC PE single and double wall corrugated pipe making machine line

BDX1200(inner diameter Φ50-1200mm) double wall corrugated pipe production line has two single-screw extruder. It has
adual-channel structure and nitriding polishing head. The forming machine adopts horizontal structure, chain drive design,
advanced water cooling system, vacuum forming system, automatic lubrication system and advanced double-layer on-line expansion function.
The material of the molds is aluminum alloy. The complete production line uses the German Siemens production of professional PLC control system. It has a high degree of automation, reliable operation, easy operation and so on.
Main Advantages
1) Extremely strong resistance to chemical corrosion and erosion.

2) Good flexibility and strong impact resistance
3) Cold resistance and aging resistance. The connection is simple, safe and reliable.
4) Light weight and convenient construction.
5)Strong wear resistance. The service life is more than 50 years, and it is maintenance-free during the service life.
6) Superior drainage performance. It is hygienic and can be recycled and used.

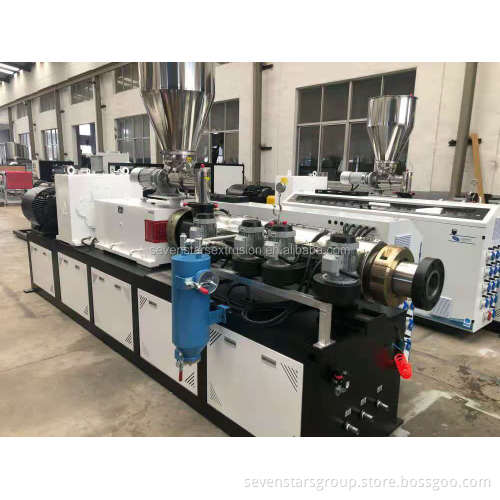

Single screw extruder for PE or PVC granules

Extrusion mold

Forming mold

Winder machine

Steel wire release for steel reinforced corrugated pipe

Process Flow
Raw material+additive → Mixing → granulating → Conveying feeding → Single screw extruder 1→ Single screw extruder 2→Co-extrusion mould → Forming machine →Dust free cutter→ Single disc Winder → Finished product inspecting & packing.

Specification

Model	Pipe range(mm)	Extruder	Max.Output(kg/h)	Total power(kw)
BDX80	50-60	SJ45/30-SJ65/30	100-120	75
BDX160	63-160	SJ55/33-SJ65/33	180-220	90
BDX200	110-200	SJ65/30-SJ65/33	250-350	110
BDX800	500-800	SJ75/33-SJ90/33	400-650	185

Product packaging

Company Profile

Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc country and region.Our products enjoy a high reputation home and abroad.
