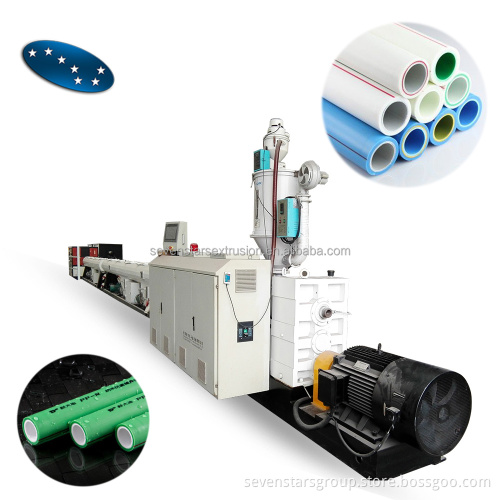

20-63mm PPR PPRC water pipe making extrusion machine line

20-63mm PPR PPRC water pipe making extrusion machine line

$30000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Shanghai Seaport

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	15 Set/Sets per Month
Payment Type:	L/C,T/T
Transportation:	Ocean
Port:	Shanghai Seaport

Product Description

HDPE water pipe and gas pipe production line

PPR / PERT pipe production line

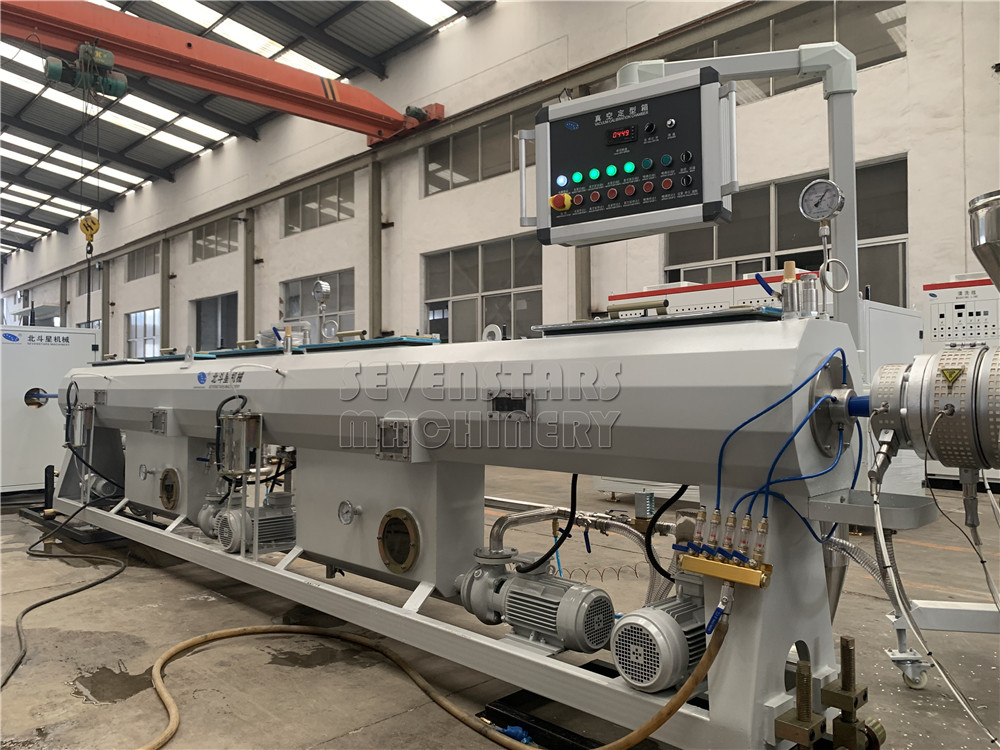

PE series plastic pipe production line is mainly used for producing pipe of water supply and drainage in the field of agriculture and construction cable etc. This machine consists of vacuum calibration tank,haul off unit,cutting unit, stacker etc . The single screw extruder and haul off unit apply famous A/C frequency conversion speed regulation device,both vacuum pump and driving motor apply famous brand .The haul-off unit includes two-claw type,three-claw type,four-claw type,six-claw type,eight-claw type,ten-claw type,twelve-claw type etc.Dust free cutting machine ,saw blade cutting machine or planetary cutting machine can be applied,the property of machine group is reliable.The production efficiency is high with special device,it can produce inner wall spiral pipe ,inner wall hollow pipe ,and core layer foam pipe.It can also produce PP, PE, ABS, PPR, PEX, Silicon core pipe etc .The planetary cutting machine is controlled automatically with computer,it has such advantages of simple operation,reliable performance etc.It has reached international advanced level.

single screw extruder machine

HDPE PPR pipe mold

Vacuum calibration and cooling tank

cutting machine

winder machine

Hopper dryer with with Gravimeter Control System

Product Paramenters

Model	Pipe specification (mm)	Supporting extruder	Extrusion quantity (kg/h)	Main extruder power (Kw)
PE-63	16-63	SJ65/33	120-180	45
PE-110	16-110	SJ65/33	150-200	55
PE-160	50-160	SJ75/33	150-220	75
PE-250	75-250	SJ75/33	280-350	90
PE-315	110-315	SJ90/33	250-350	132
PE-450	160-450	SJ90/33	350-450	160
PE-630	315-630	SJ120/33	550-850	200
PE-800	450-800	SJ150/33	800-1300	250
PE-1000	600-1000	SJ150/33	800-1300	315
