Solon new condition high yield wood pallet machine price
-
$35000.001-4 Set/Sets
-
$22000.00≥5 Set/Sets
- Transportation:
- Ocean, Land
- Port:
- Shanghai
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Supply Ability: | 15 Set/Sets per Month |
|---|---|
| Payment Type: | L/C,T/T |
| Transportation: | Ocean,Land |
| Port: | Shanghai |
Product Description
Product Description

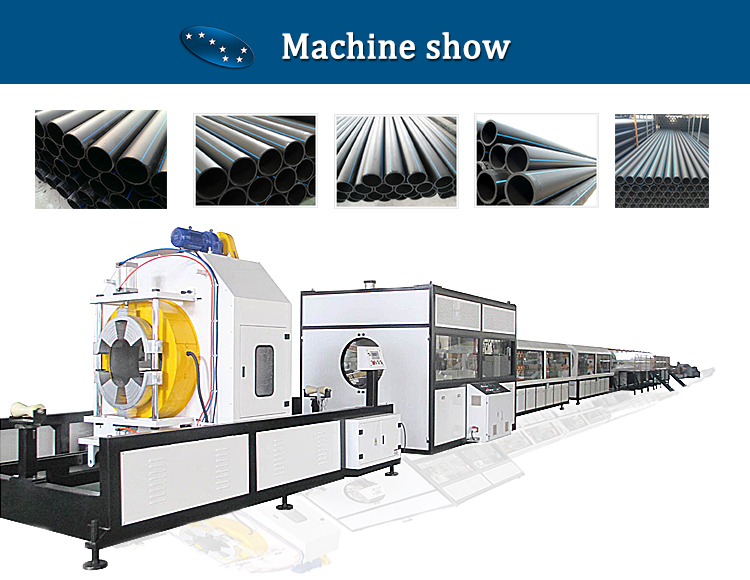

hdpe pipe manufacturing machine water hose MDPE pipe making extruder
This PPR PP PE Pipe Machine HDPE Pipe Extrusion Machine Plastic Pipe Lline which have excellent stiffness and flexibility, heat
resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep
deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb,
Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Process flow:

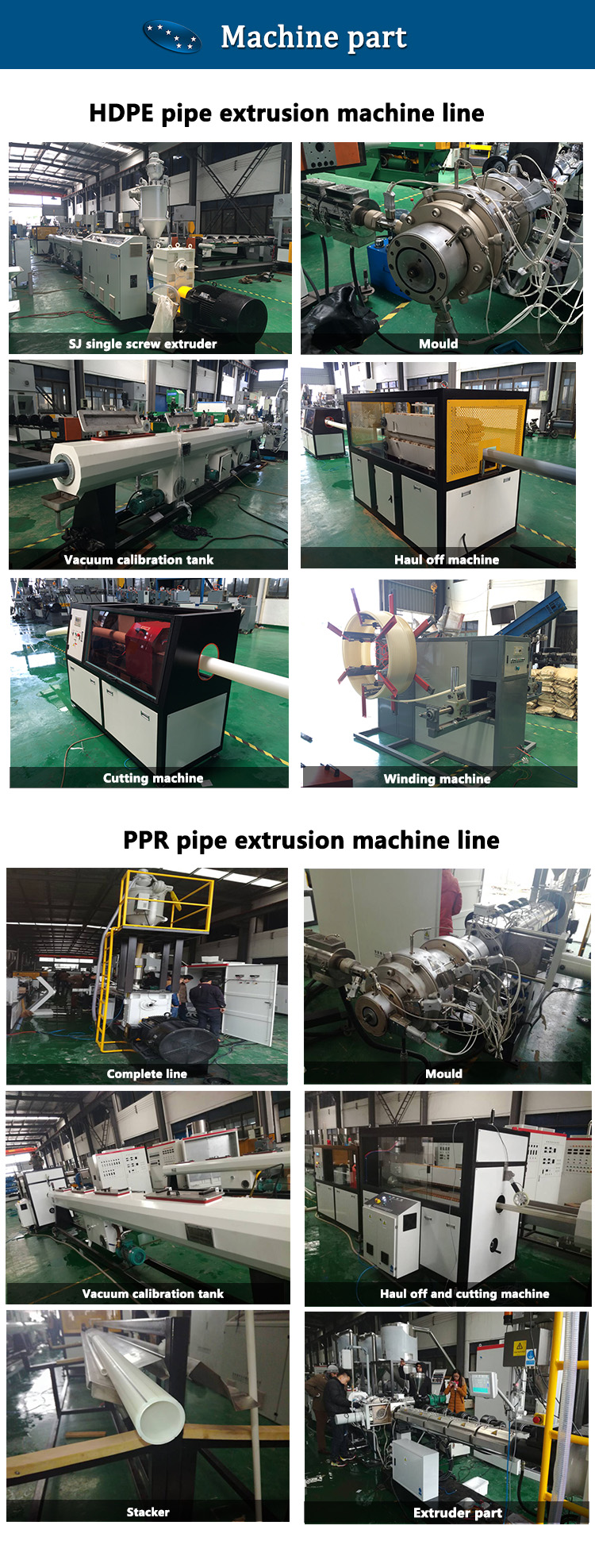

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker
resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep
deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb,
Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Process flow:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker
Specification
Model of hdpe pipe manufacturing machine water hose MDPE pipe making extruder
|
Model number
|
Pipe diameter (mm)
|
Max output (kg/hr)
|
Production rate (m/min)
|
Extruder model
|
Installation power
|
Layout dimension
|
|
PE16/63
|
16-63
|
150
|
1-15
|
SJ65/30
|
85kw
|
35x3x2m
|
|
PE20/110
|
20-110
|
200
|
1.2-12
|
SJ65/33
|
110kw
|
38x3.1x2.2m
|
|
PE50/160
|
50-160
|
350
|
0.6-8
|
SJ75/33
|
125kw
|
38x3.1x2.2m
|
|
PE75/250
|
75-250
|
350
|
0.5-4
|
SJ75/33
|
180kw
|
40x3.2x2.4m
|
