Product Description

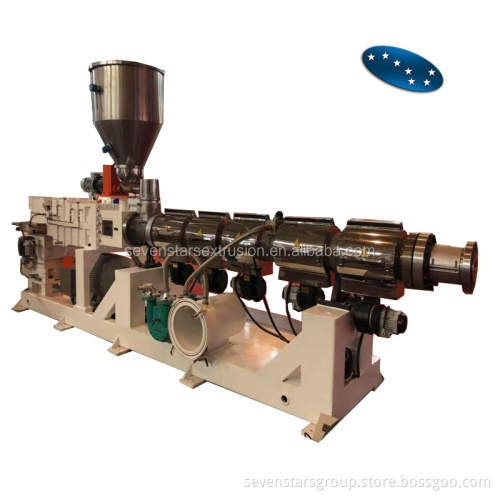

Counter rotating parallel twin screw PVC pipe/profile extruder

An extruder is a machine that consists of a heated cylinder and an internal motor-driven screw that plasticizes and pumps out the polymer.

The sheet extrusion line consists of an extruder (single or twin screw) equipped with a screen changer and a gear pump, followed by a static mixer (sometimes giving a co-extrusion feed block preceded by one or more additional extrusion units as described above) feeding a flat die.

The sheet is then cooled by a 3-roll (or more) roll set (sheet take-off) with controlled temperature, pressure and roll slit.

Finally, the sheet is cut to length and wound into rolls, or directly into a second process

Products Description

The parallel twin screw extruder is mainly used to produce PVC pipes and PVC profiles. More calcium powder can be added. The output is large, the production is stable, and the final product is of higher quality and more energy saving.

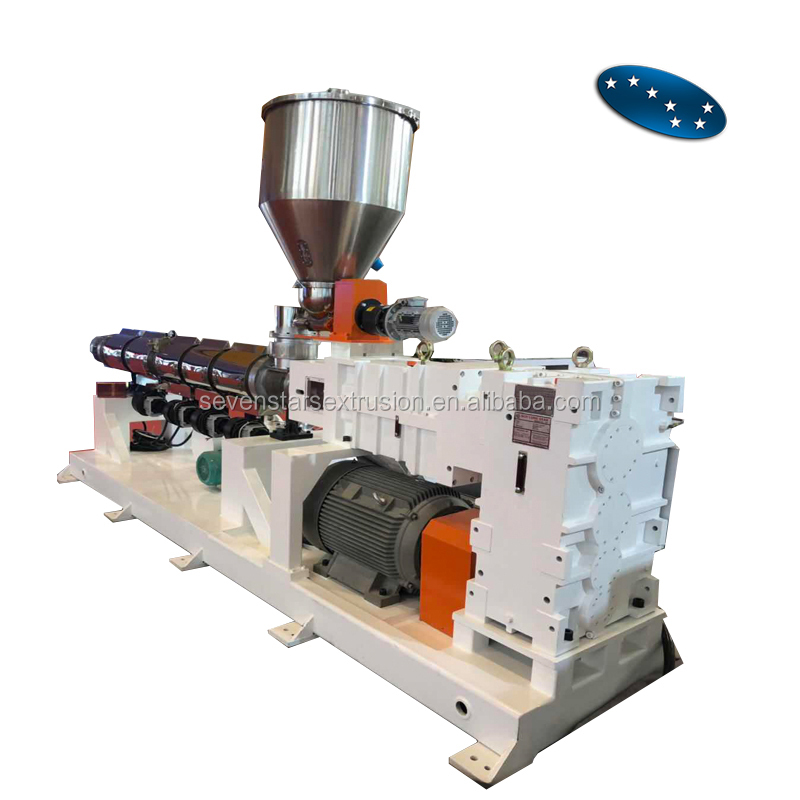

Details Images

Product Paramenters

Model	Main motor power(kw)	Output(kg/hr)
SJP75/28	37	250-350
SJP90/28	75	450-550
SJ110/28	90	550-650
