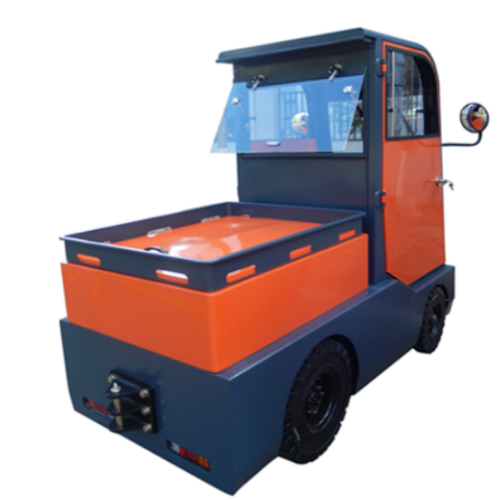

6T/9T Medium-sized Fully Enclosed Battery Tractor
- Transportation:
- Ocean
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Supply Ability: | 100 units per month, 1200 units per year |
| Payment Type: | T/T |
| Incoterm: | CIF |
| Transportation: | Ocean |
| Port: | shanghai |
Product Description
Electric tractors are suitable for the turnover and transportation of materials in factories, docks, airports and warehouses; it greatly reduces the labor cost of using factories.
Features of QSD-C-60/90 (medium) four-wheel battery tractor:
1. The product has a number of patented technologies;
2. Accurately calculated battery configuration effectively guarantees the working time of the vehicle;
3. Solid rubber tires are suitable for driving on various roads and extend the service life of vehicle tires;
4. The simple operating system makes it easier for the driver to operate;
5. Special drive axle for construction machinery, which reflects the durability;
6. The hydraulic expansion brake system effectively guarantees the braking effect;
7. The suspension system of the vehicle has a shock absorption function, which effectively reduces the bumpy feeling during the driving of the vehicle, thereby prolonging the service life of various parts of the vehicle;
8. The LCD combined instrument makes the various functions of the vehicle clear at a glance;
9. Using high frequency MOS AC control technology, it has the characteristics of high efficiency, low fever, low noise and strong reliability;
10. The whole car is sprayed plastic parts to ensure that the car is free of static electricity;
11. Hydraulic/electric power steering system: convenient, practical and exquisite;
12. The vehicle's AC control system has a rear jog function and a regenerative braking function. Make the operation of the vehicle more convenient and safer to drive!
|
Model |
unit |
QSD-C-60 |
QSD-C-70 |
QSD-C-80 |
QSD-C-90 |
|
Load Cap |
kg |
6000 |
7000 |
8000 |
9000 |
|
Dimensions(LxWxH) |
mm |
1780ｘ980ｘ1280 |
1880ｘ1080ｘ1280 |
||
|
Plate size (LxWxH) |
N |
1800 |
1900 |
2000 |
2200 |
|
Walking Speed(Empty)' (Full) |
Km/h |
15 |
|||
|
Km/h |
9 |
||||
|
Minimum turning radius outside |
mm |
≤1860(Mechanical steering) |
≤1960(Mechanical steering) |
||
|
Minimum ground clearance of car body |
mm |
≥120 |
|||
|
Braking Distance |
m |
≤1.5 |
|||
|
Wheelbase |
mm |
1185 |
1285 |
||
|
Self-respect |
kg |
1250 |
1650 |
1800 |
2100 |
|
Tyre model forward |
|
4.00-8ｘ2 |
4.00-8ｘ2 |
||
|
Tyre model Rear |
|
4.00-8ｘ2 |
650-10ｘ2 |
||
|
Drive motor (AC, DC) |
kw |
5ｘ1 |
5.5ｘ1 |
6.3ｘ1 |
7.5ｘ1 |
|
Accumulator |
V/AH |
48/330 |
48/350 |
48/400 |
48/440 |
|
Brake |
|
Hydraulic foot brake, parking brake |
|||
|
Controller |
|
AC, DC |
|||
Jiangsu Anli Electric Vehicle Co., Ltd., formerly known as "Kunshan Anli Handling Machinery Factory", was founded in 2000, the company's main business, production and processing of various models, various specifications: Electric tractor, electric truck, electric tool car, electric stacker car, electric engineering car, Battery Tractor,electric tourism car, urban electric sanitation car, rail truck, trackless, Towing Trailer,unmanned truck and various models and specifications of electric forklift accessories, Battery Truck,mechanical and electrical equipment and accessories; At the same time also engaged in domestic and foreign various brands, various models of DC electric equipment maintenance and modification business.
