Four-Wheel Electric Tow Tractor
  • Four-Wheel Electric Tow Tractor
  • Four-Wheel Electric Tow Tractor
  • Four-Wheel Electric Tow Tractor

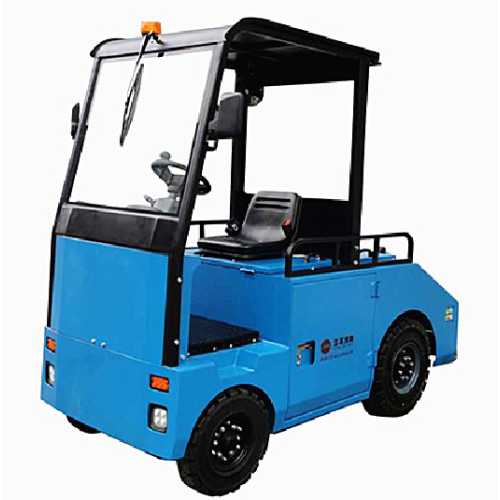

Four-Wheel Electric Tow Tractor
Four-Wheel Electric Tow Tractor
Four-Wheel Electric Tow Tractor

Four-Wheel Electric Tow Tractor

Transportation:
Ocean
Port:
shanghai
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Jiang su
Supply Ability: 100 units per month, 1200 units per year
Payment Type: T/T
Incoterm: CIF
Certificate: ISO9001
HS Code: 8709111000
Transportation: Ocean
Port: shanghai
Product Description
Product Description
Product Description

1. The control part is reasonably arranged, providing the operator with a large operating space.
2. Large and comfortable seat with cushioning function.
3. The larger pedal contact surface and the extra-long safety armrest provide the operator with safe and comfortable control performance.
4. The steering column can be adjusted at a large angle according to the needs of the driver.
5. The position of the emergency brake switch is reasonable, so that the driver can cut off the power in the shortest time.
6. The arrangement of steering wheel, reversing switch, hand brake, foot pedal, etc. is exactly the same as that of the electric

        counterbalanced forklift, providing convenience for the driver who drives a variety of vehicles by one person.

7. The micro-motion button at the rear of the vehicle can effectively control the movement of the vehicle in a small area.



 Model

Unit

QSD-C-50

QSD-C-60

QSD-C-80

QSD-C-100

 Load Cap

kg

5000

6000

8000

10000

 Dimensions(L×W×H)

mm

2260×1080×1380

 Rated Traction

N

7000

     10000

13000

16000


Walking Speed(Empty)/(Full)

km/h

15/9Can be set as customer's requirements

 Turning Radius

mm

≤1960

2150

Ground Clearance of Vehicle Body

mm

≥120

 Braking Distance

m

≤1.5

 Wheel Base

mm

1150

1300

 Service Weight

kg

1300

1600

1900

2100

Tyre Model(Front)



  4.00-8×2

Tyre Model(Rear)



650-10×2

Driving Motor(AC)

kw

5.0×1

6.3×1

8.5×1

11×1

 Battery

v/ah

48/300

48/330

48/400

48/550

 Brake Form



 Hydraulic foot brake,hand lever brake

 Controller



CURTIS / INMOTION AC

2a0a526385a3ac74b48fe896cbfebe7

Jiangsu Anli Electric Vehicle Co., Ltd., formerly known as "Kunshan Anli Handling Machinery Factory", was founded in 2000, the company's main business, production and processing of various models, various specifications: Electric tractor, electric truck, electric tool car, electric stacker car, electric engineering car, Battery Tractor,electric tourism car, urban electric sanitation car, rail truck, trackless, Towing Trailer,unmanned truck and various models and specifications of electric forklift accessories, Battery Truck,mechanical and electrical equipment and accessories; At the same time also engaged in domestic and foreign various brands, various models of DC electric equipment maintenance and modification business.
