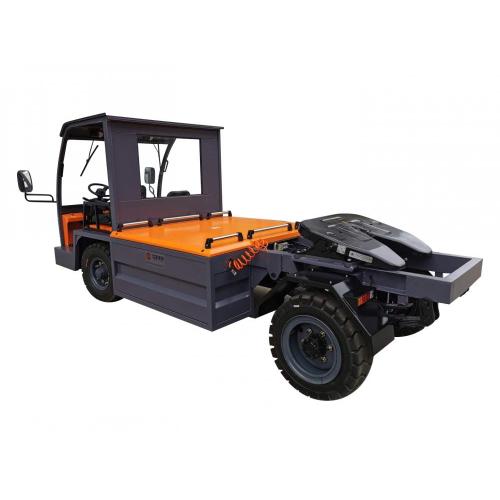

30t electric tow tractor flatbed trailer for sale
- Transportation:
- Ocean
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu |
|---|---|
| Supply Ability: | 100 units per month, 1200 units per year |
| Payment Type: | T/T |
| Incoterm: | CIF |
| Certificate: | ISO9001 |
| HS Code: | 8709111000 |
| Transportation: | Ocean |
| Port: | shanghai |
Battery Operated Tractor Using high frequency MOS AC control technology, it has the characteristics of high efficiency, low fever, low noise and strong reliability;
The whole Battery Operated Tractor And Trailer is sprayed plastic parts to ensure that the car is free of static electricity;The rear suspension of the vehicle is a customized vehicle with a customized range of 1T-30T. Semi-trailer vehicles or Electric Tractor Head are more suitable for work spaces where the site is restricted and cannot be turned on the spot (this model can directly reverse on the spot);
|
Model |
Unit |
QSD-DGC-100 |
QSD-DGC-200 |
QSD-DGC-250 |
QSD-DGC-250 |
QSD-DGC-300 |
|
Load Cap |
kg |
10000 |
20000 |
25000 |
25000 |
30000 |
|
Rated Traction |
N |
13000 |
16000 |
21000 |
27000 |
34000 |
|
(L×W×H) |
mm |
3500×1520×2030 |
4500×1680×2030 |
|||
|
Saddle seat (H) |
mm |
930 |
1190 |
|||
|
Walking Speed(Empty)/（Full) |
km/h |
15/10 |
15/10 |
|||
|
Turning Radius |
mm |
≤2700 |
≤3500 |
|||
|
Ground Clearance of Vehicle Body |
mm |
180 |
220 |
|||
|
Braking Distance |
m |
≤2.5 |
||||
|
Wheel Base |
mm |
1880 |
2780 |
|||
|
Self Weight |
mm |
1650 |
1850 |
2050 |
2230 |
2450 |
|
Tyre Model(Front) |
|
650-10×2 |
700-12×2 |
700-12×2 |
28×9-15×2 |
|
|
Tyre Model(Rear) |
|
700-12×2 |
700-12×2 |
700-12×4 |
28×9-15×4 |
|
|
Driving Motor(AC) |
kw |
6.3×1 |
8.5×1 |
12×1 |
16 |
19×1 |
|
Battery |
v/ah |
48/480 |
80/400 |
80/480 |
80/550 |
80/600 |
|
Brake Form |
|
Hydraulic foot brake,hand lever brake |
||||
|
Controller |
|
CURTIS / INMOTION （AC） |
||||
Jiangsu Anli Electric Vehicle Co., Ltd., formerly known as "Kunshan Anli Handling Machinery Factory", was founded in 2000, the company's main business, production and processing of various models, various specifications: Electric tractor, electric truck, electric tool car, electric stacker car, electric engineering car, Battery Tractor,electric tourism car, urban electric sanitation car, rail truck, trackless, Towing Trailer,unmanned truck and various models and specifications of electric forklift accessories, Battery Truck,mechanical and electrical equipment and accessories; At the same time also engaged in domestic and foreign various brands, various models of DC electric equipment maintenance and modification business.
