Product Description

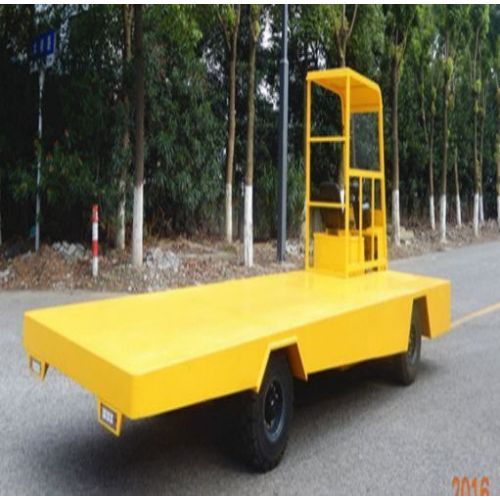

Features of QSD-CJPB-10/30 Flatbed Standard Electric Pallet Truck:
The loading Cap for Motorized Platform Cart can be 1000kg. The Maximum Loading Cap for Electric Platform Cart can be 3000kg. The Size of Electric Handling Platform Truck for QSD-CJPB-30 as example is about 5500*2200*1980mm. The controller Brand for Powered Pallet Truck is CURTIS / INMOTION （AC. If you like Anli Electric Pallet Truck, feel free to contact us.
|
Model |
Unit |
QSD-CJPB-10 |
QSD-CJPB-20 |
QSD-CJPB-30 |
|
Load Cap |
kg |
1000 |
2000 |
3000 |
|
(L×W×H) |
mm |
3300×1600×1380 |
3800×1800×1980 |
5500×2200×1980 |
|
Side platform(L×W×H) |
mm |
3300×1000×500 |
3800×1200×700 |
5500×1600×750 |
|
Platform(L×W×H) |
mm |
2000×1600×500 |
2500×1800×700 |
4200×2200×750 |
|
Walking Speed(Empty)/（Full) |
km/h |
15/10Can be set as customer's requirements |
||
|
Turning Radius |
mm |
≤2700 |
≤3200 |
≤5200 |
|
Ground Clearance of Vehicle Body |
mm |
150 |
220 |
330 |
|
Braking Distance |
m |
≤1.5 |
||
|
Wheel Base |
mm |
1470 |
1950 |
3300 |
|
Self Weight |
kg |
1350 |
1750 |
2100 |
|
Tyre Model(Front) |
|
400-8×2 |
600-14×2 |
650-10×2 |
|
Tyre Model(Rear) |
|
400-8×2 |
600-14×2 |
650-10×2 |
|
Driving Motor(AC) |
kw |
4.2×1 |
6.3×1 |
8.5×1 |
|
Battery |
v/ah |
48/250 |
48/330 |
48/500 |
|
Brake Form |
|
Hydraulic foot brake,hand lever brake |
||
|
Controller |
|
CURTIS / INMOTION （AC） |
||
Jiangsu Anli Electric Vehicle Co., Ltd., formerly known as "Kunshan Anli Handling Machinery Factory", was founded in 2000, the company's main business, production and processing of various models, various specifications: Electric tractor, electric truck, electric tool car, electric stacker car, electric engineering car, Battery Tractor,electric tourism car, urban electric sanitation car, rail truck, trackless, Towing Trailer,unmanned truck and various models and specifications of electric forklift accessories, Battery Truck,mechanical and electrical equipment and accessories; At the same time also engaged in domestic and foreign various brands, various models of DC electric equipment maintenance and modification business.
