Product Description

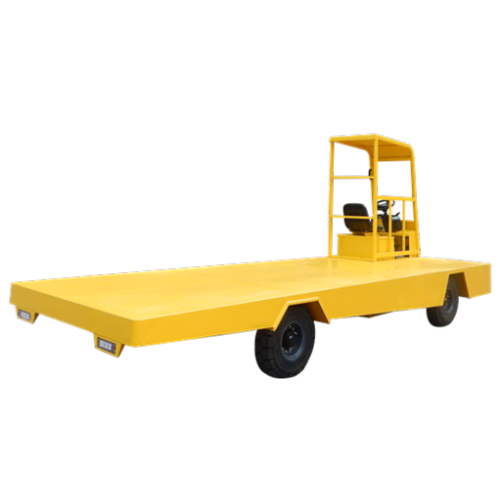

Electric Handling Platform Truck loading capacity has 3 different option: 1 ton 2ton and 3 ton. Electric Platform Cart length *width* height is about 3300*1600*1380mm. Electric Platform Trolley wheel base is about 1470mm. Self weight for Electric Handling Platform Truck is about 1350kg.
|
Model |
Unit |
QSD-CJPB-10 |
QSD-CJPB-20 |
QSD-CJPB-30 |
|
Load Cap |
kg |
1000 |
2000 |
3000 |
|
(L×W×H) |
mm |
3300×1600×1380 |
3800×1800×1980 |
5500×2200×1980 |
|
Side platform(L×W×H) |
mm |
3300×1000×500 |
3800×1200×700 |
5500×1600×750 |
|
Platform(L×W×H) |
mm |
2000×1600×500 |
2500×1800×700 |
4200×2200×750 |
|
Walking Speed(Empty)/（Full) |
km/h |
15/10Can be set as customer's requirements |
||
|
Turning Radius |
mm |
≤2700 |
≤3200 |
≤5200 |
|
Ground Clearance of Vehicle Body |
mm |
150 |
220 |
330 |
|
Braking Distance |
m |
≤1.5 |
||
|
Wheel Base |
mm |
1470 |
1950 |
3300 |
|
Self Weight |
kg |
1350 |
1750 |
2100 |
|
Tyre Model(Front) |
|
400-8×2 |
600-14×2 |
650-10×2 |
|
Tyre Model(Rear) |
|
400-8×2 |
600-14×2 |
650-10×2 |
|
Driving Motor(AC) |
kw |
4.2×1 |
6.3×1 |
8.5×1 |
|
Battery |
v/ah |
48/250 |
48/330 |
48/500 |
|
Brake Form |
|
Hydraulic foot brake,hand lever brake |
||
|
Controller |
|
CURTIS / INMOTION （AC） |
||
Jiangsu Anli Electric Vehicle Co., Ltd., formerly known as "Kunshan Anli Handling Machinery Factory", was founded in 2000, the company's main business, production and processing of various models, various specifications: Electric tractor, electric truck, electric tool car, electric stacker car, electric engineering car, Battery Tractor,electric tourism car, urban electric sanitation car, rail truck, trackless, Towing Trailer,unmanned truck and various models and specifications of electric forklift accessories, Battery Truck,mechanical and electrical equipment and accessories; At the same time also engaged in domestic and foreign various brands, various models of DC electric equipment maintenance and modification business.
