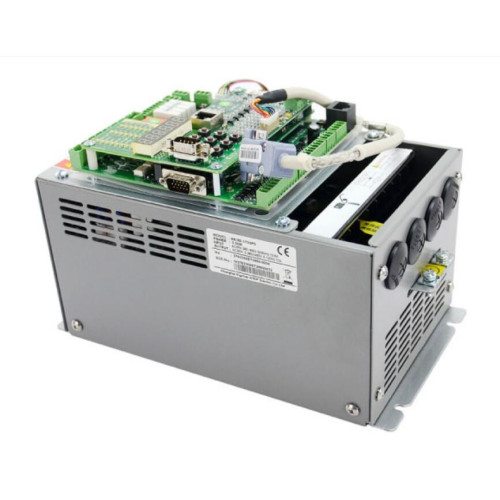

ELEVATOR CONTROL SYSTEM STEP AS380

STEP elevator integrated controller is an all-in-one controller and drive concept pioneered. The solution reduces cost and enhances reliability, and is suitable for passengers, freight and private residential elevators, as well as escalators and peripheral elevator devices. Key benefits include a small footprint; a single programming interface; fast, easy set-up; ride comfort with time-efficient direct landing, and enhanced safety.
We supply high quality controller system with more competitive price for all major elevator and escalator brands for KONE Elevators, Mitsubishi Elevators, Fujitec Elevators,OTIS Elevators, ThyssenKrupp Elevators, Hitachi Elevators,BLT Elevators, CANNY Elevators, SJEC Elevators, KOYO Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, LG Elevators, Hyundai Elevators,
Main Features
Prefect integration of control and drive of elevator leads to compact structure, few wiring, high reliability, easy operation and cost efficiency
Double 32-bit MCU combines the elevator control and motor control
Redundant safety design , double safety protection for control and drive
CAN bus communication make the whole system easily, fast and reliable.
Support traditional group control and destination dispatching control
Support one main contactor solution
Support gear and gearless motor
Use PIM module, lower loss in switch on and off and longer lifetime,
Creative Zero-speed torque compensation technology provides the elevators with good starting ride quality without installing weighing devices
Close-loop vector brings higher performance in control
New PWM dead-zone compensation technology brings less energy loss
Dynamic PWM carrier modulation technology brings less motor noise

As380 Step Inverter 2 Jpg As380 Step Inverter 3 Jpg Elevator Integrated Controller Jpg

Specification Data

Model AS380	Rated capacity (kVA)	Rated output current (A)	Rated power of motor (kW)	Model AS380	Rated capacity (kVA)	Rated output current (A)	Rated power of motor (kW)
200V-level				400V-level
2S01P1	2.3	6.0	1.1	4T01P1	2.7	3.5	1.1
2S02P2	4.6	12	2.2	4T02P2	4.7	6.2	2.2
2S03P7	6.9	18	3.7	4T03P7	6.9	9	3.7
2S05P5	9.5	25	5.5	4T05P5	8.5	13	5.5
2S07P5	12.6	33	7.5	4T07P5	14	18	7.5
2S00P11	17.9	47	11	4T0011	18	27	11
2S00P15	23	60	15	4T0015	24	34	15
2S18P5	29	75	18.5	4T18P5	29	41	18.5
2S00P22	32	80	22	4T0022	34	48	22
				4T0030	50	65	30
				4T0037	61	80	37
				4T0045	74	97	45
				4T0055	98	128	55
				4T0075	130	165	75

Technical Indicators

Item		Indicators
Maximum output voltage		Input voltage
Input power supply	Number of phases, voltage, and frequency	200V-level: ≤3.7kW single phase or three phase 220V 50/60Hz; > 3.7 kW three phase 220V, 50/60Hz 400V-level: three phase 380V, 50/60Hz
	Voltage range	-15%-+10%
	Frequency range	-5%~+5%
	Instantaneous voltage drop	200V-level: input voltage < AC180V, low-voltage protection after 15 ms running 400V-level: input voltage < AC300V, low-voltage protection after 15 ms running
Basic features	Floor number	2-64
	Elevator rated speed	≤4.00m/s
	Group control units	≤8 units
	Communication mode	CAN-Bus
Control features	Control mode	Close loop vector control
	Overload capacity	Zero speed, 150%;< 3Hz,160%; > 3Hz, 200%
	Braking torque	150% (External brake resistor), built-in brake unit
Protection grade		IP20
Installation mode		Installed in the cabinet

Installation Information

Model of AS380	A (mm)	B (mm)	H (mm)	W (mm)	D (mm)	Installation aperture < Φ (mm)	Installation			Tightening torque (Nm)	Mass (kg)
Model of AS380	A (mm)	B (mm)	H (mm)	W (mm)	D (mm)	Installation aperture < Φ (mm)	Bolt	Nut	Gasket	Tightening torque (Nm)	Mass (kg)
2S01P1 2S02P2 2S03P7	100	288.5	300	160	166	5.0	4M4	4M4	4φ4	2	4.5
2T05P5 2T07P5 2T0011	165.5	357	379	222	185	7.0	4M6	4M6	4φ6	3	8.2
2T0015 2T18P5 2T0022	165	440	465	254	261	7.0	4M6	4M6	4φ6	3	10.3
4T02P2 4T03P7 4T05P5	100	288.5	300	160	166	5.0	4M4	4M4	4φ4	2	4.5
4T07P5 4T0011	165.5	357	357	379	222	7.0	4M6	4M6	4φ6	3	8.2
4T0015 4T18P5 4T0022	165.5	392	414	232	192	7.0	4M6	4M6	4φ6	3	10.3
4T0030 4T0037	200	510	530	330	290	9.0	4M8	4M8	4φ8	6	30
4T0045	200	587	610	330	310	10.0	4M8	4M8	4φ8	9	42
4T0055	200	587	610	330	310	10.0	4M10	4M10	4φ10	14	42
4T0075	320	718	750	430	351	13.0	4M13	4M13	4φ13	29	79.5

Electric Components

·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.
