Elevator electric components elevator wire flat cable

Elevator electric components elevator wire flat cable

Get Latest Price

Min. Order:: 500 Meter

Min. Order:: 500 Meter

Transportation:: Ocean

Port:: FOB SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20000 meters/month
Supply Ability:	20000 Meter/Meters per month
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Certificate:	ISO, CE
HS Code:	8431310001
Transportation:	Ocean
Port:	FOB SHANGHAI

Product Description

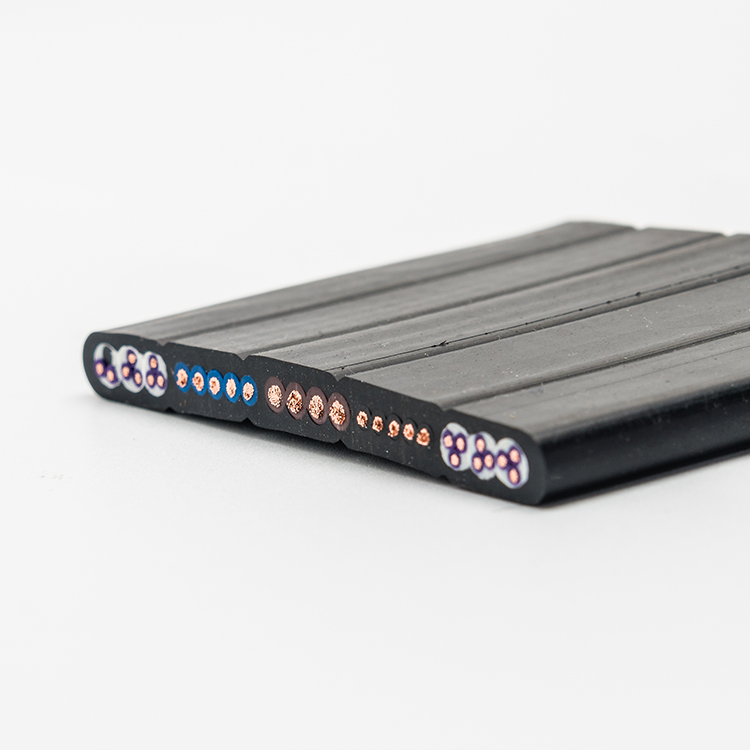

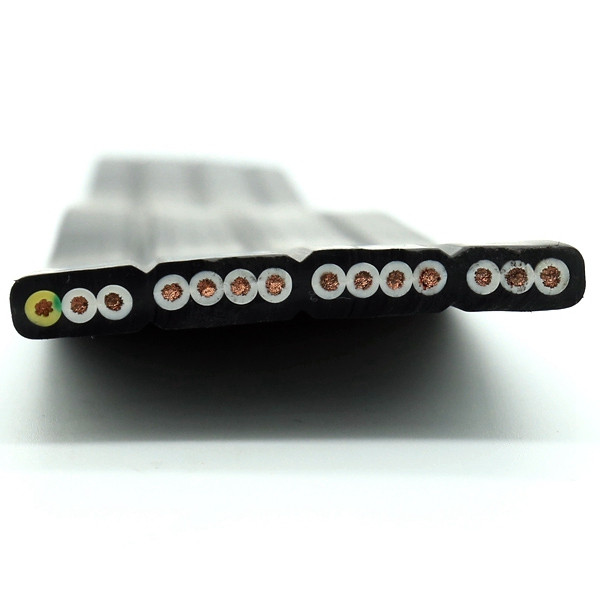

Elevator electric components elevator wire flat cable

Elevator travel cables are cables that are suitable for internal suspension of elevators. The free suspension length exceeds 80 meters and the moving speed does not exceed 10 meters per second. It has shielding, anti-interference ability, monitoring and serial communication functions.
Elevator cable / accompanying cable model: TVVB, TVVKP, TVVKG, TVVBP, TVVBG, TVVBPG, TVVK, YTB, YT, YTF, etc.
Other elevator spare parts can also be provided
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.

Conductor	Fine strands of bare copper wire acco.to VDE0295Class5
Insulation	Mixed PVC
Color	As your requirements
Sheath material	Pvc,cold and fame resistance
Bearing	Steel rope
Outer sheath	Flexible PVC, cold resistance,fame resistance
Clour	Grey
Three kinds of shielding	Aluminum foil, bare cooper
Rated Voltage	450/750V, test voltage:2500V

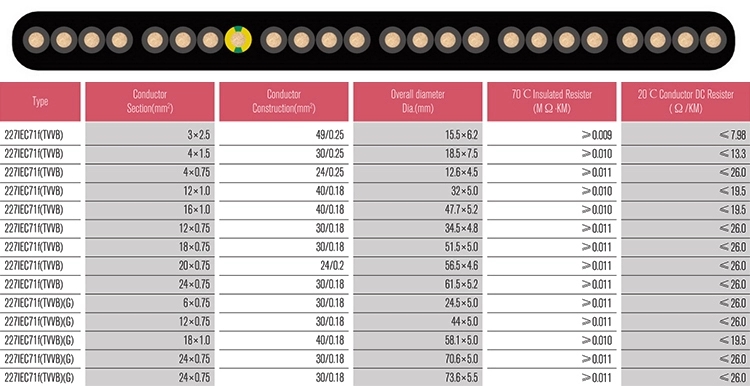

Product Paramenters

Type	Conductor Section(mm2)	Conductor Construction(mm2)	Overall diameter Dia.(mm)	70℃ Insulated Resister (M Ω·KM)	20℃ Conductor DC Resister (Ω/KM)
TVVB	20×0.75	30/0.18	29.9×9.0	≥0.011	≤26.0
TVVB	20×0.75	30/0.18	30.5×9.1	≥0.011	≤26.0

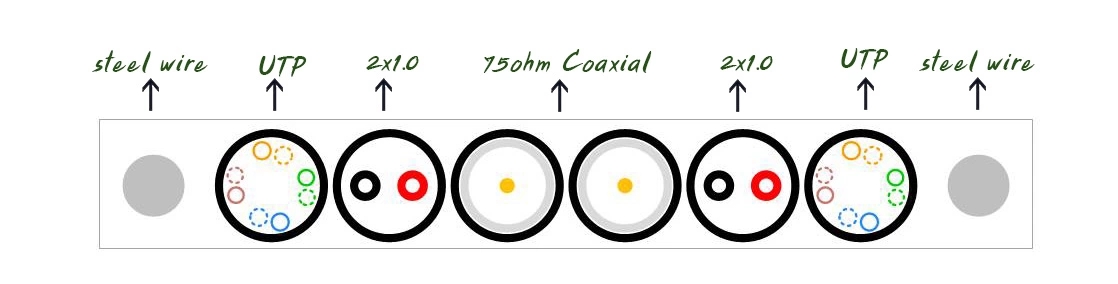

TVVBG	2×1.0+TV(SYV75-4)	7/0.24+50/0.16	15.8×7.6	≥0.010	≤19.5
TVVB	20×0.75+(2×2)×0.75	30/0.18	44.2×9.1	≥0.011	≤26.0
TVVB	36×0.75+(2×2)×0.75	30/0.18	62×10.0	≥0.011	≤26.0
TVVB	48×0.75+(2×2)×0.75	30/0.18	68.5×10.0	≥0.011	≤26.0
TVVBG	30×0.75	30/0.18	53×8.6	≥0.011	≤26.0
TVVBG	36×0.75	30/0.18	54.0×9.5	≥0.011	≤26.0
TVVBG	40×0.75	30/0.18	58×8.2	≥0.011	≤26.0
TVVBG	42×0.75	30/0.18	66.6×9.7	≥0.011	≤26.0
TVVBG	48×0.75	30/0.18	67.2×9.5	≥0.011	≤26.0
TVVBG	60×0.75	30/0.18	80.0×9.5	≥0.011	≤26.0
TVVB	30×0.75	30/0.18	44.2×9.1	≥0.011	≤26.0
TVVB	36×0.75	30/0.18	42.5×9.0	≥0.011	≤26.0
TVVB	40×0.75	30/0.18	5.25×9.0	≥0.011	≤26.0
TVVB	42×0.75	30/0.18	54.1×9.7	≥0.011	≤26.0
TVVB	48×0.75	30/0.18	58.0×9.6	≥0.011	≤26.0
