CE approved elevator control flat cable for sale

CE approved elevator control flat cable for sale

$10.00 - $100.00/Meter

Min. Order:: 500 Meter

Min. Order:: 500 Meter

Transportation:: Ocean

Port:: FOB SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	1000000 meters/month
Supply Ability:	20000 Meter/Meters per Year
Payment Type:	L/C,D/A,D/P,T/T,MoneyGram,Alibaba Trade Assurance
Certificate:	CE, ISO
HS Code:	8431310001
Transportation:	Ocean
Port:	FOB SHANGHAI

Product Description

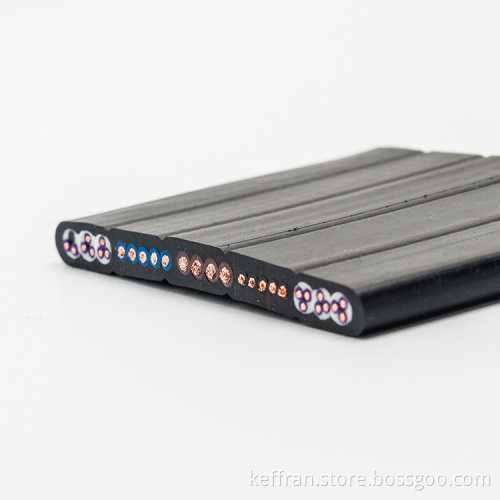

CE approved elevator control flat cable for sale

Elevator cables/travel cables are cables that are suitable for internal suspension of elevators. The free suspension length exceeds 80 meters and the moving speed does not exceed 10 meters per second. It has shielding, anti-interference ability, monitoring and serial communication functions.
Elevator cable / accompanying cable model: TVVB, TVVKP, TVVKG, TVVBP, TVVBG, TVVBPG, TVVK, YTB, YT, YTF, etc.
Other elevator spare parts can also be provided
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.

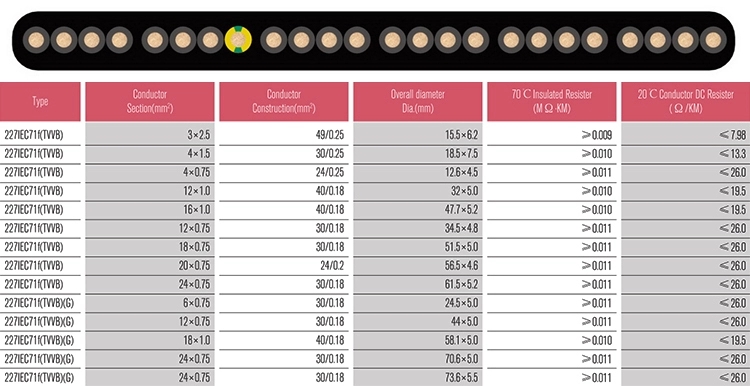

Type	Conductor Section(mm2)	Conductor Construction(mm2)	Overall diameter Dia.(mm)	70℃ Insulated Resister (M Ω·KM)	20℃ Conductor DC Resister (Ω/KM)
227IEC71f(TVVB)	3×2.5	49/0.25	15.5×6.2	≥0.009	≤7.98
227IEC71f(TVVB)	4×1.5	30/0.25	18.5×7.5	≥0.010	≤13.3
227IEC71f(TVVB)	4×0.75	24/0.25	12.6×4.5	≥0.011	≤26.0
227IEC71f(TVVB)	12×1.0	40/0.18	32×5.0	≥0.010	≤19.5
227IEC71f(TVVB)	16×1.0	40/0.18	47.7×5.2	≥0.010	≤19.5
227IEC71f(TVVB)	12×0.75	30/0.18	34.5×4.8	≥0.011	≤26.0
227IEC71f(TVVB)	18×0.75	30/0.18	51.5×5.0	≥0.011	≤26.0
227IEC71f(TVVB)	20×0.75	24/0.2	56.5×4.6	≥0.011	≤26.0
227IEC71f(TVVB)	24×0.75	30/0.18	61.5×5.2	≥0.011	≤26.0
227IEC71f(TVVB)(G)	6×0.75	30/0.18	24.5×5.0	≥0.011	≤26.0
227IEC71f(TVVB)(G)	12×0.75	30/0.18	44×5.0	≥0.011	≤26.0
227IEC71f(TVVB)(G)	18×1.0	40/0.18	58.1×5.0	≥0.010	≤19.5
227IEC71f(TVVB)(G)	24×0.75	30/0.18	70.6×5.0	≥0.011	≤26.0
227IEC71f(TVVB)(G)	24×0.75	30/0.18	73.6×5.5	≥0.011	≤26.0

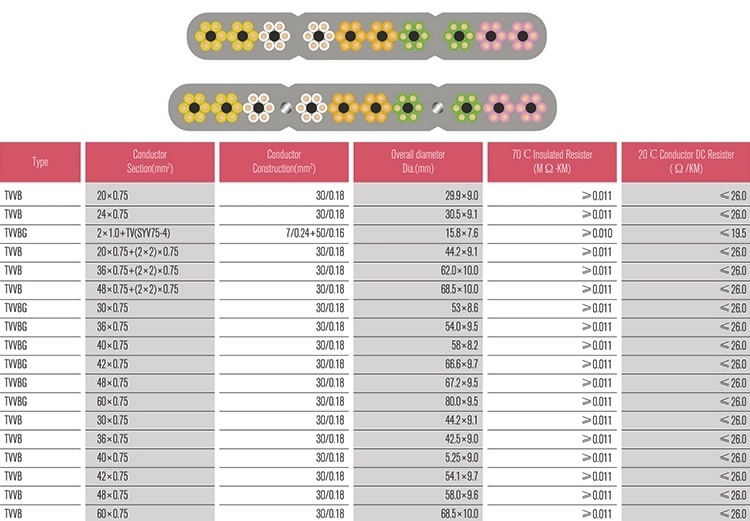

Type	Conductor Section(mm2)	Conductor Construction(mm2)	Overall diameter Dia.(mm)	70℃ Insulated Resister (M Ω·KM)	20℃ Conductor DC Resister (Ω/KM)
TVVB	20×0.75	30/0.18	29.9×9.0	≥0.011	≤26.0
TVVB	20×0.75	30/0.18	30.5×9.1	≥0.011	≤26.0
TVVBG	2×1.0+TV(SYV75-4)	7/0.24+50/0.16	15.8×7.6	≥0.010	≤19.5
TVVB	20×0.75+(2×2)×0.75	30/0.18	44.2×9.1	≥0.011	≤26.0
TVVB	36×0.75+(2×2)×0.75	30/0.18	62×10.0	≥0.011	≤26.0
TVVB	48×0.75+(2×2)×0.75	30/0.18	68.5×10.0	≥0.011	≤26.0
TVVBG	30×0.75	30/0.18	53×8.6	≥0.011	≤26.0
TVVBG	36×0.75	30/0.18	54.0×9.5	≥0.011	≤26.0
TVVBG	40×0.75	30/0.18	58×8.2	≥0.011	≤26.0
TVVBG	42×0.75	30/0.18	66.6×9.7	≥0.011	≤26.0
TVVBG	48×0.75	30/0.18	67.2×9.5	≥0.011	≤26.0
TVVBG	60×0.75	30/0.18	80.0×9.5	≥0.011	≤26.0
TVVB	30×0.75	30/0.18	44.2×9.1	≥0.011	≤26.0
TVVB	36×0.75	30/0.18	42.5×9.0	≥0.011	≤26.0
TVVB	40×0.75	30/0.18	5.25×9.0	≥0.011	≤26.0
TVVB	42×0.75	30/0.18	54.1×9.7	≥0.011	≤26.0
TVVB	48×0.75	30/0.18	58.0×9.6	≥0.011	≤26.0

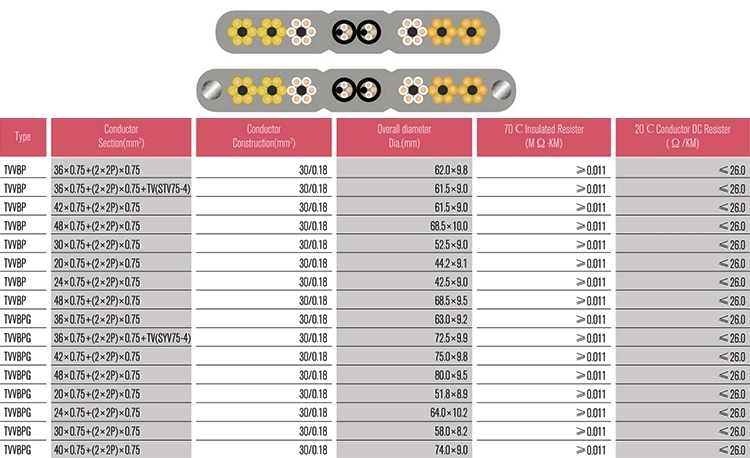

Type	Conductor Section(mm2)	Conductor Construction(mm2)	Overall diameter Dia.(mm)	70℃ Insulated Resister (M Ω·KM)	20℃ Conductor DC Resister (Ω/KM)
TVVBP	36×0.75+(2×2P)×0.75	30/0.18	62.0×9.8	≥0.011	≤26.0
TVVBP	36×0.75+(2×2P)×0.75+TV(STV75-4)	30/0.18	61.5×9.0	≥0.011	≤26.0
TVVBP	42×0.75+(2×2P)×0.75	30/0.18	61.5×9.0	≥0.011	≤26.0
TVVBP	48×0.75+(2×2P)×0.75	30/0.18	68.5×10.0	≥0.011	≤26.0
TVVBP	30×0.75+(2×2)×0.75	30/0.18	52.5×9.0	≥0.011	≤26.0
TVVBP	20×0.75+(2×2)×0.75	30/0.18	44.2×9.1	≥0.011	≤26.0
TVVBP	24×0.75+(2×2P)×0.75	30/0.18	42.5×9.0	≥0.011	≤26.0
TVVBP	48×0.75+(2×2P)×0.75	30/0.18	68.5×9.5	≥0.011	≤26.0
TVVBPG	36×0.75+(2×2P)×0.75	30/0.18	63.0×9.2	≥0.011	≤26.0
TVVBPG	36×0.75+(2×2P)×0.75+TV(SYV75-4)	30/0.18	72.5×9.9	≥0.011	≤26.0
TVVBPG	42×0.75+(2×2P)×0.75	30/0.18	75.0×9.8	≥0.011	≤26.0
TVVBPG	48×0.75+(2×2P)×0.75	30/0.18	80.0×9.5	≥0.011	≤26.0
TVVBPG	20×0.75+(2×2P)×0.75	30/0.18	51.8×8.9	≥0.011	≤26.0
TVVBPG	24×0.75+(2×2P)×0.75	30/0.18	64.0×10.2	≥0.011	≤26.0
TVVBPG	30×0.75+(2×2P)×0.75	30/0.18	58.0×8.2	≥0.011	≤26.0
TVVBPG	40×0.75+(2×2P)×0.75	30/0.18	74.0×9.0	≥0.011	≤26.0

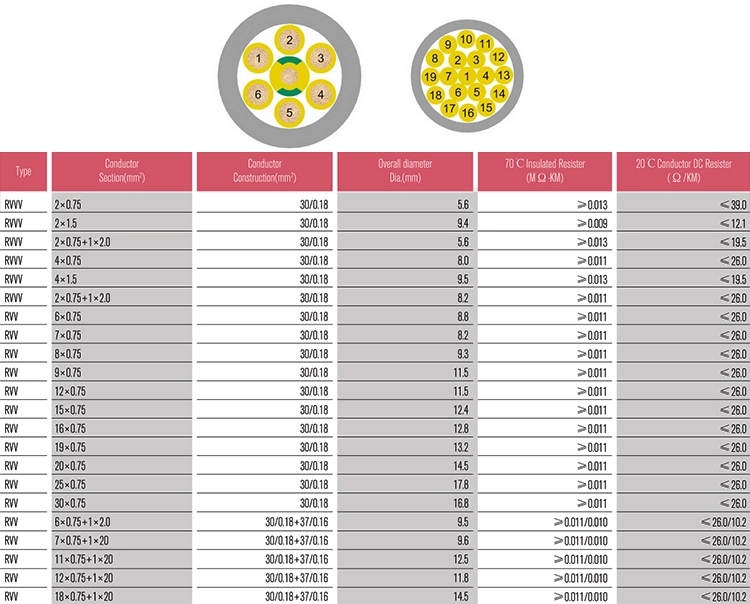

Type	Conductor Section(mm2)	Conductor Construction(mm2)	Overall diameter Dia.(mm)	70℃ Insulated Resister (M Ω·KM)	20℃ Conductor DC Resister (Ω/KM)
RVVV	2×0.75	30/0.18	5.6	≥0.013	≤39.0
RVVV	2×1.5	30/0.18	9.4	≥0.009	≤12.1
RVVV	2×0.75+1×2.0	30/0.18	5.6	≥0.013	≤19.5
RVVV	4×0.75	30/0.18	8.0	≥0.011	≤26.0
RVVV	4×1.5	30/0.18	9.5	≥0.013	≤19.5
RVVV	2×0.75+1×2.0	30/0.18	8.2	≥0.011	≤26.0
RVV	6×0.75	30/0.18	8.8	≥0.011	≤26.0
RVV	7×0.75	30/0.18	8.2	≥0.011	≤26.0
RVV	8×0.75	30/0.18	9.3	≥0.011	≤26.0
RVV	9×0.75	30/0.18	11.5	≥0.011	≤26.0
RVV	12×0.75	30/0.18	11.5	≥0.011	≤26.0
RVV	15×0.75	30/0.18	12.4	≥0.011	≤26.0
RVV	16×0.75	30/0.18	12.8	≥0.011	≤26.0
RVV	19×0.75	30/0.18	13.2	≥0.011	≤26.0
RVV	20×0.75	30/0.18	14.5	≥0.011	≤26.0
RVV	25×0.75	30/0.18	17.8	≥0.011	≤26.0
RVV	30×0.75	30/0.18	16.8	≥0.011	≤26.0
RVV	6×0.75+1×2.0	30/0.18+37/0.16	9.5	≥0.011/0.010	≤26.0/10.2
RVV	7×0.75+1×20	30/0.18+37/0.16	9.6	≥0.011/0.010	≤26.0/10.2
RVV	11×0.75+1×20	30/0.18+37/0.16	12.5	≥0.011/0.010	≤26.0/10.2
RVV	12×0.75+1×20	30/0.18+37/0.16	11.8	≥0.011/0.010	≤26.0/10.2
RVV	18×0.75+1×20	30/0.18+37/0.16	14.5	≥0.011/0.010	≤26.0/10.2
