Professional elevator electric components flat travel cable

Professional elevator electric components flat travel cable

$10.00 - $100.00/Meter

Min. Order:: 500 Meter

Min. Order:: 500 Meter

Transportation:: Ocean

Port:: FOB SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000 meters/week
Supply Ability:	20000 Meter/Meters per Year
Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Certificate:	ISO, CE
HS Code:	8431310001
Transportation:	Ocean
Port:	FOB SHANGHAI

Product Description

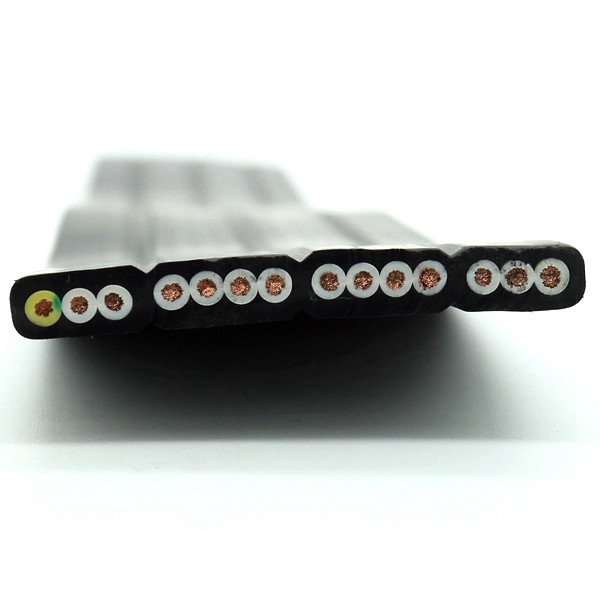

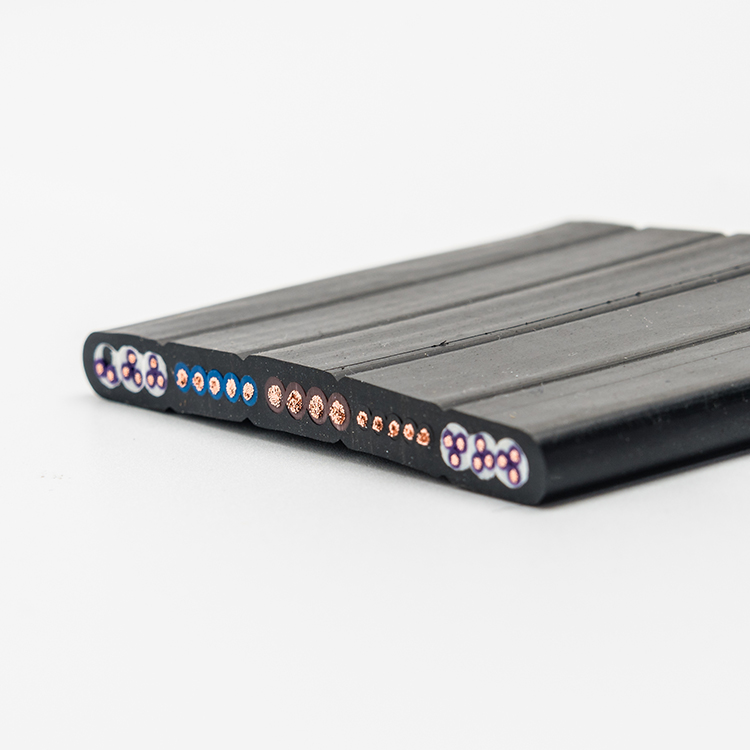

Professional elevator electric components flat travel cable

1. Working Temperature: -15℃-70℃ for PVC materials |-40℃-70℃ for LSOH materials
2. Conductor: Copper, IEC 60228 Class 5
3. Insulation Material: PVC/D IEC 60227-1 | LSOH, IEC 61034-2; IEC 60754-2; IEC 60332-3 B or C
4. Jacket Material: PVC/D IEC 60227-1 | LSOH, IEC 61034-2; IEC 60754-2; IEC 60332-3 B or C
5. Jacket Color: Black, Grey, Orange
6. Service Life(Run Times): ≥3 million times
7. Other structural cables: Available on request
We carry high quality traveling cables for all major elevator and escalator brands
for OTIS Elevators, ThyssenKrupp Elevators, KONE Elevators, Mitsubishi Elevators, Fujitec Elevators, Hitachi Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, LG Elevators, Hyundai Elevators, BLT Elevators, CANNY Elevators, SJEC Elevators, KOYO Elevators

Electric Components
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.

Conductor	Fine strands of bare copper wire acco.to VDE0295Class5
Insulation	Mixed PVC
Color	As your requirements
Sheath material	Pvc,cold and fame resistance
Bearing	Steel rope
Outer sheath	Flexible PVC, cold resistance,fame resistance
Clour	Grey
Three kinds of shielding	Aluminum foil, bare cooper
Rated Voltage	450/750V, test voltage:2500V

Product Paramenters

Type	Conductor Section(mm2)	Conductor Construction(mm2)	Overall diameter Dia.(mm)	70℃ Insulated Resister (M Ω·KM)	20℃ Conductor DC Resister (Ω/KM)
TVVB	20×0.75	30/0.18	29.9×9.0	≥0.011	≤26.0
TVVB	20×0.75	30/0.18	30.5×9.1	≥0.011	≤26.0
TVVBG	2×1.0+TV(SYV75-4)	7/0.24+50/0.16	15.8×7.6	≥0.010	≤19.5
TVVB	20×0.75+(2×2)×0.75	30/0.18	44.2×9.1	≥0.011	≤26.0
TVVB	36×0.75+(2×2)×0.75	30/0.18	62×10.0	≥0.011	≤26.0
TVVB	48×0.75+(2×2)×0.75	30/0.18	68.5×10.0	≥0.011	≤26.0
TVVBG	30×0.75	30/0.18	53×8.6	≥0.011	≤26.0
TVVBG	36×0.75	30/0.18	54.0×9.5	≥0.011	≤26.0
TVVBG	40×0.75	30/0.18	58×8.2	≥0.011	≤26.0
TVVBG	42×0.75	30/0.18	66.6×9.7	≥0.011	≤26.0
TVVBG	48×0.75	30/0.18	67.2×9.5	≥0.011	≤26.0
TVVBG	60×0.75	30/0.18	80.0×9.5	≥0.011	≤26.0
TVVB	30×0.75	30/0.18	44.2×9.1	≥0.011	≤26.0
TVVB	36×0.75	30/0.18	42.5×9.0	≥0.011	≤26.0
TVVB	40×0.75	30/0.18	5.25×9.0	≥0.011	≤26.0
TVVB	42×0.75	30/0.18	54.1×9.7	≥0.011	≤26.0
TVVB	48×0.75	30/0.18	58.0×9.6	≥0.011	≤26.0
