Elevator rope attachment stainless steel wire 10mm

Elevator rope attachment stainless steel wire 10mm

Get Latest Price

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000 pcs/year
Supply Ability:	10000 Piece/Pieces per Year
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Certificate:	ISO, CE
HS Code:	8431310001
Transportation:	Ocean,Land,Air,Express
Port:	SHANGHAI

Product Description

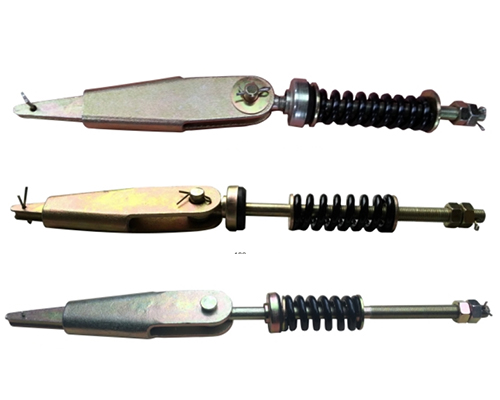

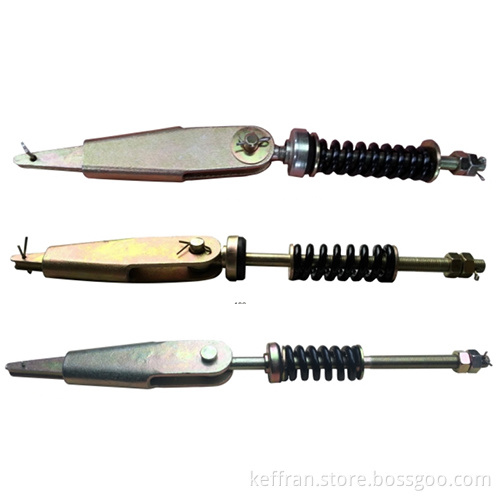

Elevator rope attachment stainless steel wire 10mm

1.All Rope attachment meets standard DIN15315 and DIN43148.
2.There are several types of our rope attachment,as self-lock(wedge-block type) ones,Lead poured type ones and rope fastening used in roomless lift.
3.Rope attachment parts can be made as casting and forged ones.
4.Passed the testing of the National Elevator Inspection and Testing Center and also being applied by many overseas elevator companies.

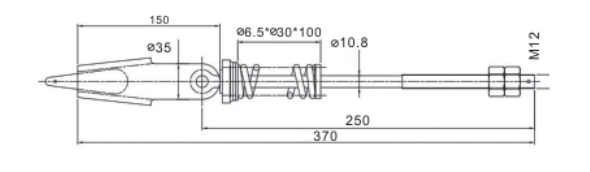

Active Rope Attachment

Wire Rope Diameter (mm)	Length (mm)	Spring Size (mm)
Φ6	M10x180	5x24x64
Φ8	M12x240	6.5x30x100
Φ10	M16x300	8.5x40x100
Φ13	M18x400	10x50x122

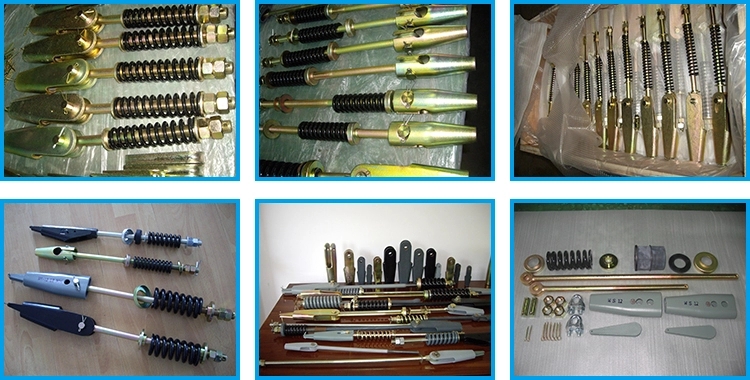

Details Images

Electric Components

·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
