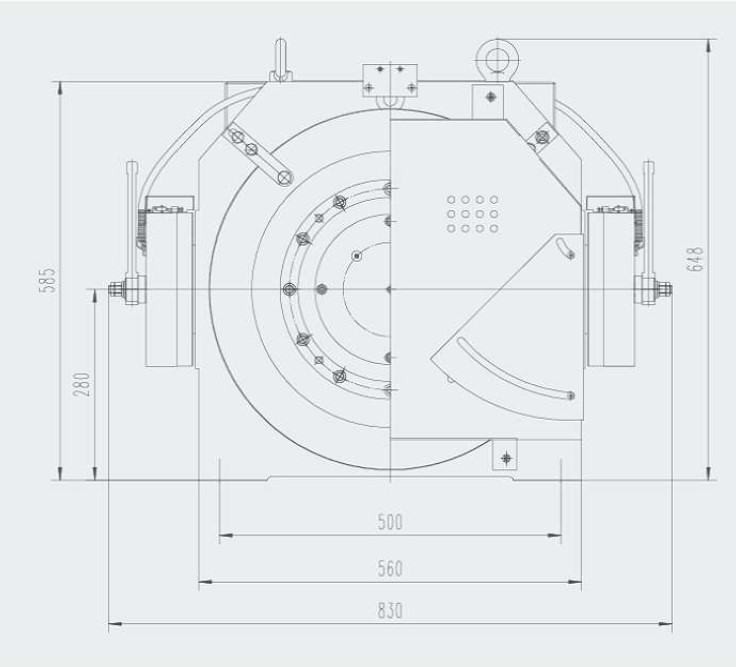

Gearless Traction Machine (MINI3 series)

Product Description

This series of gearless traction machine has unique external rotor construction so that the forces are applied to the machine reasonably. Excellent magnetic field design allows the machine to operate steadily with low noises and temperature rise.

It is provided with block brake, which has high braking torque and low closing noises.

Traction sheave is available in two pitch diameters 410mm and 480mm, and the encoder can be installed in various manners to meet different demands of customers.

The product is provided with manual brake release device and remote brake release device, and can be used in small machine room elevators and non-machine room elevators.

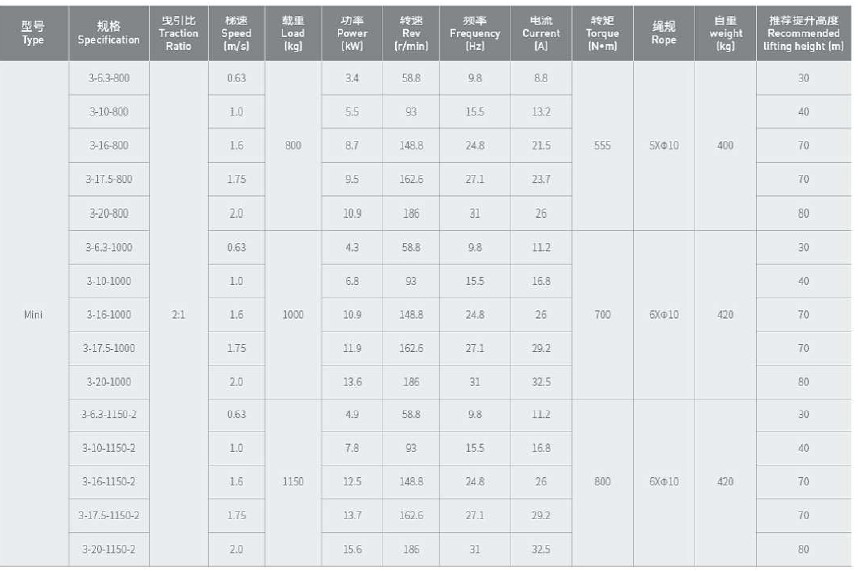

Product Characteristics

Traction ratio: 2:1

Rated capacity: 800, 1000, 1150kg

Rated elevator speed: 0.63, 1.0, 1.6, 1.75, 2.0m/s

Max. shaft load: 3000kg
Applicable converter: 3 phase 400V
Brake voltage:  DC110V
Number of motor poles: 20 poles
