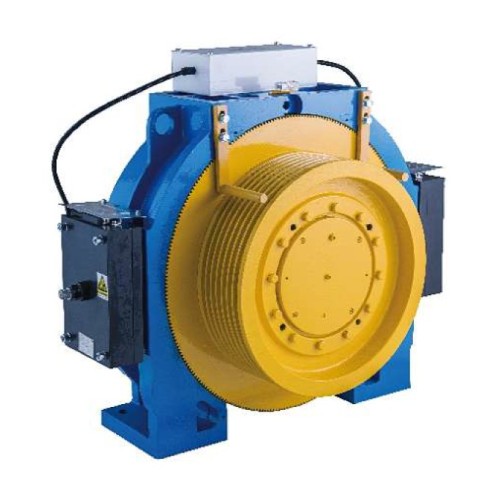

MINI.2 Series Gearless Traction Machine

Product Description

MIN12 is a med,um and high speed heavy load traction machine, suitable for machine room elevators for high building.

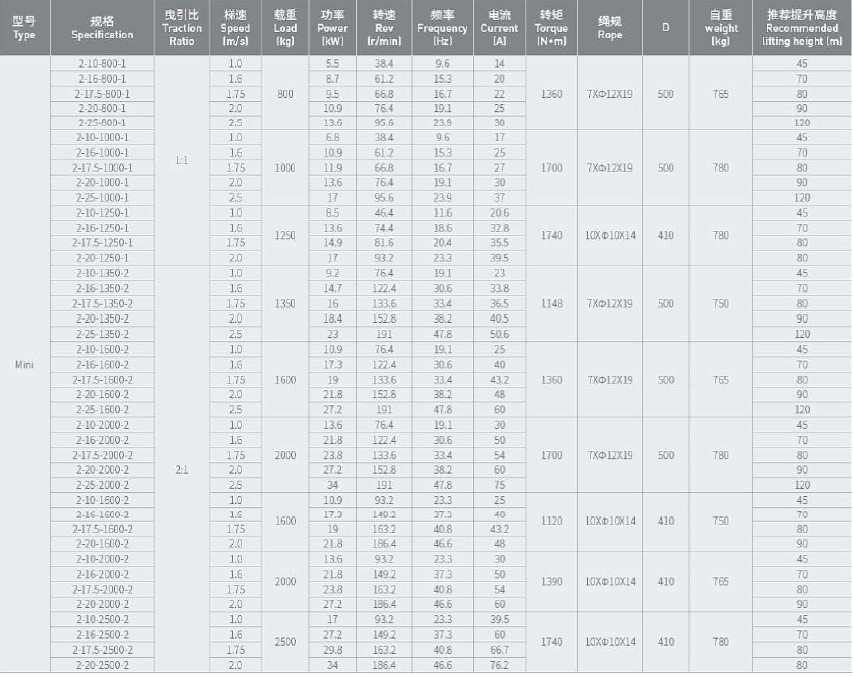

Product Characteristics

Traction ratio: 1:1, 2:1

Rated capacity: 800, 1000, 1250, 1350, 1600, 2000, 2500kg

Rated elevator speed: 1.0, 1.6, 1.75, 2.0, 2.5m/s

Max. lifting height: 120m

Max. shaft load: 6000kg
Applicable converter: 3 phase 400V
Brake voltage: DC110V
Number of motor poles: 30 poles

Other Electric Components can also be provided
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.

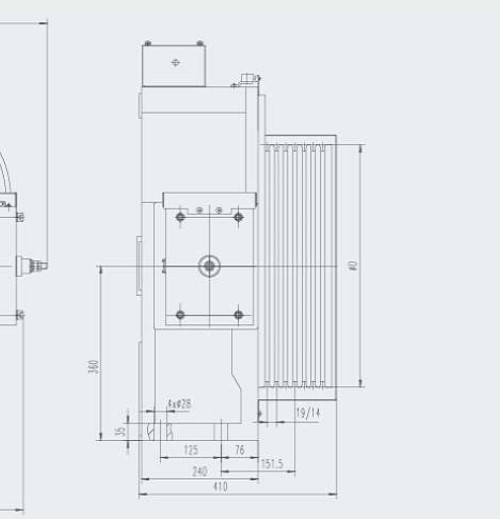

Mini 2 410 500 Series 1 Jpg
