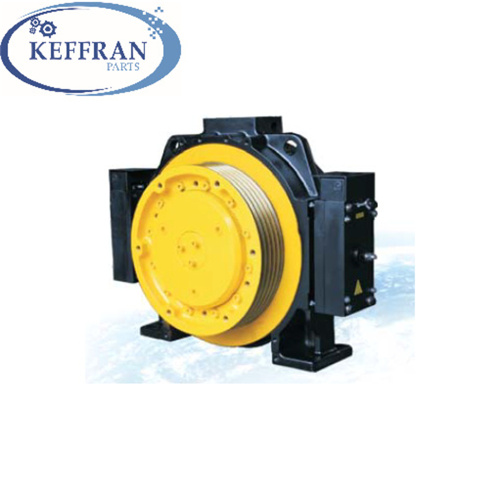

Gearless motor traction machine for elevators

1. Applicable balance coefficient: 0.4-0.5.

2. Standard encoder configuration: Sin-Cos Encoder.

3. Standard groove type: Undercut U type

Customer could calculate traction capacity according to its own configuration requirement.

4. Recommended lift travel height: within 60 times of elevator speed.

If exceed the above range, please confirm with our engineer.

5. Machine power is optional for some machines with AC380V or AC220V.

Please consult our sales manager if needed.

Rated Voltage: AC380V/AV220V

Brake Voltage: DC 110V

Roping: 2:1

Wrap: Single

Insulation: F

Protection: IP41

Travelling height ≤Rated speed * 60
Other Electric Components can also be provided
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
