Wittur High-speed elevator gearless traction machine
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Air, Express
- Port:
- FOB SHANGHAI
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 10000 Set/Year |
| Supply Ability: | 10000 Set/Sets per Year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,EXW |
| Certificate: | ISO, CE |
| HS Code: | 8425319000 |
| Transportation: | Ocean,Air,Express |
| Port: | FOB SHANGHAI |
Product Description
Product Description

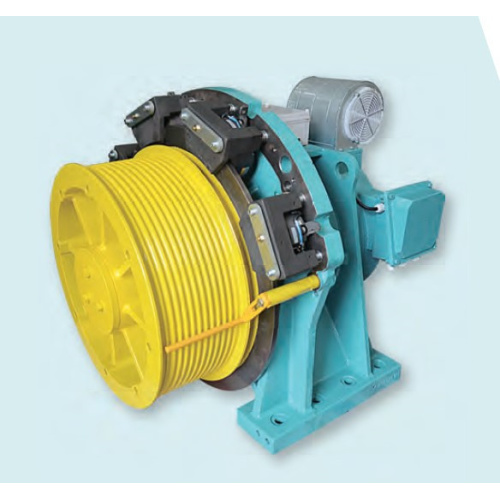

Wittur High-speed elevator gearless traction machine
Product Description
1. Provide outstanding passenger comfort for high-speed elevators
2. High efficiency, low energy consumption, low noise
3. Rated speed from 1.0m/s to 4.0m/s (traction ratio 2:1)
4. Robust structure, the maximum shaft load Fs at the traction wheel can reach 160kN
5. Type test according to EN81-1, GB7588 and GB24478, meet EN81-1: 2009 + A3:2009 and EN81-20/50, can be used as UCM brake unit
6. Independent control of each brake
7. Optional manual release device
8. Reliable connection of replaceable traction wheel and rotor
9. Traction wheel groove type designed according to the standard
10. Synchronous motor, 22-pole, protection class IP23, insulation class F (155 K)
11. 2.45 times overload capacity
12. Provide different encoder interfaces, such as HEIDENHAIN ECN1313 and ERN1387
13. Provide different speed, encoder line and traction wheel parameters
14. Recommended maximum lifting height 200m
Other Electric Components can also be provided
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
2. High efficiency, low energy consumption, low noise
3. Rated speed from 1.0m/s to 4.0m/s (traction ratio 2:1)
4. Robust structure, the maximum shaft load Fs at the traction wheel can reach 160kN
5. Type test according to EN81-1, GB7588 and GB24478, meet EN81-1: 2009 + A3:2009 and EN81-20/50, can be used as UCM brake unit
6. Independent control of each brake
7. Optional manual release device
8. Reliable connection of replaceable traction wheel and rotor
9. Traction wheel groove type designed according to the standard
10. Synchronous motor, 22-pole, protection class IP23, insulation class F (155 K)
11. 2.45 times overload capacity
12. Provide different encoder interfaces, such as HEIDENHAIN ECN1313 and ERN1387
13. Provide different speed, encoder line and traction wheel parameters
14. Recommended maximum lifting height 200m
Other Electric Components can also be provided
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
