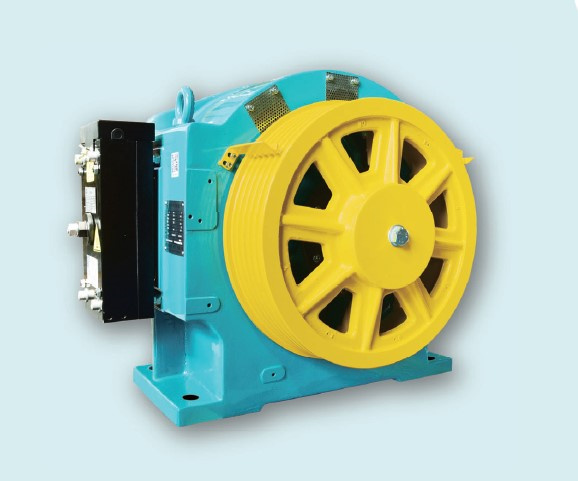

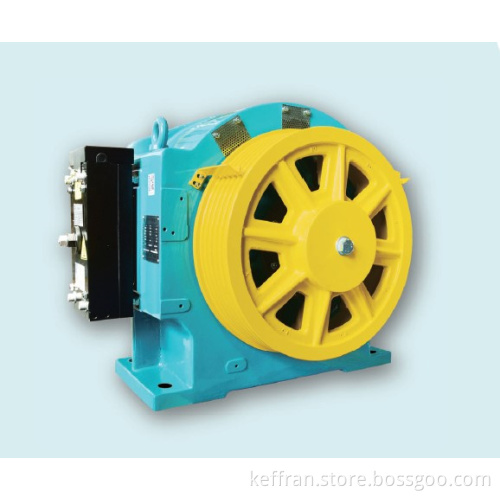

Wittur Lift parts traction machine for elevator

Wittur Lift parts traction machine for elevator

$1200.00 - $5000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: FOB SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000 Set/Year
Supply Ability:	10000 Set/Sets per Year
Payment Type:	L/C,T/T
Incoterm:	FOB,EXW
Certificate:	ISO, CE
HS Code:	8425319000
Transportation:	Ocean
Port:	FOB SHANGHAI

Product Description

Wittur Lift parts traction machine for elevator

Product Description

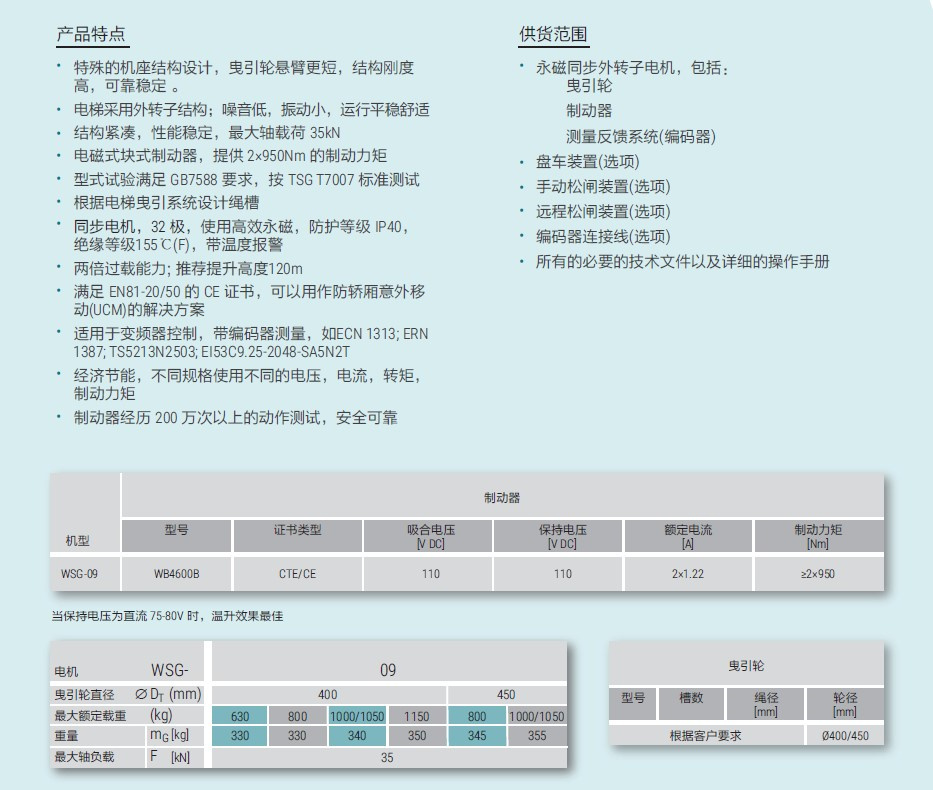

1. Special frame structure design, the traction wheel cantilever is shorter, the structure rigidity is high, it is reliable and stable.
2. The elevator adopts an outer rotor structure; low noise, low vibration, smooth and comfortable operation
3. Compact structure, stable performance, maximum shaft load 35kN
4. Electromagnetic block brake, providing 2×950Nm braking torque
5. The type test meets the requirements of GB7588 and is tested according to the TSG T7007 standard
6. Design the rope groove according to the elevator traction system
7. Synchronous motor, 32 poles, use high-efficiency permanent magnet, protection class IP40, insulation class 155℃(F), with temperature alarm
8. Twice the overload capacity; recommended lifting height 120m
9. Meet the CE certificate of EN81-20/50 and can be used as a solution to prevent accidental movement of the car (UCM)
10. Suitable for inverter control, with encoder measurement, such as ECN 1313; ERN1387; TS5213N2503; EI53C9.25-2048-SA5N2T
11. Economical and energy-saving, different specifications use different voltage, current, torque, braking torque
12. The brake has undergone more than 2 million action tests, which is safe and reliable

Electric Components

·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
