YJF100K Goods Elevator Traction Machine

$500.00 - $3000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: FOB SHANGHAI

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000 sets/year
Supply Ability:	10000 Set/Sets per Year
Payment Type:	L/C,T/T
Incoterm:	FOB,EXW,CIF
Certificate:	ISO, CE
HS Code:	8425319000
Transportation:	Ocean,Land
Port:	FOB SHANGHAI

Product Description

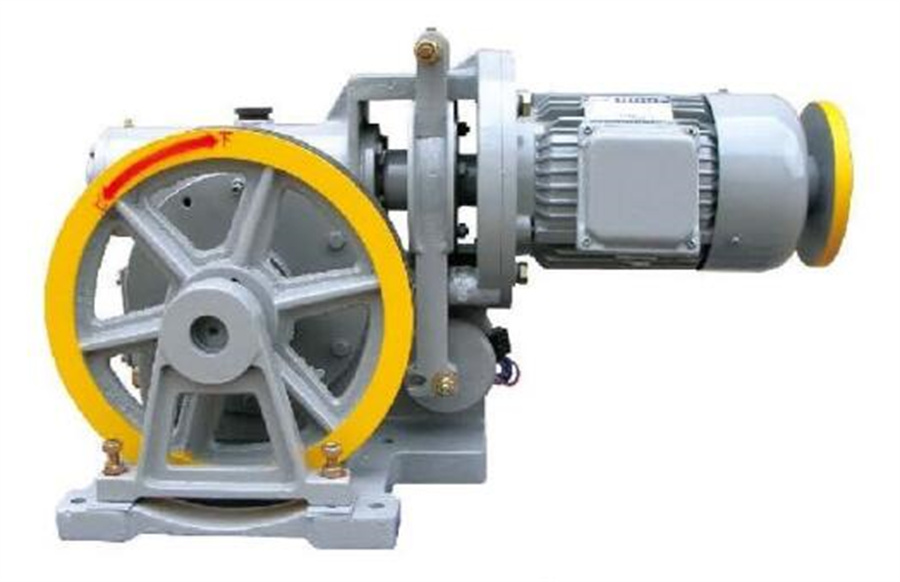

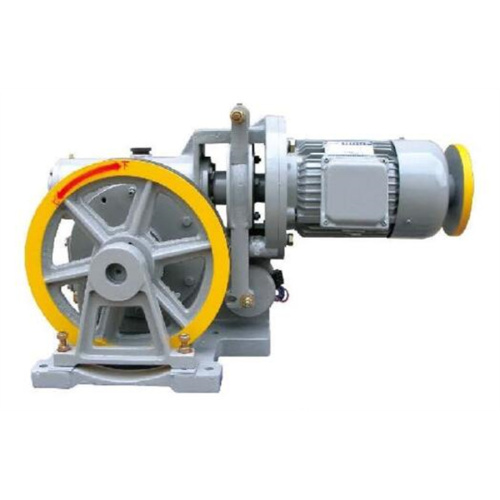

YJF100K Goods Elevator Traction Machine

Product Description

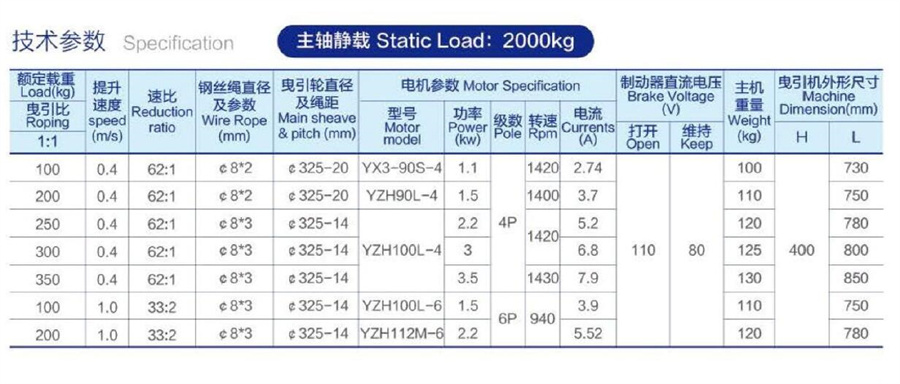

The load capacity of this model YJK100 is 100kg-200kg.
The speed range is 0.4m/s-1m/s.
The voltage is 380V/220V.
The power range is from 1.1-3.5kw.

The geared traction machine consists of a traction wheel, a reduction box and a brake wheel, and is used for low-speed and medium-speed elevators. Geared traction machines are widely used in various AC speed-regulated freight elevators, passenger elevators, and sundries elevators with a running speed of not more than 2m/s.

Other Electric Components

·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
