PAWO F 5e wire ropes for facade elevators

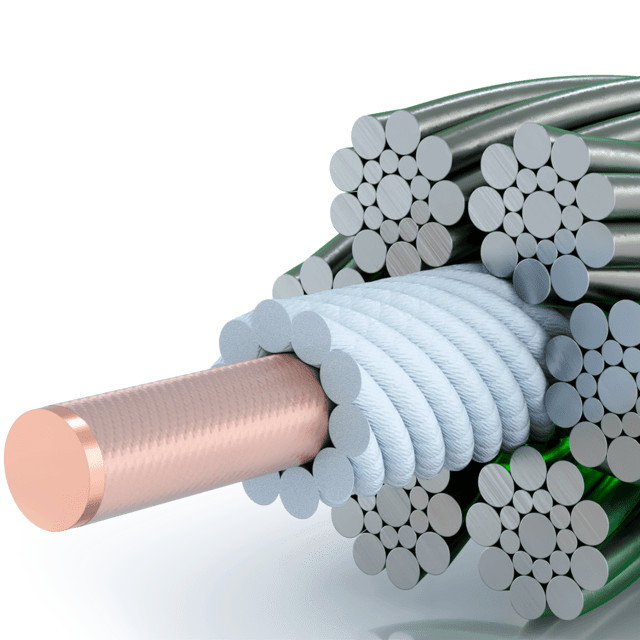

Special wire ropes with electrical conductors inside for exterior lifts
To perform control or work functions, these wire ropes contain one or more conductive cores.

Features
Galvanized
High number of bends
high flexibility
high service life

Structure: 114 steel wires, Xilu style (6×19), alternately twisted
Technical conditions according to DIN EN 12385, ISO 4344
Standard configuration of electrical conductors: 1 electrical conductor core (electrical conductor details)
Number of support wires in outer strands: 114
Nominal strength 1770 N/mm², galvanized steel wire
Wire rope diameter deviation: –0 + 3% at zero load

Steel wire ropes are one of the best choices for elevator applications owing to its two main features: redundancy and detectability.
Redundancy is very important for safety-relevant applications. If one of individual elements is broken, other elements will take on its function and remain in operation taking advantages of interaction between wires.
Detectability means the capacity to determine the end of service life and the degree of bending fatigue of running wires. As fatigue increase, more external wire breaks so that it is possible to estimate by visible inspection before the condition becoming dangerous.
Normally, elevator wire ropes feature parallel strand construction for reducing incidence of abrasion compared with ropes with cross laid construction. Meanwhile, they have a high fatigue bending life and less wear to running sheaves.
