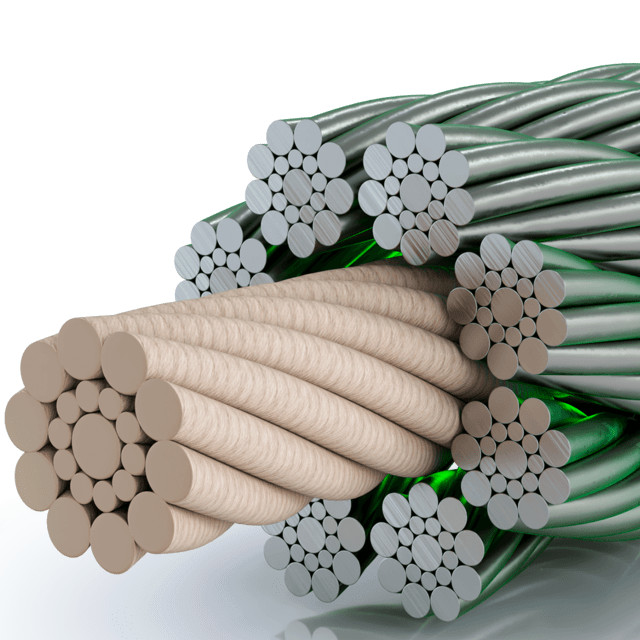

F819 S-FC-DT Hemp core elevator wire rope

This standard wire rope structure has been successfully used in elevators of various sizes around the world. The mixed-strength steel wire in the rope strands allows it to be used for very soft sheaves, so that the strength ratio between wire rope and sheave is more favorable for the sheave.
In the US in particular, the outer steel wire used has a lower nominal strength of only 1180 N/mm².

Features
Homemade hemp core
Ideal for low hardness traction sheaves
excellent durability
Light and flexible

Structure: 8 x 19, hemp core Xilu style, alternate twist
Technical conditions according to DIN EN 12385, ISO 4344; BS 302-4
Number of supporting wires in outer strands: 152
Nominal strength 1370/1770 MPa, smooth or galvanized steel wire

Steel wire ropes are one of the best choices for elevator applications owing to its two main features: redundancy and detectability.
Redundancy is very important for safety-relevant applications. If one of individual elements is broken, other elements will take on its function and remain in operation taking advantages of interaction between wires.
Detectability means the capacity to determine the end of service life and the degree of bending fatigue of running wires. As fatigue increase, more external wire breaks so that it is possible to estimate by visible inspection before the condition becoming dangerous.
Normally, elevator wire ropes feature parallel strand construction for reducing incidence of abrasion compared with ropes with cross laid construction. Meanwhile, they have a high fatigue bending life and less wear to running sheaves.
