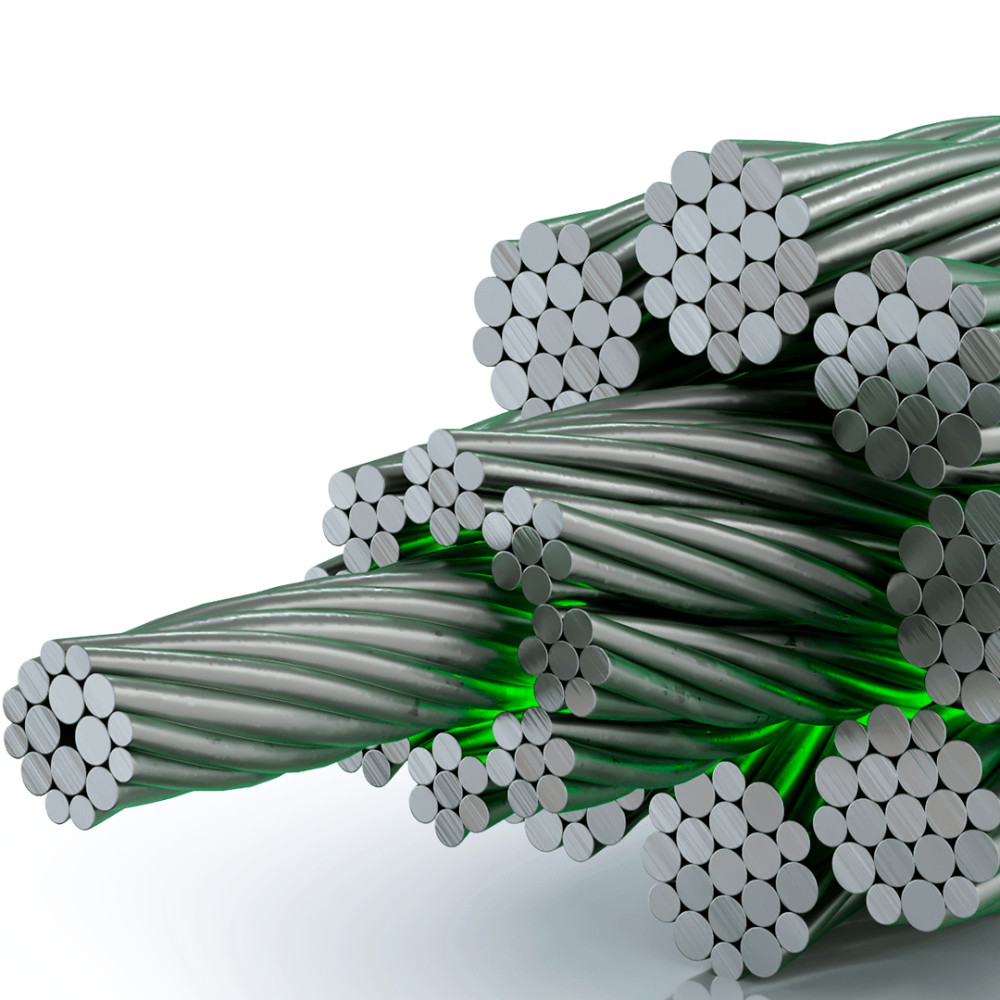

PAWO 819W Steel Wire Rope

The outer strands of this eight-strand wire rope have a Wallington structure. The extremely low elongation makes this wire rope ideal for use in hydraulic elevators. Its higher weight can also be used for weight compensation (for wire ropes Ø > 13 mm, see PAWO 836WS).

Features
high breaking strength
High flexibility
High number of bends
low wear rate
high service life

Construction: 8 x 19, Wallington, all steel core, alternate twist
Technical conditions according to DIN EN 12385, ISO 4344
Number of load-bearing wires in outer strands: 152
Nominal strength 1770 N/mm², smooth or galvanized steel wire

Steel wire ropes are one of the best choices for elevator applications owing to its two main features: redundancy and detectability.
Redundancy is very important for safety-relevant applications. If one of individual elements is broken, other elements will take on its function and remain in operation taking advantages of interaction between wires.
Detectability means the capacity to determine the end of service life and the degree of bending fatigue of running wires. As fatigue increase, more external wire breaks so that it is possible to estimate by visible inspection before the condition becoming dangerous.
Normally, elevator wire ropes feature parallel strand construction for reducing incidence of abrasion compared with ropes with cross laid construction. Meanwhile, they have a high fatigue bending life and less wear to running sheaves.
