Product Description

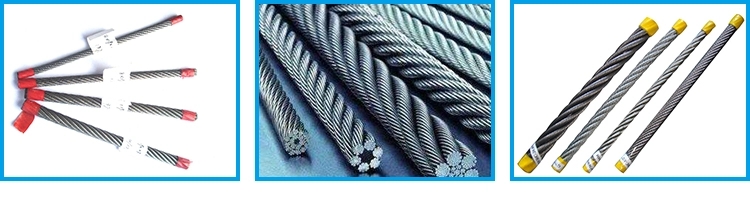

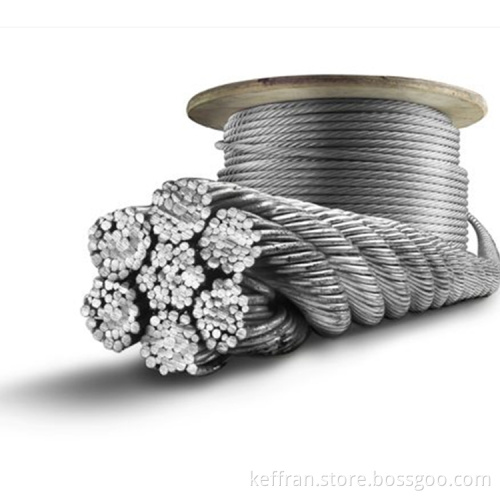

Steel Wire Rope For Elevator Price

Steel wire rope (SWR) has been used for many years as a major element in the elevator industry. Indeed, SWR has been applied for the suspension of elevators, as well as in compensation systems and as an important part of speed-governor systems. A wide range of SWRs has emerged, and many different configurations are in use. Some of the more common varieties of SWRs include left and right regular and Lang lay construction, using preformed and non-preformed arrangements. SWRs can be constructed of many different types of wire material, ranging from iron to high-tensile steel, including variations with corrosion-resistant properties. Strand constructions such as Warrington, Seale and filler are in common use, and various core materials such as natural and synthetic fiber, as well as independent wire rope, are also evident. SWRs with nominal Imperial dimensions, as well as metric varieties, are also deployed in North America and other parts of the world.

Electric Components
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.

Product Paramenters

1. This rope is for low speed, low duty elevators 2. If elevator with high speed, please contact us 3. We can also produce as customer's requirements 4. Above specifications just for your reference. Error may occur in actual situation.

Nominal Rope Diameter	6*19S+PP	Minimum Breaking Load
		Dual Tensile,Mpa			Single Tensile,Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

Natural fiber core(NFC): Suspension ropes for medium duty elevators Elevator speed≤20M/Ss, Building height≤60M

Nominal Rope Diameter	Approx Weight	Minimum Breaking Load
				Dual Tensile,Mpa			Single Tensile,Mpa
				1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

For IWRC, speed>4.0 m/s, Building height> 100m For TWRF,20< speed≤40m/ s, Building heigh≤100m

Nominal Rope Diameter	Approx Weight			Minimum Breaking Load
						Dual Tensile,Mpa
						1370/1770		1570/1770	1620/1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m			kN			kN
8	26	25.9	35.8	35.2	38	37.4
9	33	32.8	45.3	44.5	48.2	47.3
10	40.7	40.5	55.9	55	59.5	58.5
11	49.2	49	67.6	66.5	79.1	70.7
12	58.6	58.3	80.5	79.1	85.6	84.2
13	68.8	68.4	94.5	92.9	100	98.8
14	79.8	79.4	110	108	117	115
15	91.6	91.1	126	124	134	132
16	104	104	143	141	152	150
18	132	131	181	178	193	189
19	147	146	202	198	215	211
20	163	162	224	220	238	234
22	197	196	271	266	283	283

Nominal Rope Diameter	Approx Weight			Minimum Breaking Load
						Single Tensile,Mpa
						1570			1620	1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m		kN		kN		kN
8	26	25.9	35.8	35.2	36.9	35.2	40.3	39.6
9	33	32.8	45.3	44.5	46.7	45.9	51	50.2
10	40.7	40.5	55.9	55	57.7	56.7	63	62
11	49.2	49	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	80.5	79.1	83	81.6	90.7	89.2
13	68.8	68.4	94.5	92.9	97.5	98.5	106	105
14	79.8	79.4	110	108	113	111	124	121
15	91.6	91.1	126	124	130	128	142	139
16	104	104	143	141	148	145	161	159
18	132	131	181	178	187	184	204	201
19	147	146	202	198	208	205	227	224
20	163	162	224	220	231	227	252	248
22	197	196	271	266	279	274	305	300
