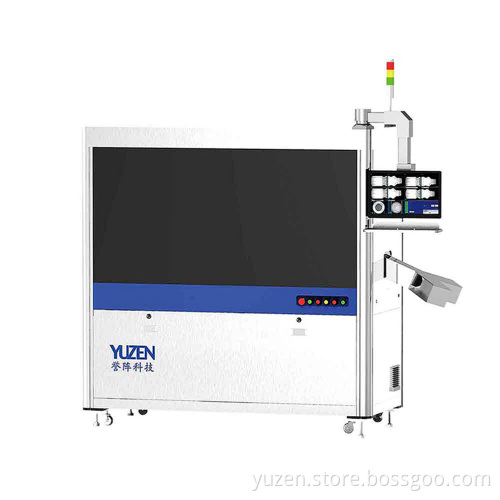

Milk bottle inspection machine

Milk bottle inspection machine

In order to reduce the outflow of defective Milk Bottle Vision System, enterprises need to increase the inspection process. The increase of quality inspection personnel also brings high labor costs, followed by management costs. Now, the intelligent defect detection system for beverage bottles provides a scientific solution to these problems.

一. Product features of Bottle Vision System:

1. The inspection machine can be connected to a single or multiple blow molding machines according to actual needs, or can be used independently;
2. The system detects black spots, dirt, lack of material, excessive glue, deformation, uneven thickness and other defects and automatically removes them online;
3. All-round inspection of bottle mouth, bottle body and bottle bottom;
4. The high-speed ultra-clear camera clearly identifies product defects and realizes high-speed and high-precision online inspection;
5. Configuration options: the number of cameras is 10-12, the accuracy is 0.1mm-0.3mm, and the speed is 180-600 pcs/min;
6. Applicable products: milk bottles, lactic acid bacteria bottles, soy milk bottles, yogurt bottles and other dairy plastic bottles.

二. Product advantages of Bottle Inspection Vision System:
1. Suitable for milk bottles, lactic acid bacteria bottles, soy milk bottles, yogurt bottles and other dairy plastic bottles;
2. All-round inspection of bottle mouth, bottle body and bottle bottom;
3. Detect defects such as flash, lack of material, black spots, dirt, uneven thickness, and deformation;
4. Dust removal, static removal function, 10,000-level purification environment inside the equipment;
5. The equipment operation is simple and easy to understand, and equipped with remote debugging function;
6. The software complies with GMP certification requirements, audit trails, and intelligent management;
7. Al deep learning algorithm is good at handling various complex detection items;
8. Special light source design cooperates with the system to detect the inside and outside of the product at the same time;
9. Equipped with 5-12 cameras according to different needs, and provide three models of low, medium and high speed at the same time;
10. Manual adjustment, semi-automatic adjustment, and automatic adjustment are available in three types.
