Yuzen Bottle cap inspection machines

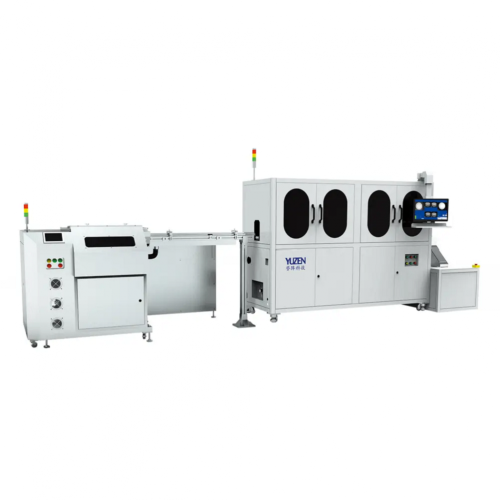

Medical Bottle Cap Inspection Machine

Easy to use: Medical bottle cap inspection machines are user-friendly and easy to operate. They have intuitive interfaces that allow operators to quickly and easily set up and adjust the inspection parameters.
Compact design: These machines are designed to take up minimal space on the production line. They have a compact footprint and can be easily integrated into existing production lines.

Product features of Yuzhen Technology Bottle Cap Inspection Machine:

The detection machine or Cap Inspection is equipped with a waterfall type cap sorting machine, which realizes automation from cover sorting to detection to counting and packaging.

The system Cap inspection machine detects the deformation, flashing, black spots, lack of material, gaskets and other defects of bottle caps and eliminates them online；

The detection position for  Cap inspection machine can be equipped with the top surface, bottom surface, inner/outer wall circumference of the cap；

One machine can detect multiple varieties of products, and the operation is simple and easy to understand；

Configuration options: Number of cameras 1-7, accuracy 0.1mm-0.3mm, speed 300-2000 pcs/min；

Applicable products: various specifications of medicine pack bottle caps。

Product advantages of medicinal bottle cap inspection machine:
01 .Applicable to the detection of medicinal solid bottle caps, medicinal ointment caps, eye drops caps, health care bottle caps, etc.
02 .All-round detection of top, bottom, inner and outer sides
03. Detect defects such as deformation, flashing, lack of material, black spots, dirt, bad gaskets and double gaskets
04 .Dust removal, static removal function, 10,000-level purification environment inside the equipment
05. The equipment operation is simple and easy to understand, and equipped with remote debugging function
06. The software complies with GMP certification requirements, audit trails, and intelligent management
07. Al deep learning algorithm is good at handling various complex inspection items
08. Specially equipped with 2-8 cameras according to different needs, and provide three models of low, medium and high speed at the same time
09 .One machine is compatible with products of various specifications, with counting and binning function
10. Provide two options of manual switching and automatic switching

Equipment parameters
