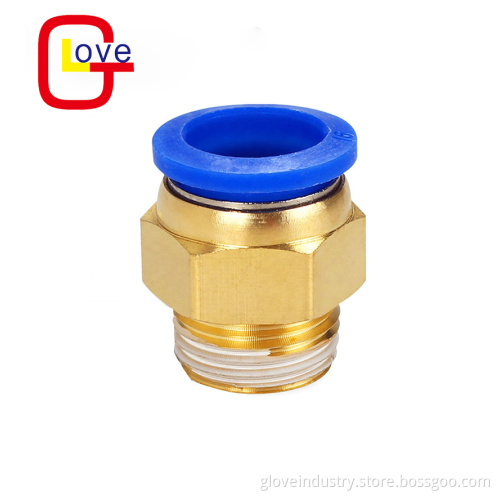

PC Straight One Touch pneumatic connector tube fitting

PC Straight One Touch pneumatic connector tube fitting

$0.08

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	100000 per month
Supply Ability:	100000 pcs per month
Payment Type:	T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001
HS Code:	3917400000
Transportation:	Ocean,Air,Express
Port:	Shanghai,Ningbo

Product Description

Pneumatic Connector, Plastic Pneumatic Connector, Pneumatic Quick Connector

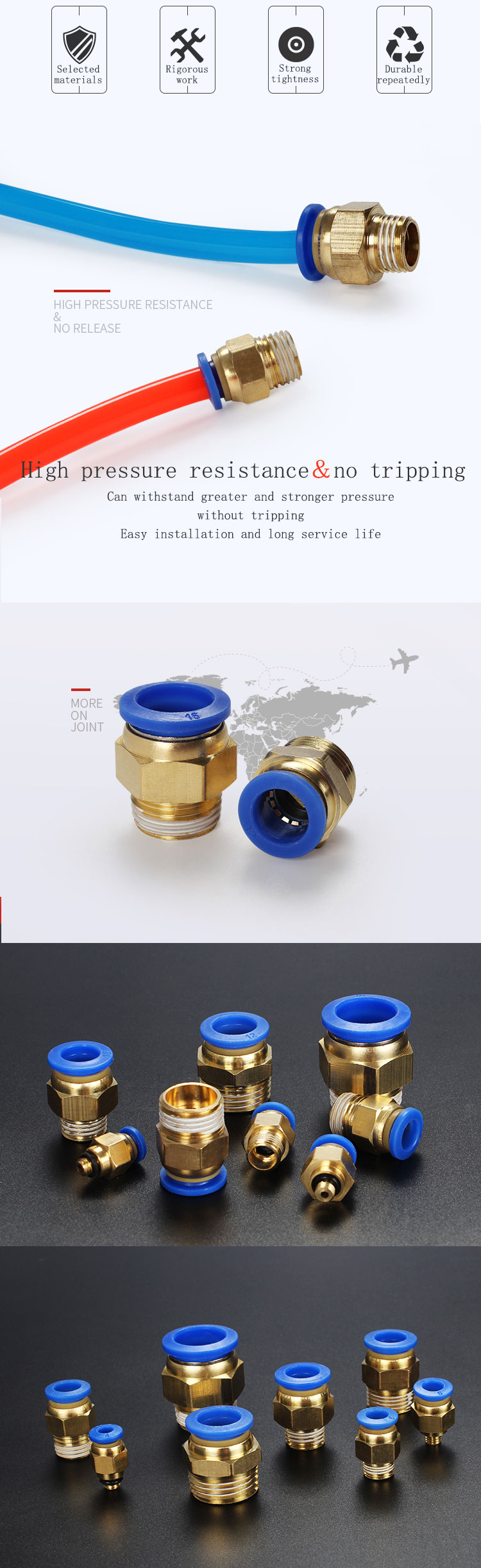

Quick plug connector is the most convenient plug and play connection mode, especially in some air pipe connection is very inconvenient, difficult space occasions, can reflect the advantages of quick plug connector.
The quick change connector of the intubation tube can be easily inserted into the connector or pulled out with only one hand without any tools, and the sealing property is good, and these connectors can ensure that the tube can be repeatedly inserted or pulled out.

PC series PC4-M5 Straight male One Touch push to connect pneumatic connector PC4-M6

Product Description

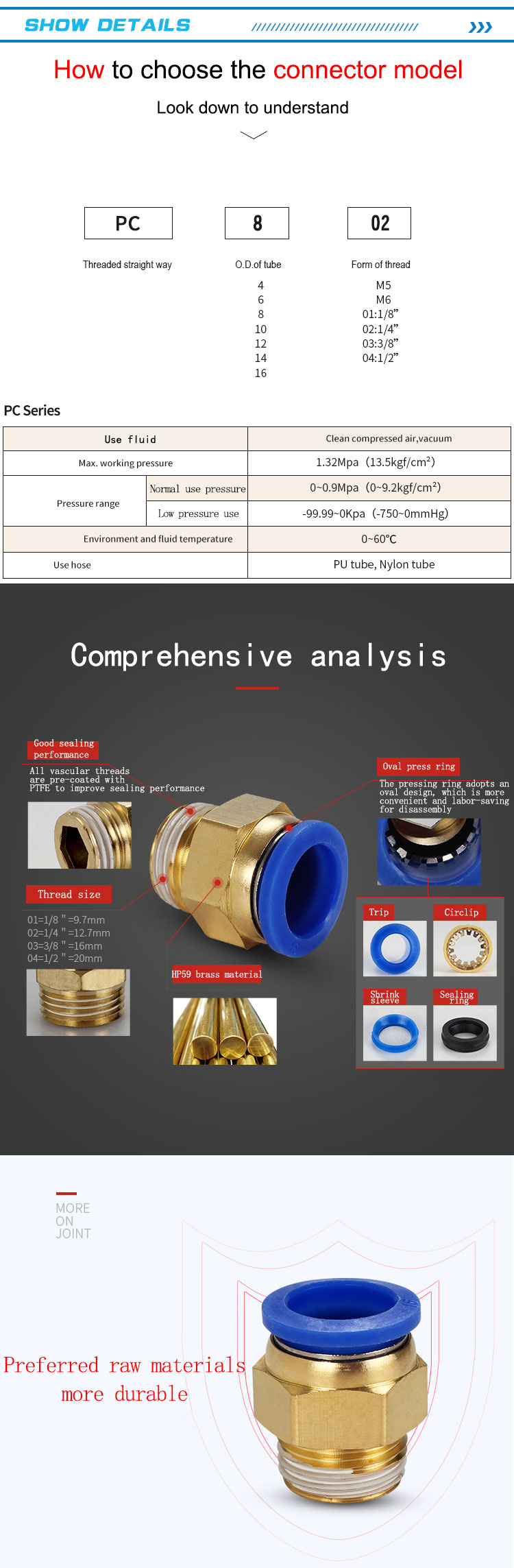

Model No.

PC4-M5	PC10-01	For example:PC6--01(G)(1)(2)(3)(4)
PC4-01	PC10-02	(1)Model: PC
PC4-02	PC10-03	(2) Tube OD(mm)
PC4-03	PC10-04	Metric: 3/4/5/6/7/8/9/10/11/12/13/14/15/16
PC6-M5	PC12-01	English: 1/8'' 5/32'' 3/16'' 1/4'' 5/16'' 3/8'' 1/2''
PC6-01	PC12-02	(3)Thread Size
PC6-02	PC12-03	Metric: M3/M5/M6/M8/M10/M12/M14/M16/M22
PC6-03	PC12-04	English: 01:1/8'' 02:1/4'' 03:3/8'' 04:1/2''
PC6-04	PC14-03	(4)Inch thread form:
PC8-01	PC14-04	Default: BSP(BSPP/G)
PC8-02	PC16-02	(PT): BSPT(R)
PC8-03	PC16-03	(N): NPT(Z)
PC8-04	PC16-04

PC series PC4-M5 Straight male One Touch push to connect pneumatic connector PC4-M6

Specifications:

Male Thread Size	BSP 1/8''
Medium	Air - Water - Vacuum
Apply For	8mm tube/hose
Applicable Tube	PU / PA / PE / PVC
BSP Thread Data	1/8" BSP thread---------Thread Outside Diameter: 9.728mm 1/4" BSP thread---------Thread Outside Diameter: 13.157mm 3/8" BSP thread---------Thread Outside Diameter: 16.662mm 1/2" BSP thread---------Thread Outside Diameter: 20.955mm 3/4" BSP thread---------Thread Outside Diameter: 26.441mm 1" BSP thread-----------Thread Outside Diameter: 33.249mm
Note	1.Due to the difference between different monitors, the picture may not reflect the actual color of the item. 2.Pay attention to the column of size and color, you could find a variety of product types and quantities for your choice,the more your purchase the best price you get. Thank you!
