Straight-through Straight PM Pneumatic Connector

Pneumatic Connector, Plastic Pneumatic Connector, Pneumatic Quick Connector

Quick plug connector is the most convenient plug and play connection mode, especially in some air pipe connection is very inconvenient, difficult space occasions, can reflect the advantages of quick plug connector.
The quick change connector of the intubation tube can be easily inserted into the connector or pulled out with only one hand without any tools, and the sealing property is good, and these connectors can ensure that the tube can be repeatedly inserted or pulled out.

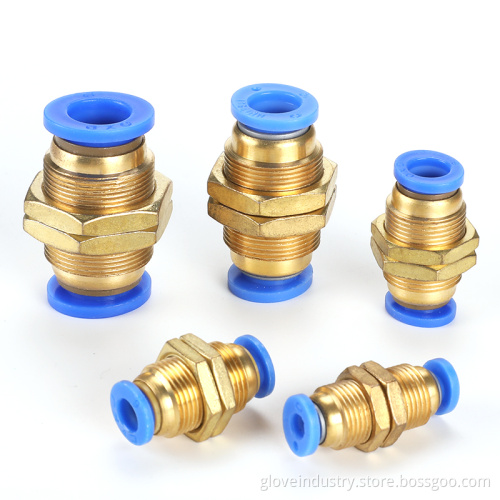

PM bulkhead union Pneumatic Plastic and Brass Straight Fitting Round Air Tube Connector

Product Description



PM-	8
<1>	<2>
<1>Model:PM
<2> Tube Out Diameter(mm)
Metric Size(mm)      4/5/6/7/8/9/10/11/12/13/14/15/16
Inch Size(mm)          5/32"   3/16"   1/4"   5/16"   3/8"   1/2"

Work Fluid			Clean compressed air, Vacuum
Thread Type			M Thread, G Thread, PT Thread, etc
Tube Type			Metric & Inch
High Operating Pressure			1.6 MPa
Pressure Range			0 ~ 0.9 MPa
Ambient & Fluid Temperature			0 ~ 80 ℃
Sleeve Color			NPT, PT, G, etc
Recommendede Tubes			PU Tube, Nylon Tube, etc
