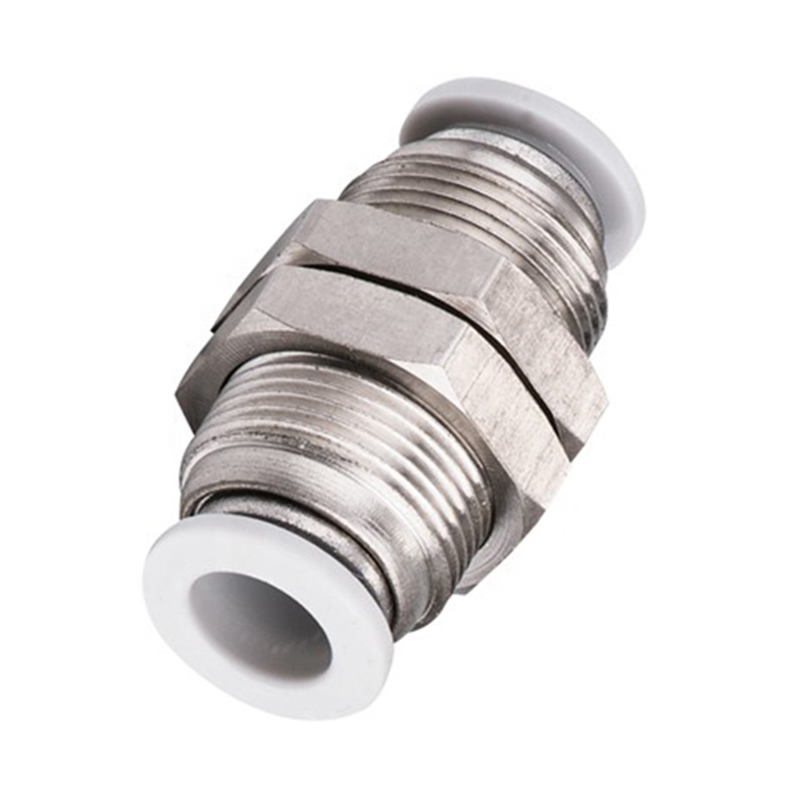

PM bulkhead Pneumatic Straight Fitting Connector

Pneumatic Connector, Plastic Pneumatic Connector, Pneumatic Quick Connector

The pipe joint has a series of advantages such as advanced structure, good performance, convenient use, no welding and no need to expand the tubing. Therefore, the sleeve type pipe joint has been widely used in various hydraulic and pneumatic systems of machinery.

1. Fast installation, simple and dexterous, saving space 2. Various forms, to meet the needs of any pneumatic pipe. 3. Even after installation, the plastic pipe can also be arbitrarily turned. 4. The release ring adopts oval design, which is more labor-saving and convenient to remove. 5. All taper pipe threads are pre coated with PTFE leak proof adhesive, with good sealing performance

PM bulkhead Pneumatic Straight Fitting Connector

PM bulkhead union Pneumatic Plastic and Brass Straight Fitting Round Air Tube Connector

Product Description



PM-	8
<1>	<2>
<1>Model:PM
<2> Tube Out Diameter(mm)
Metric Size(mm)      4/5/6/7/8/9/10/11/12/13/14/15/16
Inch Size(mm)          5/32"   3/16"   1/4"   5/16"   3/8"   1/2"

Work Fluid			Clean compressed air, Vacuum
Thread Type			M Thread, G Thread, PT Thread, etc
Tube Type			Metric & Inch
High Operating Pressure			1.6 MPa
Pressure Range			0 ~ 0.9 MPa
Ambient & Fluid Temperature			0 ~ 80 ℃
Sleeve Color			NPT, PT, G, etc
Recommendede Tubes			PU Tube, Nylon Tube, etc
