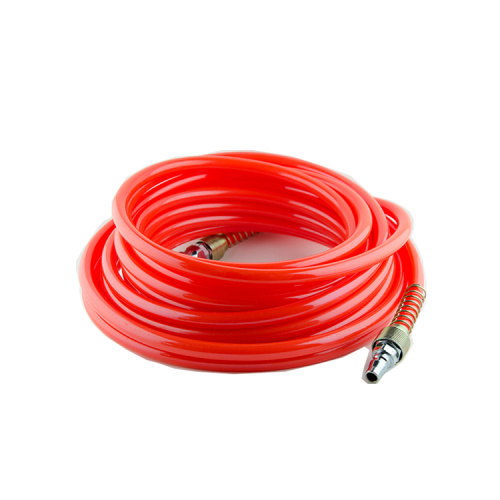

6mm Air Hose Plastic PU Pneumatic Tube

$10.00

≥100 Roll

Min. Order:: 100 Roll

Min. Order:: 100 Roll

Transportation:: Ocean, Air, Express

Port:: shanghai, ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	jiangsu
Productivity:	10000 rolls per month
Supply Ability:	10000 roll per month
Payment Type:	T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001
HS Code:	3917320000
Transportation:	Ocean,Air,Express
Port:	shanghai,ningbo

Product Description

Pneumatic Air Fittings PU Hose Tube Polyurethane Pipe

6mm Air Hose Plastic PU Pneumatic Tube

Pu Pneumatic Pipe,Pu Air Hose,Pu Pneumatic Hose,Pneumatic Spring Hose, Pu Pneumatic Hose Tubing

1.PU Tube Pneumatic Polyurethane PU Hose Advantages

Polyurethane hoses (also called PU hoses, PU Tubing) are particularly abrasion-resistant and durable plastic hoses. Polyurethane (PU) Tubing is an Ester based polyurethane tubing which has outstanding characteristics when compared with other pneumatic tubing. PU Tubing is extremely flexible and offers excellent bend capabilities and excellent abrasion resistance, making it ideal for pneumatic control or robotic systems.
Polyurethane Tubing is suited for use with push in fittings; compression fittings; quick-fit fittings and hose tails. Polyurethane tubing offers increased flexibility, resistance to kinking and a broad temperature range.PU Tubing is resistant to many chemicals, gases and oil . It is not suitable for use high humidity environments.Polyurethane combines the best properties of both plastic and rubber. It offers abrasion and tear resistance, high tensile and elongation values, and low compression set. Polyurethane is naturally flexible and exhibits virtually unlimited flexural abilities.Combining good chemical resistance with excellent weathering characteristics sets polyurethane apart from most other thermoplastics. It has exceptional resistance to most gasolines, oils, kerosene, and other petroleum-based chemicals, making PU tubing and hose/ PUR tubing and hose.

2.PU Tube Pneumatic Polyurethane PU Hose Featuers

Material	Polyester Polyurethane
Hardness	95A-98A
Fluid Admitted	Air/Gas/Water/Fluids
Temperature	-20℃ - +80℃
Features	Excellent pressure resistance, weather resistance, corrosion resistance and great flexibility
Application	Industrial automation, pneumatic tools, tube for water and fluids, vacuum tubes, protective sleeve for metal and electronic products.

Polyester Polyurethane Hose Pneumatic PU Hose

3.PU Tube Pneumatic Polyurethane PU Hose Specification

Item No	D1	D2	L	Net Weight (Kg Roll)	MAX working pressure at 20℃(bar)	MAX burst pressure at 20℃(bar)	MAX bend radius pressure at 20℃(mm)
PU-0320	3mm	2mm	200m	1.4	10bar	30bar	10mm
PU-0425	4mm	2.5mm	200m	1.9	10bar	30bar	10mm
PU-0640	6mm	4mm	200m	3.9	10bar	30bar	15mm
PU-0855	8mm	5.5mm	100m	3.3	8bar	24bar	20mm
PU-0850	8mm	5mm	100m	3.8	10bar	30bar	20mm
PU-1065	10mm	6.5mm	100m	5.6	10bar	30bar	30mm
PU-1280	12mm	8mm	100m	7.8	10bar	30bar	35mm
PU1410	14mm	10mm	100m	9.4	8bar	24bar	55mm
PU-1612	16mm	12mm	100m	11	8bar	24bar	65mm
PU-5/32	3.94mm	2.5mm	200m	1.9	10bar	30bar	10mm
PU-1/4	6.35mm	4.23mm	200m	4.4	10bar	30bar	15mm
PU-5/16	7.94mm	5mm	100m	3.8	10bar	30bar	20mm
PU-3/8	9.52mm	6.35mm	100m	4.9	10bar	30bar	30mm
PU-1/2	12.7mm	8.46mm	100m	8.8	10bar	30bar	35mm
