Engine speed governor control panel electric generator

Engine speed governor control panel electric generator

$40.00

≥100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	10000 pcs per month
Supply Ability:	10000 pcs per month
Payment Type:	T/T
Incoterm:	FOB
Certificate:	ISO9001
HS Code:	84799090.90
Transportation:	Ocean,Air
Port:	shanghai

Product Description

Electronic Automatic Speed Controller,Engine Speed Governor,Generator Speed Control Unit,Dc Speed Electric Motor Controller

How to control the speed of the motor, the solution:
Now the frequency conversion method is widely used, through the frequency converter to change the motor running frequency and change the motor speed.
The frequency of the frequency converter can be set at will, different output frequency motor will have different speed.
In addition, DC motor, reduce voltage, AC motor, reduce AC frequency., Stepper motor, modify the stepper signal can achieve the effect of controlling motor speed.

Description----------

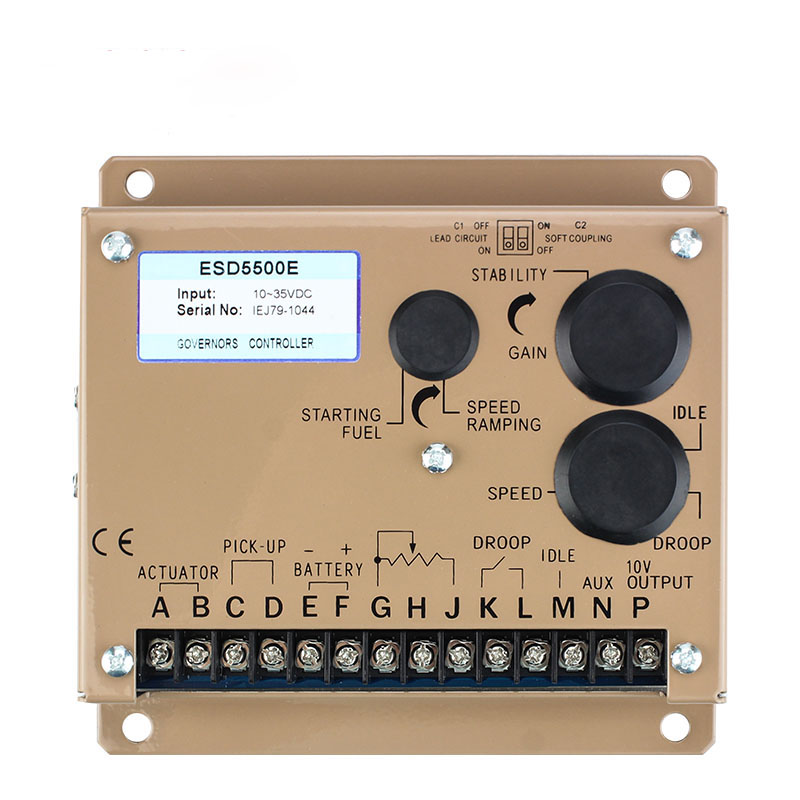

The PER5500E/5520ESeries speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.

*ESD5520E is designed for EFC series.

*Isochronous Operation/Steady Stability---- +/-0.25% or better

*Supply----12 or 24 VDC Battery Systems(transient&reverse voltage protected)

*Power Consumption----50 ma continuous plus acutator current

*Maximum Actuator Current at 25celsius (77celsius F)----10 Amps continuous

Input	Supply	12 or 24 VDC Battery System (Transient and Reverse Voltage)
	Polarity	Negative Ground (Case Isolated)
	Power Consumption	50 ma continuous plus actuator current
	Actuator Current Range @ 25 Deg. C - (Inductive Load)	Min.2.5 Amps; Max. 10Amps continuous
	Speed Sensor Signal	0.5-120 Volts RMS
Performance	Isochronous Operation/Steady State Stability	±0.25% or better
	Speed Range/Governor	1K to 7.5K Hz continuous
	Speed Drift with Temperature	±1 Max
	Idle Adjust CW	60% of set speed
	Idle Adjust CCW	Less than 1200 Hz.
	Droop Range	1-5% regulation
	Droop Adj. Max. (K-L Jumpered)	400 Hz., ±75Hz. Per 1.0A change
	Droop Adj. Min. (K-L Jumpered)	15Hz., ±6Hz. Per 1.0A change
	Speed Trim Range	±200 Hz
	Remote Variable Speed Range	500 - 7.5 Hz. Or any part there of
	Terminal Sensitivity J	100 Hz., ± 15Hz / Volt @ 5.0 K Impedance
	Terminal Sensitivity L	735 Hz., ±60 Hz / Volt @ 65 K Impedance
	Terminal Sensitivity N	148 Hz., ±10 Hz / Volt @ 1 Meg. Impedance
	Terminal Sensitivity P	10 VDC Supply @ 20 ma Max
Environmental	Ambient Operating Temperature Range	-40 to +85 Deg. C
	Relative Humidity	Up to 95%
	All Surface Finishes	Fungus Proof and Corrosion Resitant
Reliability	Vibration	1G at 20 to 100 Hz.
Reliability	Testing	100% Functionally Tested
Physical	Dimensions	See outline (FIGURE 1)
	Weigh1	1.2 lbs.(545 grams)
	Mounting	Any position, Vertical Preferred
