Generator Speed Control Unit S6700H controller

Generator Speed Control Unit S6700H controller

$70.00

≥100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	10000 pcs per month
Supply Ability:	10000 pcs per month
Payment Type:	T/T
Incoterm:	FOB
Certificate:	ISO9001
HS Code:	84799090.90
Transportation:	Ocean,Air
Port:	shanghai

Product Description

Electronic Automatic Speed Controller,Engine Speed Governor,Generator Speed Control Unit,Dc Speed Electric Motor Controller

How to control the speed of the motor, the solution:
Now the frequency conversion method is widely used, through the frequency converter to change the motor running frequency and change the motor speed.
The frequency of the frequency converter can be set at will, different output frequency motor will have different speed.
In addition, DC motor, reduce voltage, AC motor, reduce AC frequency., Stepper motor, modify the stepper signal can achieve the effect of controlling motor speed.

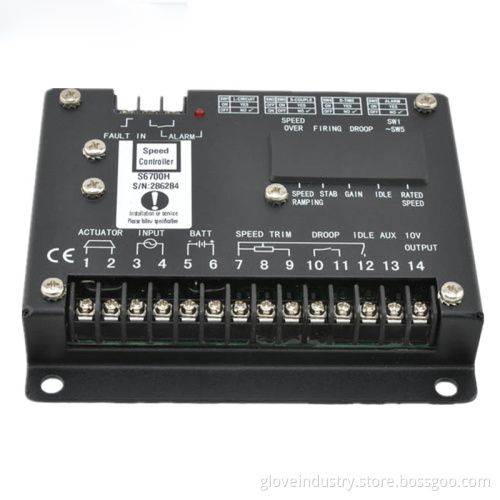

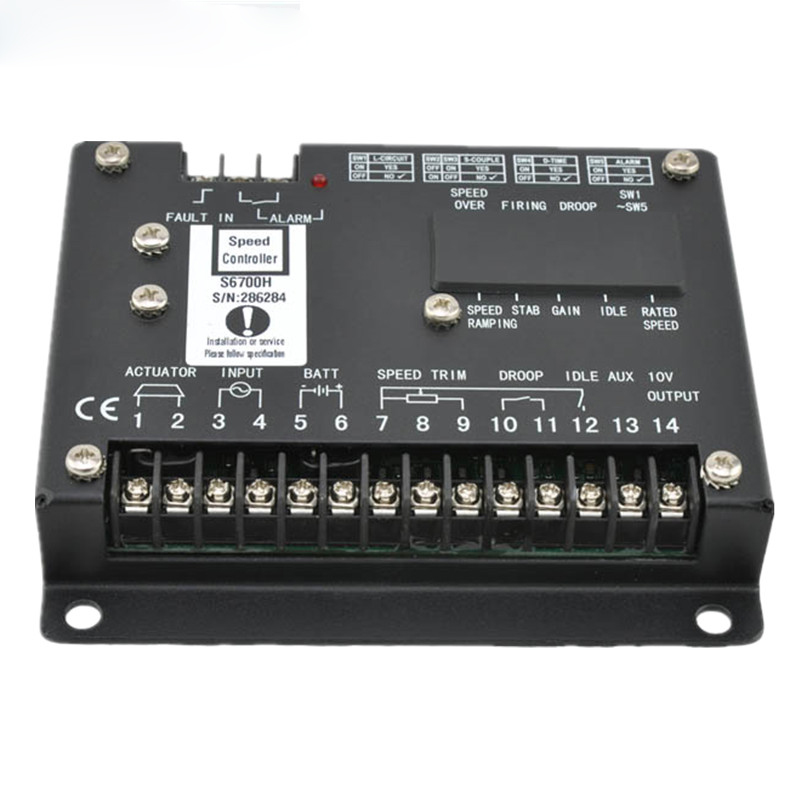

Generator Speed Control Unit S6700H

Speed Controller 6700H

6700H is PID adjustment design. It can instant and accurately reaction to the transient change of the loading then to make the engine speed in stable situation. It can perfectly control the engine speed by connected to the EFC series Electronic Acuator and Speed Sensor.

High Quality Performance

1,Operational amplifier from Brand ST made in Italy

2,Output power device from Brand IR made in USA

3, Input anti-interference

4, poentiometers from Brand BORUNS made in USA

Electronic Speed Governor S6700H
Speed stablity	Better than ±0.25%
Speed range	1Khz ~ 7.5Khz
Thermostablity	Max ±1%
Idle adjustment	160 ± 20Hz ~ Rated speed 95%
Power input
Voltage	12V DC 24V DC
Output	50mA
Signal of speed sensor	0.5 ~ 120V RMS
