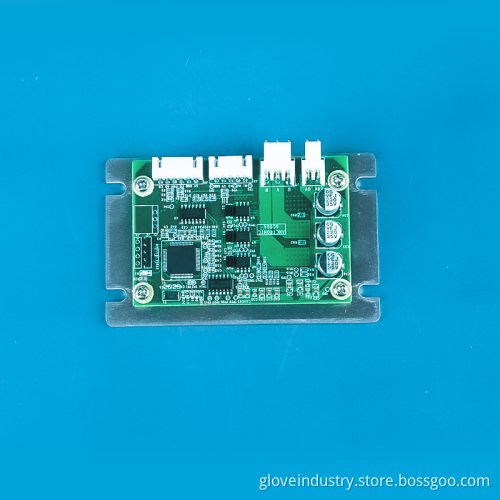

Economic Dc Speed Electric Motor Controller For Brushless

Product Model

AC01-10A-1

Brand

ANCTRONIC

Product SPEC

AC01A-24V-240W

Peak Power

240W

Part Name

Motor Driver

Rated Voltage

24V

Work Temp.

-20℃-60℃

Voltage Range

14-28V

Humidity

≤85%RH

max.Continuous Current

10A

Current limit

12A

max. Peak Current

20A

FG Speed Feedback

5V speed pulse output between FG port and the GROUND, one pulse per rotation.

Commutation Mode

Hall-less Commutation

PWM Speed Regulating

PWM frequency 200Hz, can be adjusted between 10%-90%, accordingly motor speed from low to high, less than PWM 10% then stop.

Lock-rotor Protection

Y

Size

w/ Casing:96.0*59.52*24.85(mm)

w/o Casing :96.0*63.52*15.8(mm)

Start-up Diagnostic

Y

Mass

w/ Casing:96g (PCBA:27g)

w/o Casing:69g

Forward and reverse control

N

Casing Color

Silver

Speed Regulating

PWM(5V,200Hz)

VSP(0-5V)
