Automatic water bottle filling capping and labeling machine

Automatic water bottle filling capping and labeling machine

$32000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	10 sets per month
Supply Ability:	10 sets per month
Payment Type:	T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001
HS Code:	8422301090
Transportation:	Ocean
Port:	Shanghai

Product Description

Automatic Filling Line,Semi Automatic Filling Line,Liquid Filling Machine,Liquid Bottle Filling Machine

The working principle of the automatic quantitative filling machine is driven by the transmission machinery, so that each process link can coordinate the division of labor, and truly achieve the effect of linkage.
The transmission device drives the filling valve and the in and out bottle shifting wheel to rotate at an appropriate speed. The empty bottles transported through the chain channel are brought under the filling valve by the in bottle shifting wheel. After the corresponding filling valve detects the empty bottles, it starts to fill accurately and quantitatively. The filled bottles are brought out by the out bottle shifting wheel and sent to the chain channel for output.

Scope of application:

Suitable for filling & capping high/low viscosity product with small volume,toner, emulsion, nourishing
cream, shampoo etc, and also liquid in the food and pharmacy industries.

Feature:

1, It is suitable for filling and capping high/low viscosity products with low volume.

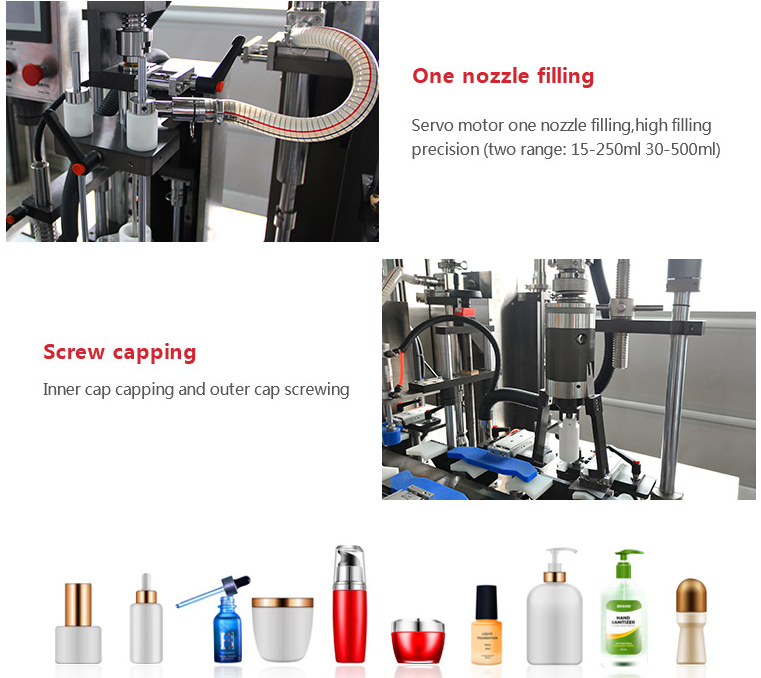

2, It adopts servo piston quantitive filling, with accurate filling.

3, It adopts double program filling, capping and outlet. (double heads)

4, The filling part is easy to assemble and disassemble, with easy adjustment. It only takes about 20 minutes to change the parts.

5, It is suitable for any spiral type cap, with adjustable capping system.6,Adopts sanitary stainless steel, clean and sanitary.

Technical Parameters

1. Capacity: 40-45 bottles per minute

2. Material: Stainless steel304&316

3. Usage: filling for lotion,cream, shampoo,liquid soap,toner,conditioner, etc

4. Filling volume: 15-250ml

5. Function: automatic air cleaning, filling, collaring and screw capping

6. Filling accuracy: ±1%

7. Filling nozzle: 2 pcs

8. Air Pressure: 0.5MPA

No	Name	Specification
1	Filling Range:	5-250ml
2	Filling Speed:	20-30 bottles per minute
3	Air Cleaning:	Static elimination air cleaning, vacuum suction
4	Nozzles Lifting:	Controlled Cylinder
5	Filling System:	Panasonic Motor
6	Capping System:	Panasonic Motor
7	Finished Production Output:	SMC Manipulator Clamping Type
8	Hopper:	40L (can be customized)
9	Air Pressure:	0.5Mpa, 150L/min dried air
10	Voltage: 220V	Can be customized
