Airtac Type SDAD Double Rod Compact Cylinder

Airtac Type SDAD Double Rod Compact Cylinder

$28.00

≥100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: shanghai, ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	10000 pcs per month
Supply Ability:	10000 per month
Payment Type:	T/T
Incoterm:	CFR,FOB,CIF
Certificate:	ISO9001
HS Code:	8412310090
Transportation:	Ocean,Air,Express
Port:	shanghai,ningbo

Product Description

Air Cylinder, Pneumatic Cylinder, double acting cylinder, single acting cylinder, rodless cylinder

1. Application fields of cylinder: printing (tension control), semiconductor (spot welding machine, chip grinding), automatic control, robot, etc.
2. Cylinder structure: the cylinder is composed of cylinder barrel, end cover, piston, piston rod and seal. The connection methods of cylinder and end cover are mainly as follows: integral type, riveting type, threaded connection type, flange type and pull rod type.
3. Cylinder is divided into single acting type, double acting type, Rodless type, diaphragm type, air bag type, impact type, locking type, guiding type, short running type, swinging type, finger type, combined type, etc. according to its structure, function and shape, there are many kinds of cylinder.

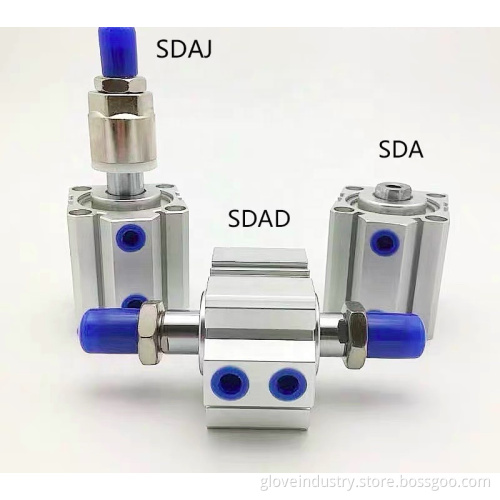

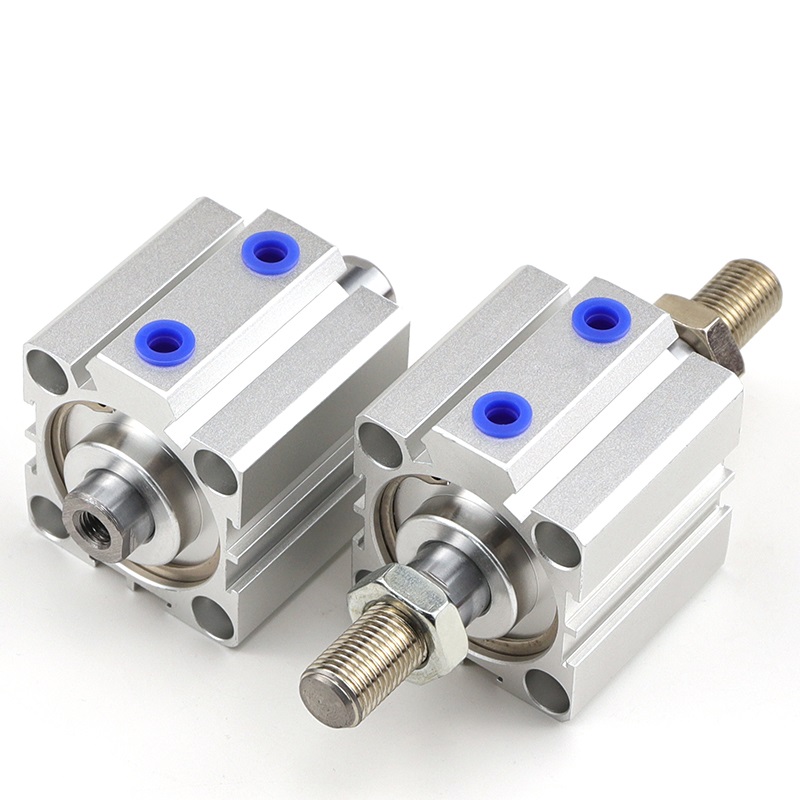

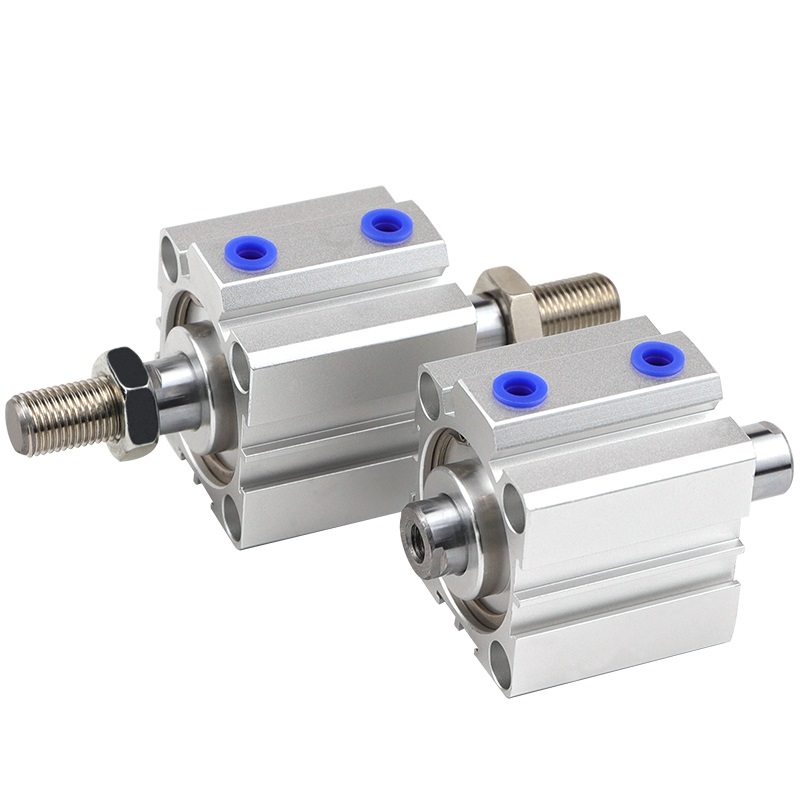

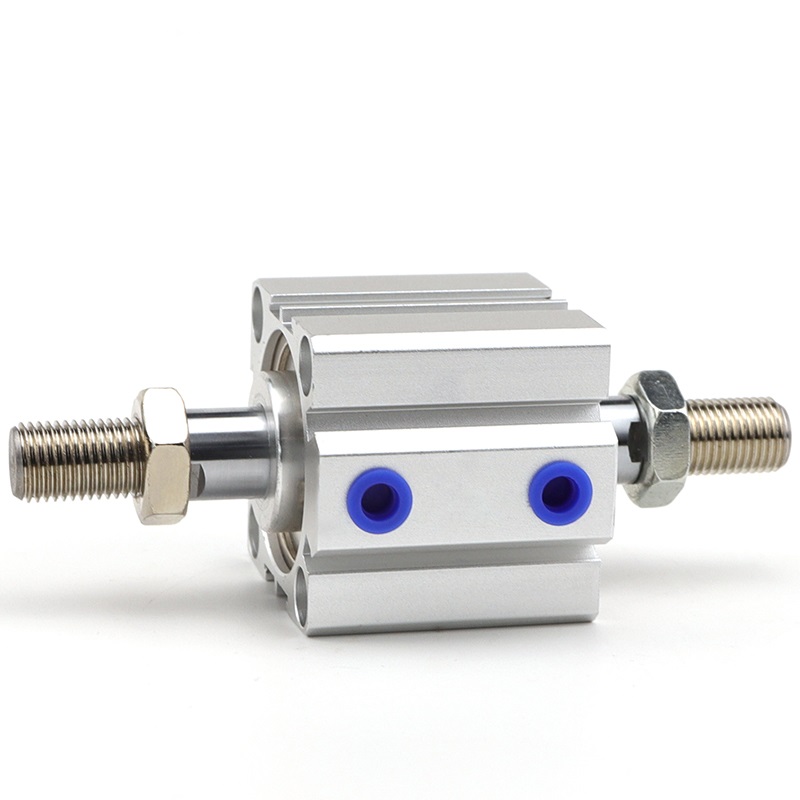

Airtac Type SDAD32X5X10X15X20X25X30X35X40X45X50 Double Rod Compact Cylinder

Features:

1.SDAD compact cylinder.

2.Equivalent to AIRTAC SDA Series Magnetic Pneumatic Cylidners , with the same appearance.

3.Compact design.

4.Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.

5.Double acting, Single/Double rod

6.Single acting, Single rod, Spring return/extend.

7.Rubber bumper is standard.

8.Built-in magnet is optional.

9.Cylinder kits, barrel, piston is available.

SDAD cylinder drawing

Specification:

Bore size (mm)		12	16	20	25	32	40	50	63	80	100
Fluid		Air
Action	SDA/SDAD/SDAJ	Double acting, Single/Double rod
	SSA/STA	Single acting, Single rod, Spring return/extend								-
Minimum operating pressure	Double Acting	0.1 MPa
	Single Acting	0.2 MPa								-
Maximum operating pressure		1.0 MPa
Proof pressure		1.5 MPa
Ambient and fluid temperature		-20 to 80°C (No freezing)
Cushion		Rubber bumper
Lubrication		Non-lube
Piston rod dia.		6 mm		8 mm	10 mm	12 mm	16 mm	20 mm		25 mm	32 mm
Rod end thread	Female	M3×0.5		M4×0.7	M5×0.8	M6×1.0	M8×1.25	M10×1.5		M14×1.5	M18×1.5
	Male	M5×0.8		M6×1.0	M8×1.25	M10×1.5	M14×1.5	M18×1.5		M22×1.5	M26×1.8
Port size		M5×0.8				1/8		1/4		3/8

Main Material:

No.	Description	Material	Note
1	Cylinder barrel	Aluminium alloy	Hard anodized
2	Piston rod	High-alloy steel	Hard chrome plated
3	Rod cover	Aluminum alloy	Clear anodized
4	End cover	Aluminum alloy	Clear anodized
5	Piston	Aluminum alloy	Chromated
6	Seal	NBR	-
