MXS Slide table pneumatic cylinder linear cylinder

MXS Slide table pneumatic cylinder linear cylinder

$5.00

≥100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: shanghai, ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	10000 pcs per month
Supply Ability:	10000 per month
Payment Type:	T/T
Incoterm:	CFR,FOB,CIF
Certificate:	ISO9001
HS Code:	8412310090
Transportation:	Ocean,Air,Express
Port:	shanghai,ningbo

Product Description

Air Cylinder, Pneumatic Cylinder, double acting cylinder, single acting cylinder, rodless cylinder

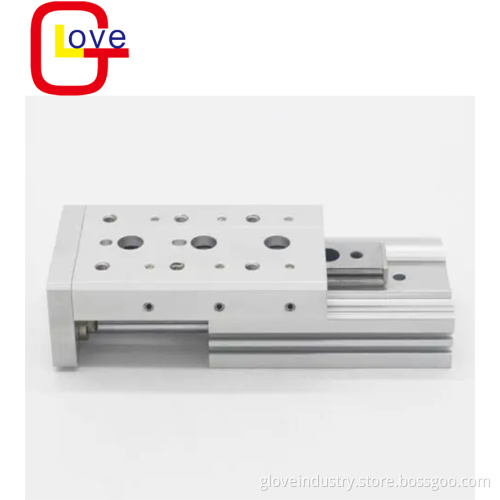

MXS Slide table pneumatic cylinder linear cylinder

Caution

1.Do not apply a load over theoperating limit range. Select the model considering max. allowable load and allowable moment.Refer to p.3.16-10 and 3.16-11 for thedetails. When actuator is used outsideof operating limits, eccentric loads onguide will be in excess this causing vibration on guide and inaccuracy, andshortens life. 2.lf intermediate stops by externalstopper is done, avoid ejection. If ejection occurs, it may causedamage. In case the slid table is stopped at intermediate positions by anexternal stopper then forwarded to thefront, return the slide table to the backfor just a moment to retract the stopper,then supply pressure to the oppositeport to operate slide table. 3.Do not apply excessive forcesand impacts. This will cause problems and possiblefailure

Various options

Adjuster options . With stroke adjuster, With shock absorber. Functional options . With buffer mechanism, With end lock. Axial piping

Standard Stroke

Model		Sandard Stroke(mm)
MXS 16		10, 20, 30, 40 , 50, 75, 100, 125
MXS 20		10, 20, 30, 40 , 50, 75, 100, 125, 150
MXS 25		10, 20, 30, 40 , 50, 75, 100

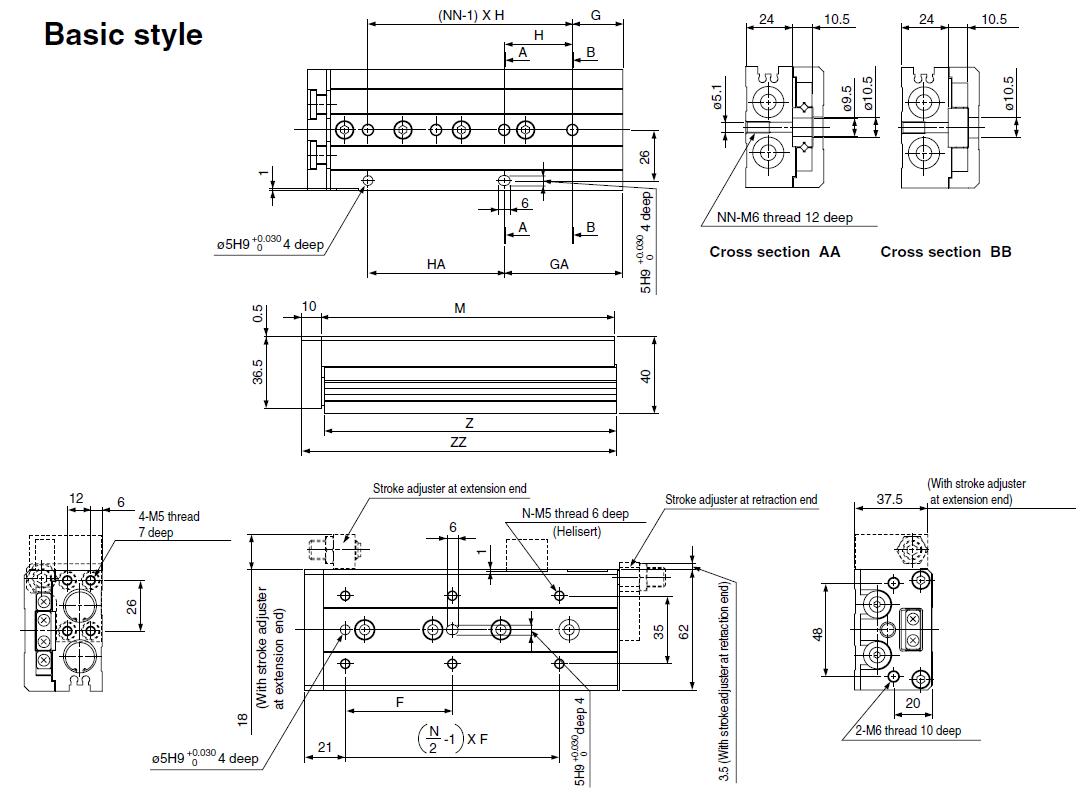

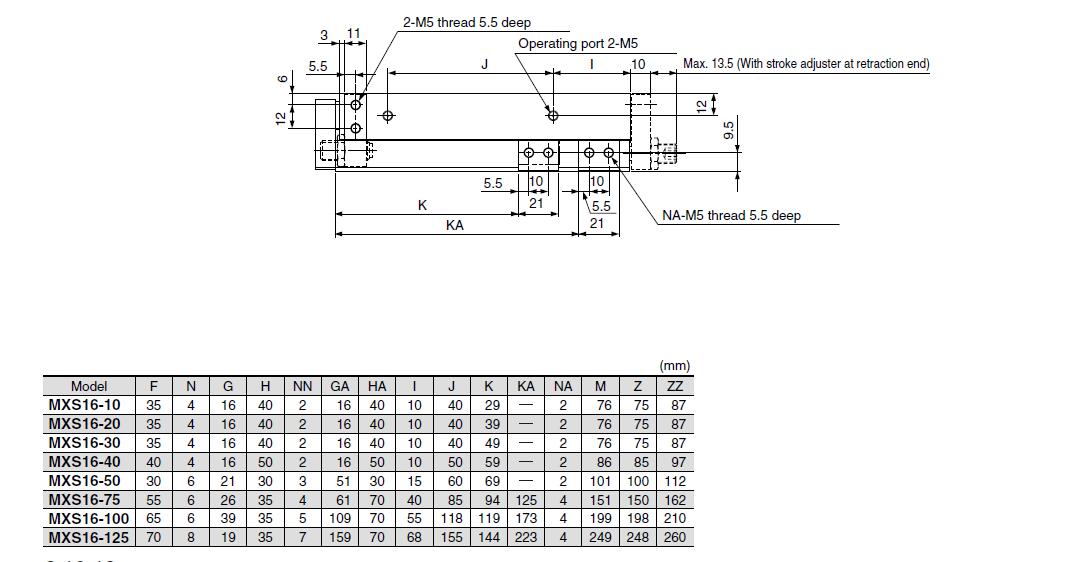

Dimensions

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Products Show
