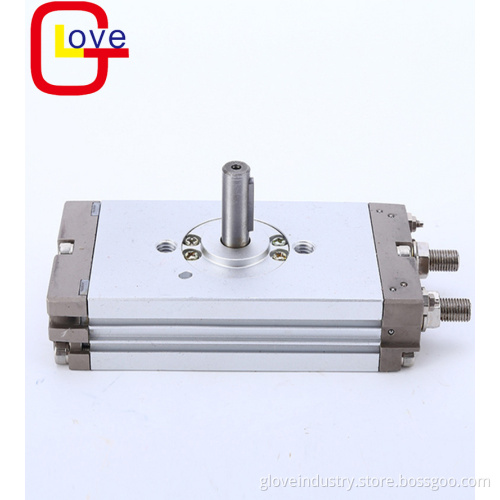

CRQ2 Series Compact Rotary Actuator Air Cylinder Pneumatic

CRQ2 Series Compact Rotary Actuator Air Cylinder Pneumatic

$5.00

≥100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: shanghai, ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	10000 pcs per month
Supply Ability:	10000 per month
Payment Type:	T/T
Incoterm:	CFR,FOB,CIF
Certificate:	ISO9001
HS Code:	8412310090
Transportation:	Ocean,Air,Express
Port:	shanghai,ningbo

Product Description

Air Cylinder, Pneumatic Cylinder, double acting cylinder, single acting cylinder, rodless cylinder

1. Application fields of cylinder: printing (tension control), semiconductor (spot welding machine, chip grinding), automatic control, robot, etc.
2. Cylinder structure: the cylinder is composed of cylinder barrel, end cover, piston, piston rod and seal. The connection methods of cylinder and end cover are mainly as follows: integral type, riveting type, threaded connection type, flange type and pull rod type.
3. Cylinder is divided into single acting type, double acting type, Rodless type, diaphragm type, air bag type, impact type, locking type, guiding type, short running type, swinging type, finger type, combined type, etc. according to its structure, function and shape, there are many kinds of cylinder.

Details Images

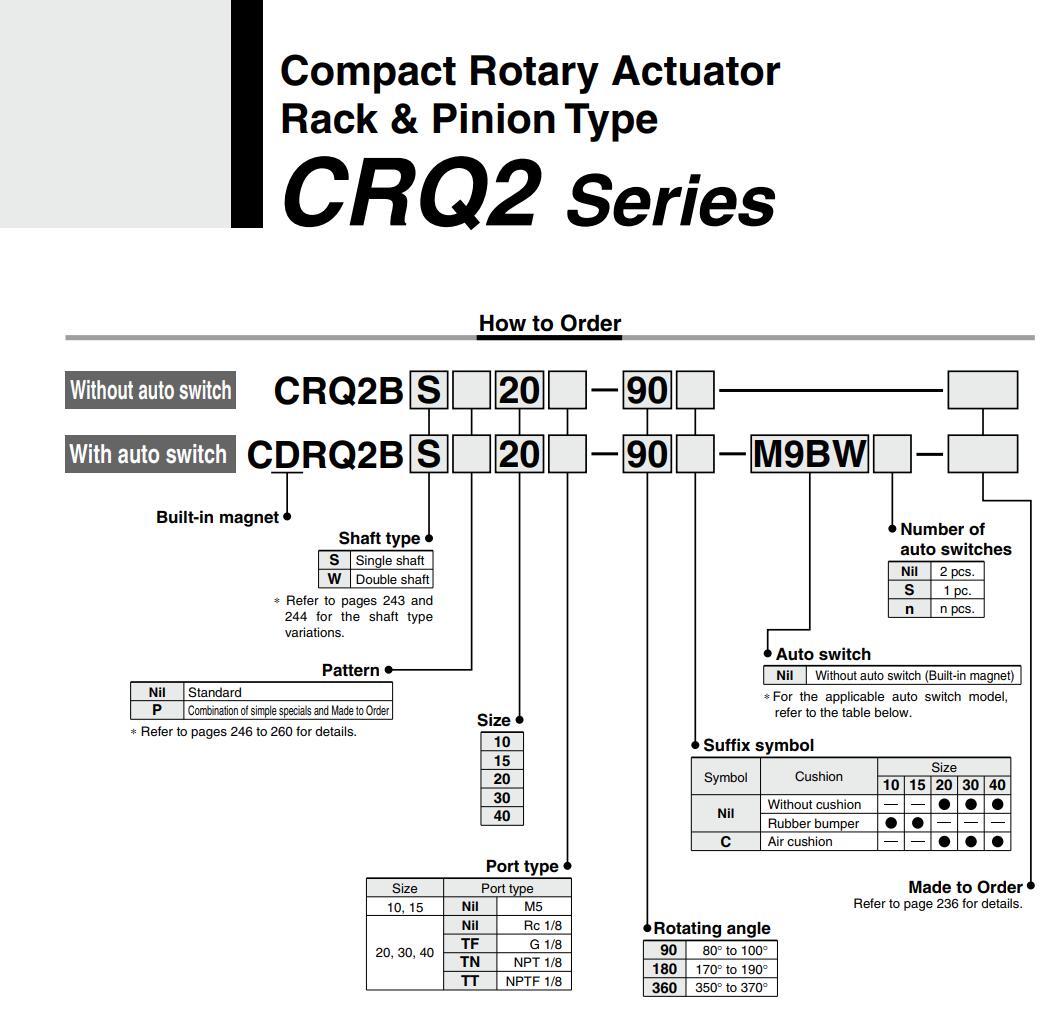

Type	CRQ2 Series Compact Rotary Actuator 90 180 360 Degree Air Cylinder Pneumatic CDRQ2BS
Condition	New
Warranty	1 Year
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
After Warranty Service	Video technical support, Online support
Local Service Location	None
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	Bearing
Standard or Nonstandard	Standard
Structure	Rotary Cylinder Series Cylinder
Power	Pneumatic
Body Material	Aluminum Alloy
Place of Origin	China
Brand Name	HOEN Pneumatic
1Bore size	10/15/20/30/40mm
Fluid	Air
PROOF PRESSURE	0.5Mpa
Ambient and fluid temperature	0 to 60℃
Angle Adjustment Range	Rotation end +-5degree
Cushion	Rubber bumper
