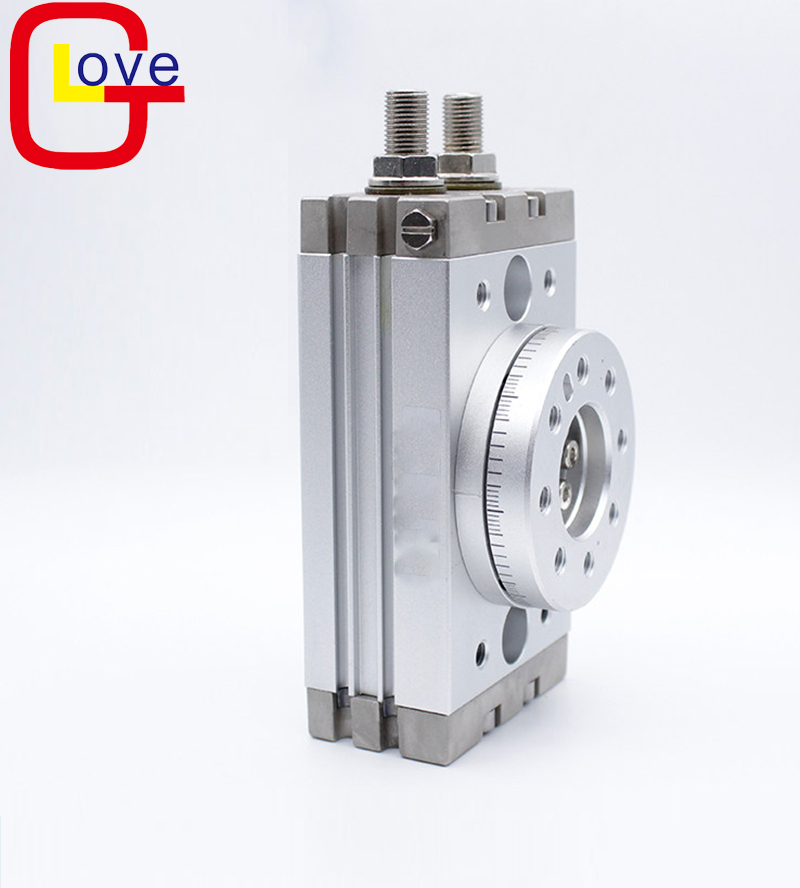

Pneumatic HRQ Series Rotary Table Cylinder

Pneumatic HRQ Series Rotary Table Cylinder

$5.00

≥100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	10000 pcs per month
Supply Ability:	10000 per month
Certificate:	ISO9001
HS Code:	8412310090
Transportation:	Ocean,Air,Express
Port:	Shanghai,Ningbo

Product Description

HRQ MSQB10A MSQB20A MSQB30A MSQB50A Rotary Pneumatic Cylinder MSQB50R 90 degree 180 degree MSQB10R MSQB20R MSQB30R 50R

1. Easy mounting of workpiece.

2. Large rolling element bearing.

3. Pivoting angle adjustment range: 0 to 190℃.

4. Easy mounting of body.

5. Movement in direction of table's radial thrust: 0.01mm or less.

6. Piping from 2 directions (front and side) is possible.

Air Cylinder, Pneumatic Cylinder, double acting cylinder, single acting cylinder, rodless cylinder

1. Application fields of cylinder: printing (tension control), semiconductor (spot welding machine, chip grinding), automatic control, robot, etc.
2. Cylinder structure: the cylinder is composed of cylinder barrel, end cover, piston, piston rod and seal. The connection methods of cylinder and end cover are mainly as follows: integral type, riveting type, threaded connection type, flange type and pull rod type.
3. Cylinder is divided into single acting type, double acting type, Rodless type, diaphragm type, air bag type, impact type, locking type, guiding type, short running type, swinging type, finger type, combined type, etc. according to its structure, function and shape, there are many kinds of cylinder.

MSQB HRQ Series 90/180 Degrees 10-200mm Bore Adjustable Angle Rack And Pinion Pneumatic Rotary Cylinder

Product's Feature

Bore(mm)		10	20	30	50	70	100	200
Working medium		Clean air(40μm Filteration)
Working pressure range		With adjustable angle screw:0.1~1.0Mpa,With shock absorber:0.1~0.6Mpa
Cushion type		Cushion rubber cushion(Standard) / Shock absorber(Optional)
Allowed power	With adjustable angle screw	0.007J	0.025J	0.048J	0.081J	0.24J	0.32J	0.56J
	With shock absorber	0.039J	0.116J		0.294J	1.1J	1.6J	2.9J
Angle adjustable range		0~190°
Steady swing time range		A 0.2~1.0S/90°				0.2~1.5S/90°	0.2~2.0S/90°	0.2~2.5S/90°
		R 0.2~0.7S/90°				0.2~1.0S/90°
Piston diameter		Φ15	Φ18	Φ21	Φ25	Φ28	Φ32	Φ40
Port size		M5X0.8		G1/8
