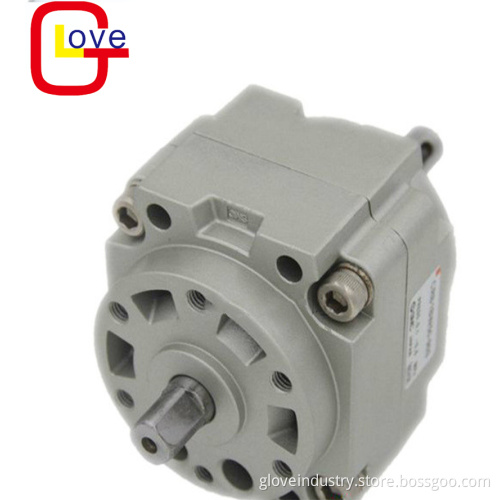

CRB1 Series Rotary Actuator Vane Type pneumatic cylinder

CRB1 Series Rotary Actuator Vane Type pneumatic cylinder

CRB1 Series Rotary Actuator/Vane Typetor

Features:

1.CRB1BW series rotary Rotary Actuators .

2.Equivalent to SMC series rotary Rotary Actuators , with the same appearance.

3.Bore size(mm): 50MM, 63MM, 80MM, 100MM

4.Excellent reliability and durability.The use of bearings to support, thrust and radial loads improves reliability and durability.

5.The body of the rotary actuator can be mounted directly.

6.Two different port locations (side and axial) are available.

7.A wide variety of types and broad size variations.

 SMC CRB1 series 90 ° Double action pneumatic rotary actuator, 50mm aperture, 1MPa maximum input, 1MPa maximum output, rubber shock absorber buffer, R 1 / 8 port connection

Air Cylinder, Pneumatic Cylinder, double acting cylinder, single acting cylinder, rodless cylinder

1. Application fields of cylinder: printing (tension control), semiconductor (spot welding machine, chip grinding), automatic control, robot, etc.
2. Cylinder structure: the cylinder is composed of cylinder barrel, end cover, piston, piston rod and seal. The connection methods of cylinder and end cover are mainly as follows: integral type, riveting type, threaded connection type, flange type and pull rod type.
3. Cylinder is divided into single acting type, double acting type, Rodless type, diaphragm type, air bag type, impact type, locking type, guiding type, short running type, swinging type, finger type, combined type, etc. according to its structure, function and shape, there are many kinds of cylinder.

Specification:
