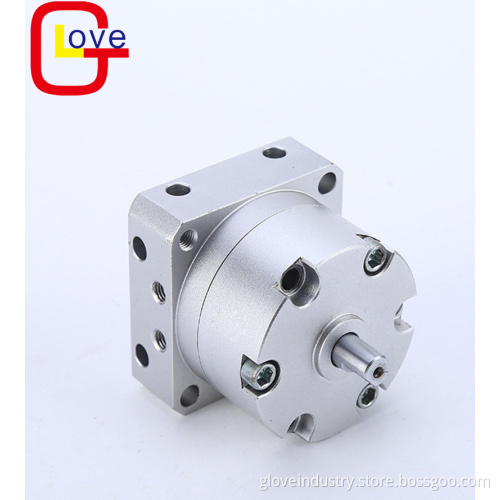

CRBU2 Rotary Actuator Vane Type Free Mount Cylinder

CRBU2 Rotary Actuator Vane Type Free Mount Cylinder

$5.00

≥100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: shanghai, ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	10000 pcs per month
Supply Ability:	10000 per month
Payment Type:	T/T
Incoterm:	CFR,FOB,CIF
Certificate:	ISO9001
HS Code:	8412310090
Transportation:	Ocean,Air,Express
Port:	shanghai,ningbo

Product Description

CRBU2 Rotary Actuator Vane Type Free Mount Cylinder

Supply Ability

Supply Ability10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details1pcs/innerboxPortNingbo PortPicture Example:

Lead Time:

Quantity(Pieces)	1 - 100	>100
Est. Time(days)	7	To be negotiated

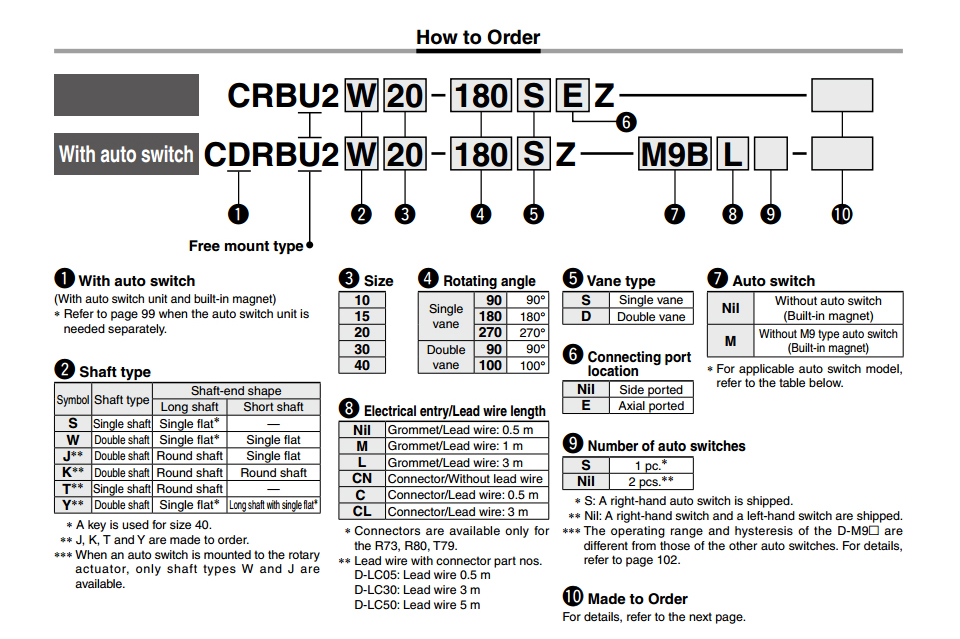

CRBU2 CDRBU2W Rotary Actuator /Vane Type Free Mount Type Cylinder CRBU2W/CDRBU2W10/15/20/30/40-90SZ/180SZ

Product Description

Size		10	15	20	30	40
Rotating angle		90°, 180°, 270°
Fluid		Air (Non-lube)
Proof pressure [MPa]		1.05			1.5
Ambient and fluid temperature		5 to 60°C
Max. operating pressure [MPa]		0.7			1
Min. operating pressure [MPa]		0.2	0.15
Rotation time adjustment range s/90°		0.03 to 0.3			0.04 to 0.3	0.07 to 0.5
Allowable kinetic energy [J]		0.00015	0.001	0.003	0.02	0.04
			0.00025	0.0004	0.015	0.03
Shaft load [N]	Allowable radial load	15	15	25	30	60
	Allowable thrust load	10	10	20	25	40

Features:

1. It is possible to move the auto switch mounting position as desired.
2. Direct mounting
3. Connection port position: Select from side ported or axial ported
(When a switch and angle adjuster are installed, only the side
ported is selectable.)
4. Low-pressure operation: 0.2 MPa (Size 10), 0.15 MPa (Sizes 15 to 40)
5. It is possible to adjust the angle as desired.

6. With auto switch
