CRB2 small pneumatic lift cylinder compact cylinder

CRB2 small pneumatic lift cylinder compact cylinder

Category: vane type rotary cylinder

Air Cylinder, Pneumatic Cylinder, double acting cylinder, single acting cylinder, rodless cylinder
Series: CrB2 series

Cylinder diameter: 10mm, 15mm, 20mm, 30mm, 40mm

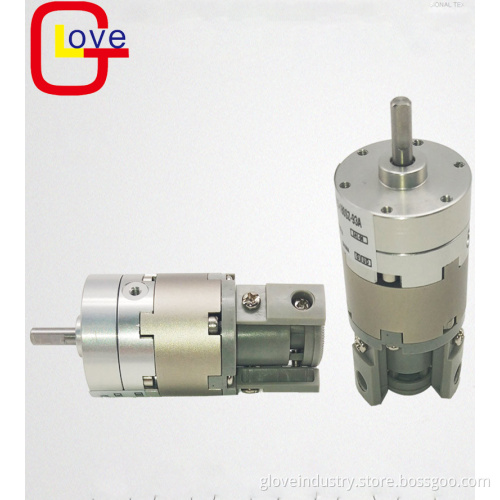

SMC blade type rotary cylinder CrB2 series

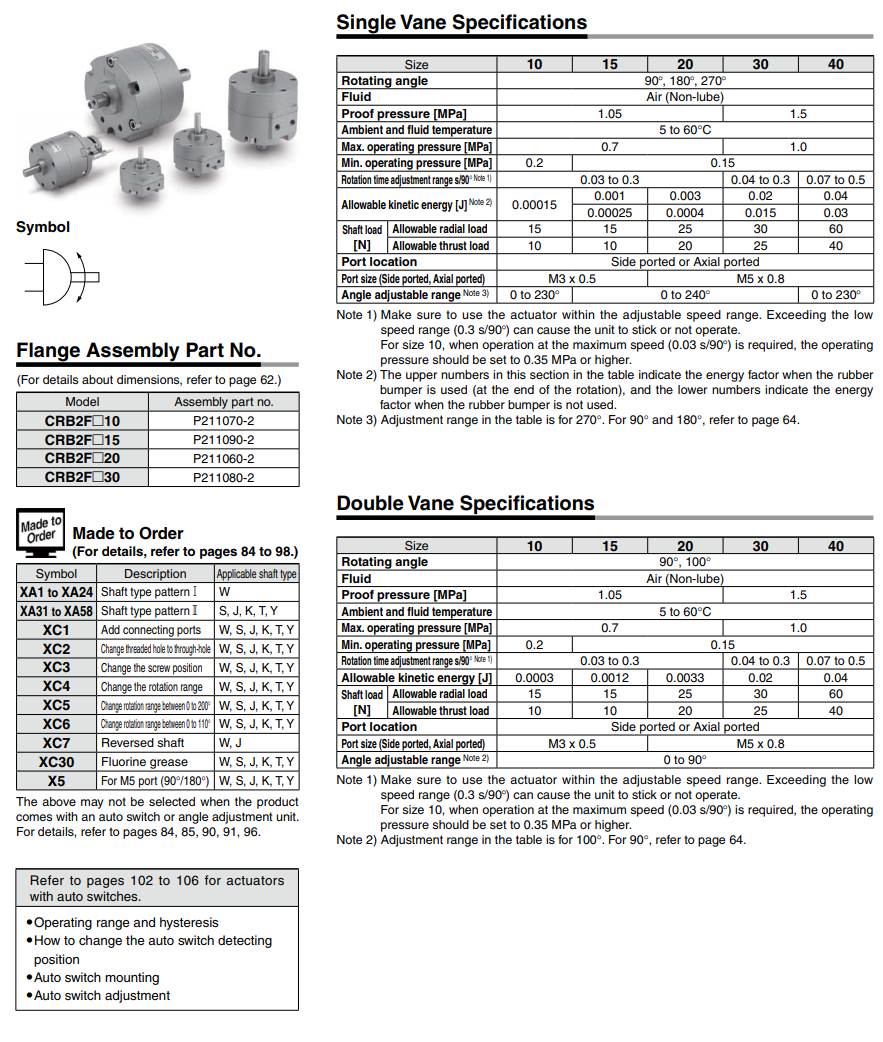

Product specification:

Cylinder diameter: 10mm, 15mm, 20mm, 30mm, 40mm

Using fluids: air

High service pressure of Zui: 0.7MPa, 1.0MPa

Low service pressure of Zui: 0.2MPa, 0.15Mpa

Ambient and fluid temperature: 5 to 60 degrees (unfreeze)

Adjustable range of speed (s/90 degree): 0.03 to 0.3; 0.04 to 0.3; 0.07 to 0.5

Connection thread: m3 * 0.5; M5*0.8

The Zui adjustment angle of the angle adjustment unit for size 10-40 is 230 degrees.

The position of the pipe hole is all on the side of the body.

The allowable movement capacity is the same as that of single product of rotary cylinder.

When adjusting unit with angle, if 90 degree or 180 degree adjustment is required, order a rotary cylinder for 270 degrees.

SMC blade type rotary cylinder CrB2 series

Product advantages:

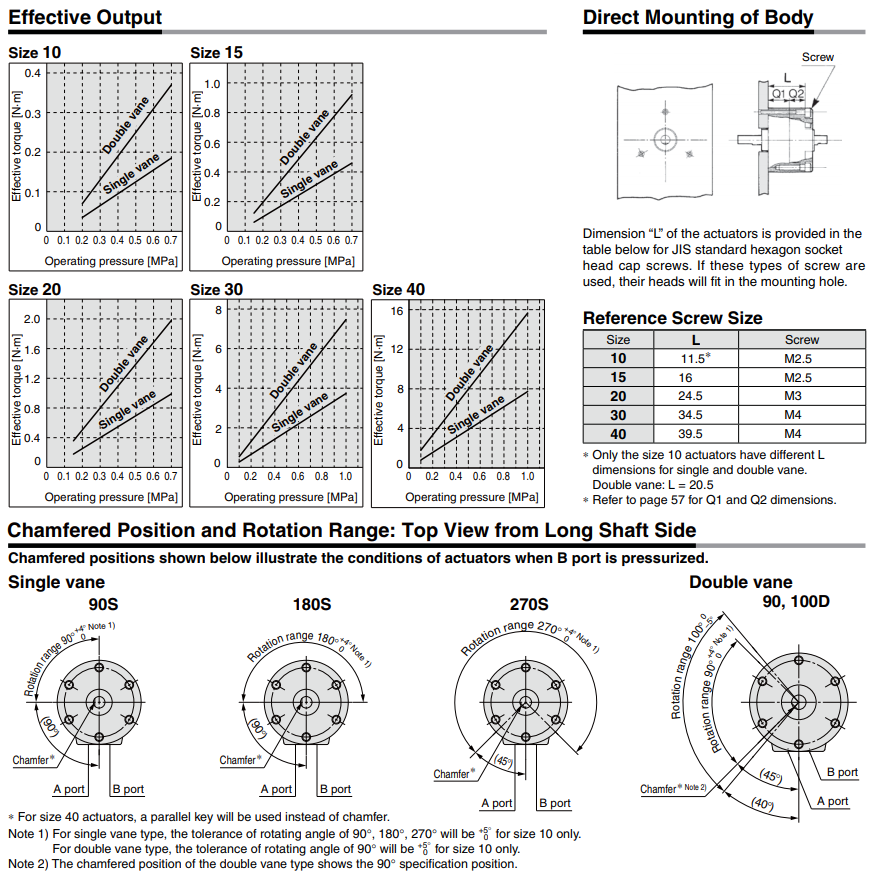

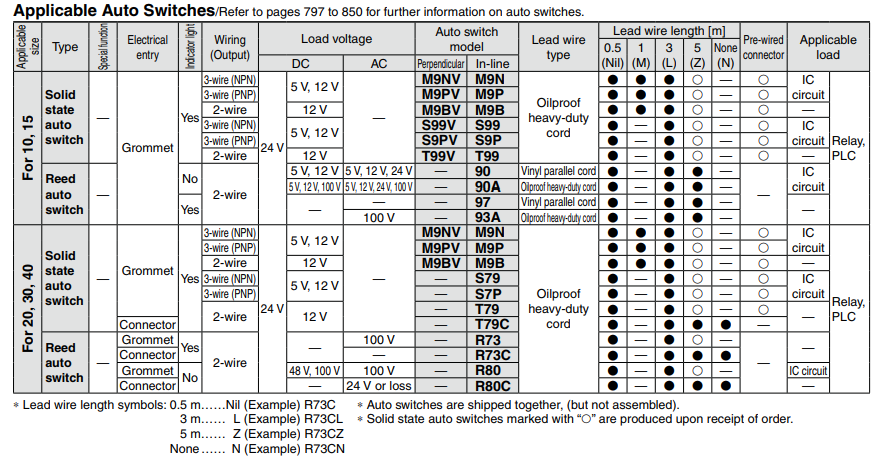

● magnetic switch can be installed at any position

● can be installed directly

● interface position: there are two types of piping direction: side and axial direction of cylinder block

(only the side of the cylinder block can be selected for the piping direction with magnetic switch and angle adjustment)

● low service pressure of Zui: 0.2MPa (cylinder diameter 10) 0.15Mpa (cylinder diameter 15-40)

● adjustable to any angle with angle adjustment
