Double Acting Air Pneumatic Two Fingers Gripper Cylinder

Double Acting Air Pneumatic Two Fingers Gripper Cylinder

$5.00

≥100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: shanghai, ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Productivity:	10000 pcs per month
Supply Ability:	10000 per month
Payment Type:	T/T
Incoterm:	CFR,FOB,CIF
Certificate:	ISO9001
HS Code:	8412310090
Transportation:	Ocean,Air,Express
Port:	shanghai,ningbo

Product Description

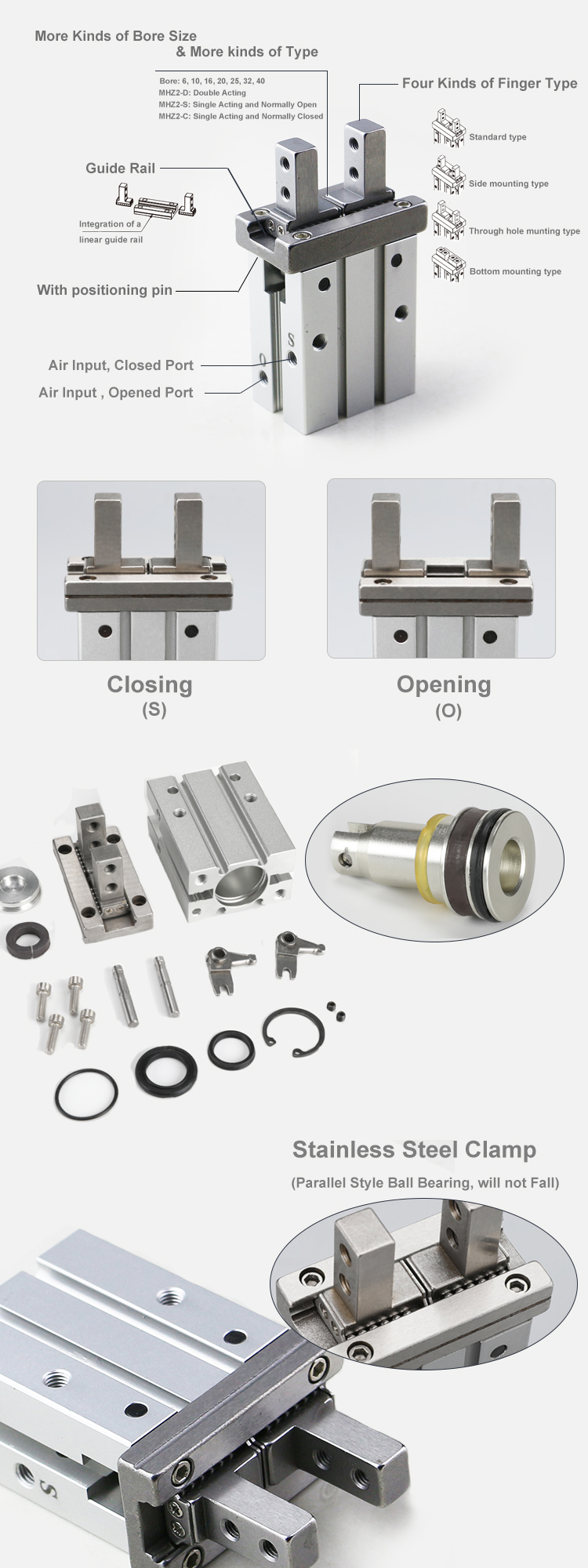

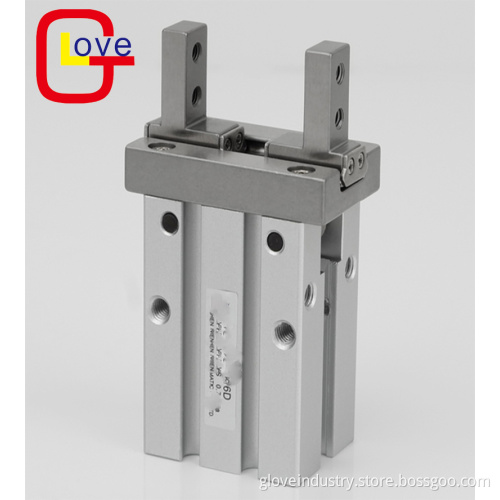

High quality MHZ2 series Parallel Style Air Gripper MHZ2-20D pneumatic gripper air cylinder

1.Classical design,durable ai control design

2.Engery saving and environmental protection with big low rate,safety and precision

3.Can work at the low pressure,smartness for on and off,good seal performance

4.Single action and double action types for your selection

5.Widely used in the food,machin,industry,abstersion,lanification,printing and other area

We Mainly do solenoid valve ,pneumatic valve, air treatment units, air Cylinder, quick connection fittins and PU tube .4V. 3V.2V.2p .solenoid valve ,and 4A.3A Pneumatic valve sell so hot in Asia, Europe,and Middle East.

Our products passed ISO9001:2008 and CE Quality Certification. Brand name is NMPC.

We have so many distributors and agent in mainland of China.

So popular in pneumatic and Hydraulic market. Our accessories taked from the same supplier as Airtac . O seal ring is Taiwan Xiehe,valve made by numerically controlled production center (CNC)

Air Cylinder, Pneumatic Cylinder, double acting cylinder, single acting cylinder, rodless cylinder

1. Application fields of cylinder: printing (tension control), semiconductor (spot welding machine, chip grinding), automatic control, robot, etc.

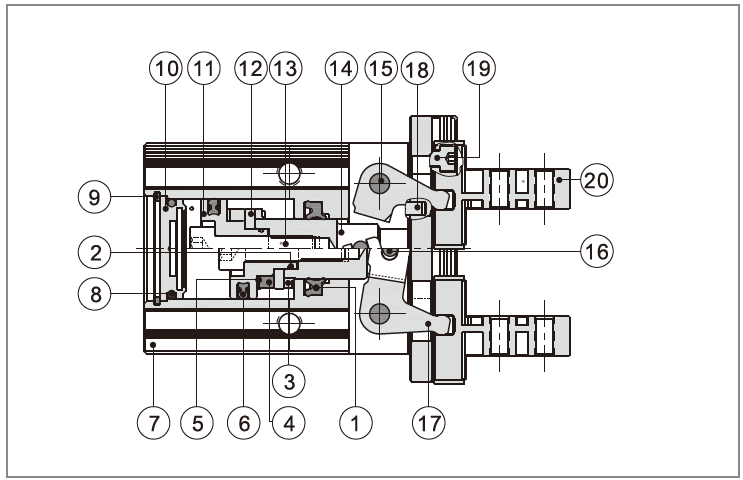

2. Cylinder structure: the cylinder is composed of cylinder barrel, end cover, piston, piston rod and seal. The connection methods of cylinder and end cover are mainly as follows: integral type, riveting type, threaded connection type, flange type and pull rod type.
3. Cylinder is divided into single acting type, double acting type, Rodless type, diaphragm type, air bag type, impact type, locking type, guiding type, short running type, swinging type, finger type, combined type, etc. according to its structure, function and shape, there are many kinds of cylinder.

Packaging & Delivery

Selling Units:Single itemSingle package size: 3.06X2.36X6.73 cmSingle gross weight:0.133 kgLead Time:

Quantity(Pieces)	1 - 1000	>1000
Est. Time(days)	15	To be negotiated

Product Description

Air Gripper Double Acting Air Ram Pneumatic Cylinder

Bore size(mm)	16
Ambient fluid temperature	-10-60℃
Repeatability(mm)	6-25(±0.01),32-40(±0.02)
The highest frequency of use(c.p.m)	6-25(180),32-40(60)
Lubrication	Not requied
Action type	Double acting
Auto switch(optional)	Solid state auto switch
