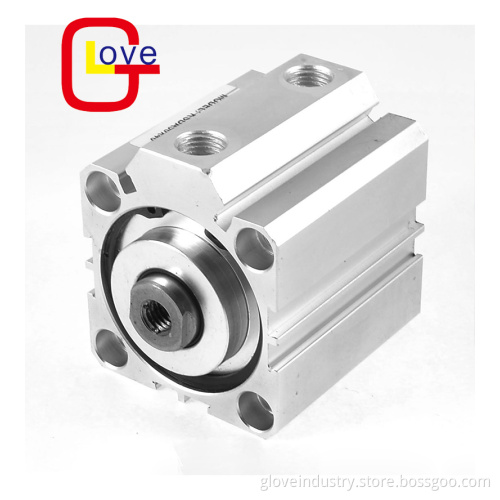

SDA series Compact Pneumatic Cylinder

Get Latest Price

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	jiangsu
Productivity:	10000 pcs per month
Supply Ability:	10000 pcs per month
Payment Type:	T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001
HS Code:	8412310090
Transportation:	Ocean,Air
Port:	Shanghai,Ningbo

Product Description

Our Services

1.We can supply SDA series compact thin type air cylinder.

1). Bore size(mm): 12,16,20,25,32,40,50,63,80,100

2). Stroke(mm): 5-100mm

2. We also can supply SDA series assembly kits, aluminum tubes and piston rod to all over the world clients.

3. In order to support our clients business, we also can send catalogues to them together with their orders.

Air Cylinder, Pneumatic Cylinder, double acting cylinder, single acting cylinder, rodless cylinder

1. Application fields of cylinder: printing (tension control), semiconductor (spot welding machine, chip grinding), automatic control, robot, etc.
2. Cylinder structure: the cylinder is composed of cylinder barrel, end cover, piston, piston rod and seal. The connection methods of cylinder and end cover are mainly as follows: integral type, riveting type, threaded connection type, flange type and pull rod type.
3. Cylinder is divided into single acting type, double acting type, Rodless type, diaphragm type, air bag type, impact type, locking type, guiding type, short running type, swinging type, finger type, combined type, etc. according to its structure, function and shape, there are many kinds of cylinder.

Packaging & Delivery

Packaging DetailsInternational packing, plywood case, carton,palletsPortNingbo portLead Time:

Quantity(Pieces)	1 - 100	>100
Est. Time(days)	5	To be negotiated

SDA series Compact Thin type Air Cylinder

Product Description

SDA series Compact Pneumatic Cylinder Wholesaler

Bore(mm)		12	16	20	25	32	40	50	63	80	100
Motion Pattern		Double Acting
		Single Action Extrusion type Single Action Drawing-in Type						-
Working Medium		Air
Operating Pressure Range	Double Action	0.1~0.9MPa
	Single Action	0.2~0.9MPa						-
Ensured Pressure Resistance		1.35MPa
Operating Temperature Range		-5~70℃
Operating Speed Range	Double Action	30~500mm/s						30~350mm/s		30~250mm/s
	Single Action	100~500mm/s						-
Buffer Type		Fixed Type Buffer
Port Size		M5X0.8				G1/8"		G1/4"		G3/8"
