Wood Cutting Alignment Laser Module Tutorial The cutting characteristics of wood are the same as those of acrylic board, and the slope of the cutting seam can be reduced by the correct setting of the focus point position. The relationship between the focus position and the slit width when cutting 20m thick Liulou wood. The upper slit width of the Wood Cutting Alignment Laser Module Unit is Wu, and the central slit width is Wmo. The lower slit width is the change of the view height relative to the focus position Z. The upper slit width of the Laser Diode Module has the largest change, and the lower slit width is the largest. The variation of the width W1 is relatively small. When the focus position is in the range of Z= +6 to +8, the difference between Wu, Wm, and W1 is small, and the amount of taper is also the smallest. Within this focus position range, the deviation of the Wood Cutting Alignment Laser Module Used slit width is within 0.3mm.

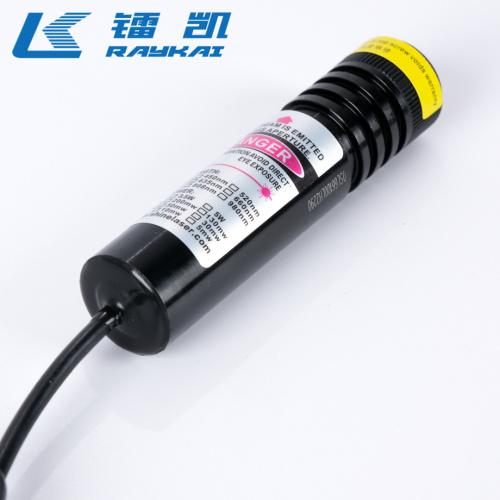

Model	DSL6325LH20120
Beam Shape	Line
Wavelength	635nm
Wavelength Error	±5nm
Laser Power	15mW 25mW
Fan angle	110°
Line Thickness	<1mm
Straightness	≤0.1%
Focusable	Yes
Working Distance	5-10m
Power Supply	12-24V
Drive Mode	CW/TTL
Protection	Anti-reverse, Anti-interference
Shell Material	Aluminum
Operation Temperature	-10~50℃
Dimension(D*L)	Φ20mm*120mm
Weight	140g

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.
